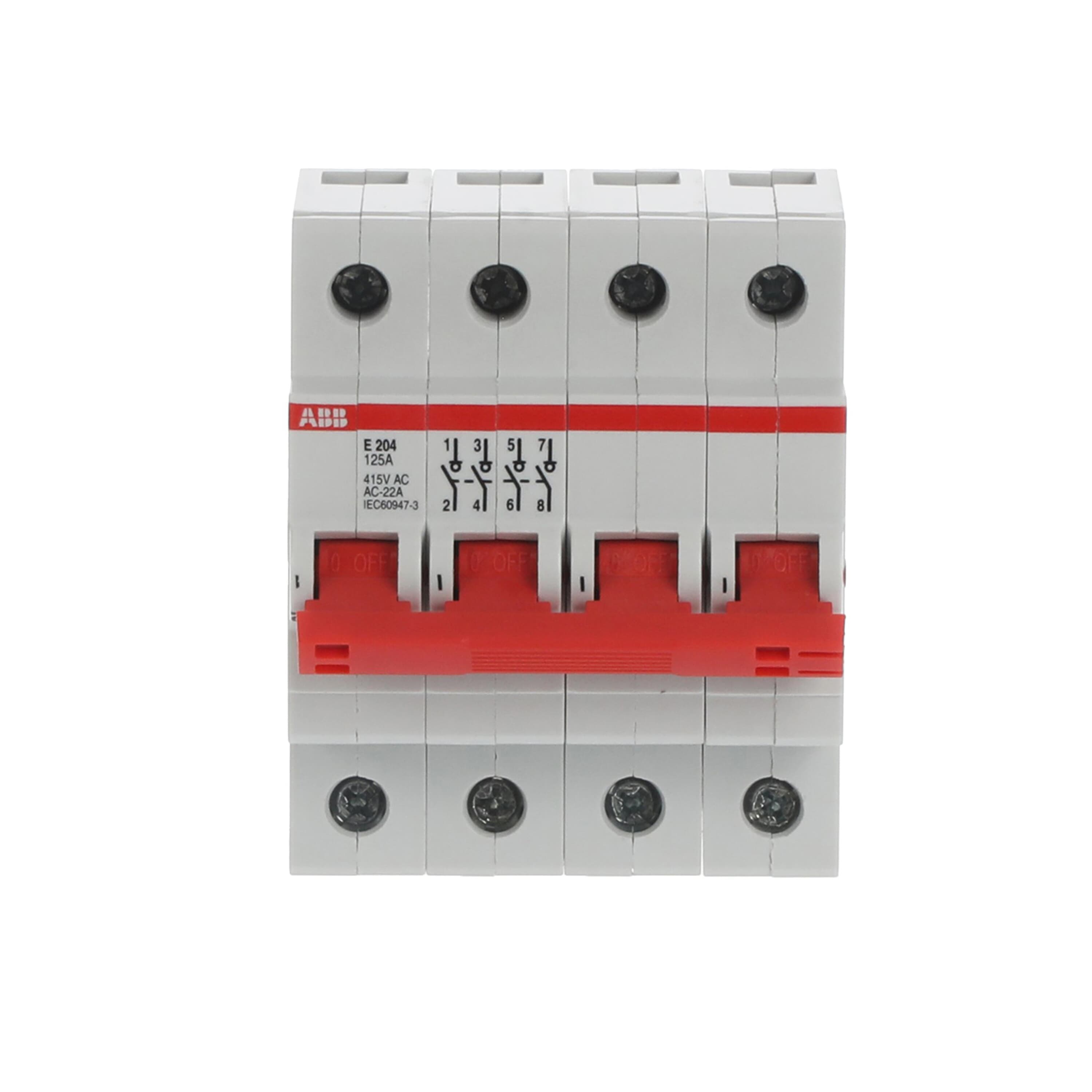

E204/125R
رقم القطعة: 2CDE284001R0125
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
مفتاح فصل E204/125R، رباعي الأقطاب
المواصفات
| Extended Product Type | E204/125R |
|---|---|
| Product ID | 2CDE284001R0125 |
| EAN | 4016779646321 |
| Catalog Description | Isolator E204/125r |
| Long Description | These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized ON/OFF. Approval: VDE, CCC, KEMA |
| Display Name | E204/125R |
| Data Sheet, Technical Information | 2CSC400002D0209 |
| Instructions and Manuals | 2CSC400002D0208 |
| Product Net Width | 70 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Height | 85 mm |
| Product Net Weight | 0.39 kg |
| Number of Poles | 4P |
| Standards | IEC/EN 60947-3 |
| Rated Operational Voltage | 230 / 400 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 6.1 W |
| Degree of Protection | IP10 |
| Recommended Screw Driver | Pozidriv 2 |
| Width in Number of Modular Spacings | 4 |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| REACH Declaration | 9AKK107492A1906 |
| RoHS Declaration | 9AKK108472A0372 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108468A8104 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| End Of Life Disassembling Instructions | 9AKK108469A1170 |
| Environmental Product Declaration - EPD | 9AKK108471A4712 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 81.9 % |
| Declaration of Conformity - CE | 2CDK441011D0403 |
| Package Level 1 Units | carton 2 piece |
| Package Level 1 Gross Weight | 0.825 kg |
| Object Classification Code | Q |
| ETIM 9 | EC001047 - Selective main line circuit breaker |
| eClass | V11.0 : 27142301 |
| UNSPSC | 39122233 |
| E-Number (Norway) | 1424335 |
| Source URL | https://new.abb.com/products/2CDE284001R0125/e204-125r |
| ABB Taxonomy Path | Low Voltage Products and Systems > Modular DIN Rail Products > Command and Signalling Devices > Switch Disconnectors |
| ABB Classification IDs | 9AAC910006, 9AAC407647, 9AAC407648 |
| ETIM 10 | EC001047 - Selective main line circuit breaker |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | 6 kA |
| Rated Voltage (U<sub>r</sub>) | 400 V |
| Rated Current (I<sub>n</sub>) | 125 A |
| Mounting Type | DIN-Rail |
| Rated Conditional Short-Circuit Current (I<sub>nc</sub>) | 6 kA |
| Extended Product Lifetime | Product Durability |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| RoHS Date | 20260312 |
| REACH Date | 20260312 |
| Accessories Available | Yes |
| Built-In Depth (<em>t<sub>2</sub></em>) | 70 mm |
| Overvoltage Category | IV |
| Input Voltage Type | AC |
| Switch Type | Off |
| Cover Color | Grey |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 4 |
| Installation Size | acc. to DIN 43880 3 |
| Voltage Protection Level ( Up) | 4 kV |
| Rated Short-Circuit Capacity | (230 / 400 V AC) 25 kA |
| Certification Agency | EN |
