XT7S 1600 Ekip Dip LSIG In=1600A 4p F F

ABB

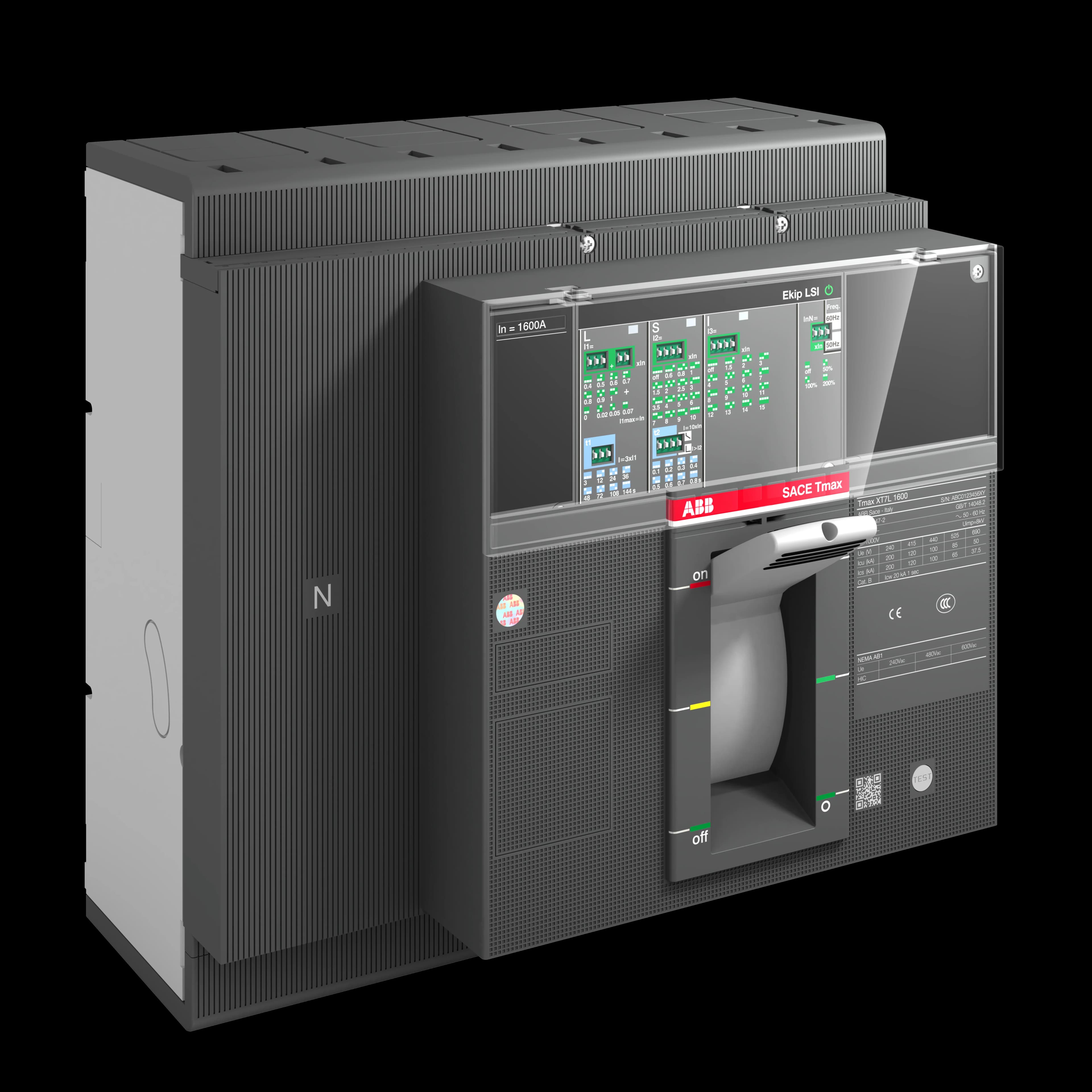

XT7S 1600 Ekip Dip LSIG In=1600A 4p F F

رقم القطعة: 1SDA101125R1

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

قاطع MCCB من نوع XT7S، إطار 1600 أمبير، وحدة فصل Ekip DIP LSIG، In=1600 أمبير، رباعي الأقطاب، ثابت، أطراف أمامية

المواصفات

Extended Product TypeXT7S 1600 Ekip Dip LSIG In=1600A 4p F F
Product ID1SDA101125R1
EAN8056221014281
Catalog DescriptionXT7S 1600 Ekip Dip LSIG In=1600A 4p F F
Long DescriptionC.BREAKER TMAX XT7S 1600 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP DIP LSIG R 1600
Display NameXT7S 1600 Ekip Dip LSIG In=1600A 4p F F
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Data Sheet, Technical Information1SDC210100D0206
Instructions and Manuals1SDH002013A1001
CAD Dimensional Drawing1SDH002065A1390
Product Net Width280 mm
Product Net Depth / Length166 mm
Product Net Height268 mm
Product Net Weight12.5 kg
Number of Poles4P
StandardsIEC60947-2
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)20 kA
Rated Insulation Voltage (U<sub>i</sub>)1000 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)8 kV
Electrical Durability3000 cycle
Mechanical Durability10000 cycle
Power Lossat Rated Operating Conditions per Pole 94 W
Product NameMoulded Case Circuit Breaker
Ambient Air TemperatureOperation -40 ... 125 °C
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Declaration of Conformity - CE9AKK107046A9648
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Height350 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221014281
Object Classification CodeQ
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
eClassV11.1 : 27370409
Source URLhttps://new.abb.com/products/1SDA101125R1/xt7s-1600-ekip-dip-lsig-in-1600a-4p-f-f
ABB Taxonomy PathLow Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT
ABB Classification IDs9AAC910006, 9AAC167301, 9AAC412850
SCIPad860117-4d4b-4511-bfcd-c0dee982a3ad Italy
Simplified SCIP043631b3-929c-42f2-bd96-36f868c60841 Germany
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>)(220 V AC) 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>)(220 V AC) 85 kA
Environmental Information9AKK108467A6707
Product Main TypeSACE Tmax XT
Mechanical Drawings1SDH002013A1101
Rated Current (I<sub>n</sub>)1600 A
Order Multiple1 piece
Product TypeAutomatic Circuit Breaker
Extended Product LifetimeProduct Modularity
Wiring Diagram1SDM000002A1001
EU Data Act Compliance Declaration1SDH002560A1001
Order Code US and CanadaXT7SE416FGFF000XXX
Current TypeAC
VersionF
Rated Uninterrupted Current (I<sub>u</sub>)1600 A
ReleaseEkip Dip LSIG
Release TypeEL
Short-Circuit Performance LevelS
Sub-typeXT7
Terminal Connection TypeFront
Circuit Breaker Type to be AssociatedPower Distribution
