S201-C63
رقم القطعة: 2CDS251001R0634
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

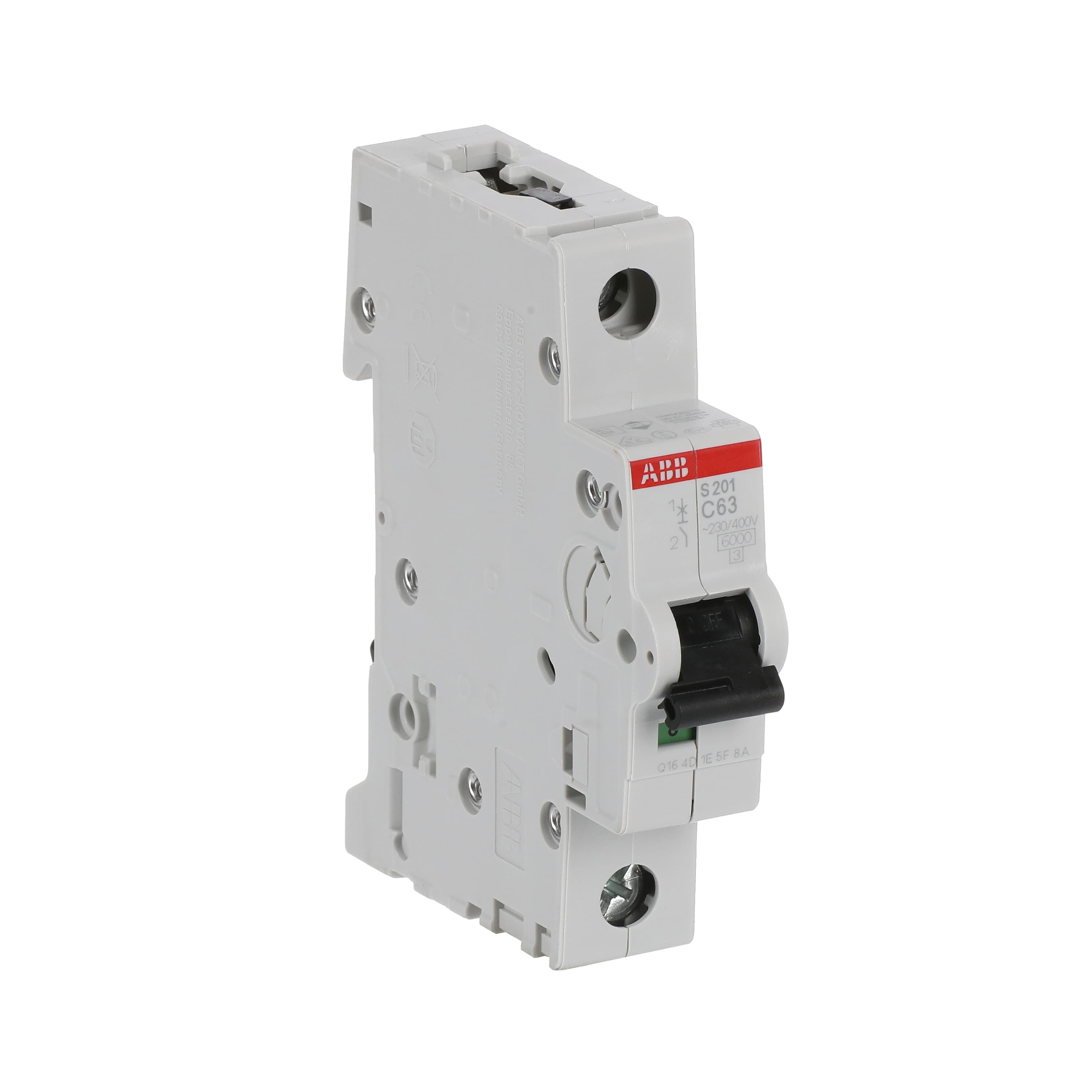

قاطع دائرة مصغر S201-C63، أحادي القطب
المواصفات
| Extended Product Type | S201-C63 |
|---|---|
| Product ID | 2CDS251001R0634 |
| EAN | 4016779551014 |
| Catalog Description | Miniature Circuit Breaker - S200 - 1P - 63 A - C - (AC) 6 kA |
| Long Description | System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. |
| Display Name | S201-C63 |
| Country of Origin | Germany |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU |
| EPLAN Data | 9AAC204436_EPLAN |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| Instructions and Manuals | 2CDS207104P0002 |
| Product Net Width | 17.5 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Height | 88 mm |
| Product Net Weight | 0.12 kg |
| Number of Poles | 1P |
| Standards | IEC/EN 60898-1 |
| Rated Operational Voltage | acc. to IEC 60898-1 230 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Power Loss | 4.8 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Wire Stripping Length | 12.5 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Pozidriv 2 |
| Tightening Torque | 2.8 N·m |
| Terminal Type | Screw Terminals |
| Width in Number of Modular Spacings | 1 |
| Maximum Operating Voltage UL/CSA | 60 V DC |
| Tightening Torque UL/CSA | 18 in·lb |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| REACH Declaration | 9AKK107492A1906 |
| RoHS Declaration | 9AKK108472A0372 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108468A8104 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| EcoSolutions Profile | 9AKK108469A3796 |
| End Of Life Disassembling Instructions | 9AKK108468A3132 |
| Environmental Product Declaration - EPD | 9AKK108472A3863 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 80.7 % |
| Declaration of Conformity - CE | 2CDK403001D0607 |
| Declaration of Conformity - UKCA | 9AKK108467A5053 |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 1.24 kg |
| Object Classification Code | F |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| eClass | V11.0 : 27141901 |
| UNSPSC | 39121603 |
| IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers |
| E-Number (Finland) | 3210463 |
| E-Number (Norway) | 1664851 |
| E-Number (Sweden) | 2100532 |
| Source URL | https://new.abb.com/products/2CDS251001R0634/s201-c63 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Modular DIN Rail Products > Miniature Circuit Breakers MCBs > Miniature Circuit Breakers MCBs > S200 |
| ABB Classification IDs | 9AAC910006, 9AAC100489, 9AAC204436 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| Lead Time | 0 day |
| Mounting Position | any |
| Country of Origin (CountryOfOrigin_PUBRABB008) | Germany |
| Lead Time (LeadTime_PUBRABB008) | 0 day |
| Made To Order (MadeToOrder_PUBRABB008) | No |
| Warranty Return (NoWarrantyReturn_PUBRABB008) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUBRABB008) | Active |
| Quote Only (QuoteOnly_PUBRABB008) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUBRABB008) | BRABB008EXPU |
| Country of Origin (CountryOfOrigin_PUCHSEC006) | Germany |
| Lead Time (LeadTime_PUCHSEC006) | 0 day |
| Made To Order (MadeToOrder_PUCHSEC006) | No |
| Warranty Return (NoWarrantyReturn_PUCHSEC006) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUCHSEC006) | Active |
| Quote Only (QuoteOnly_PUCHSEC006) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUCHSEC006) | CHSEC006EXPU |
| Country of Origin (CountryOfOrigin_PUCZABB006) | Germany |
| Lead Time (LeadTime_PUCZABB006) | 21 day |
| Made To Order (MadeToOrder_PUCZABB006) | No |
| Product Sales Status (ProductSalesStatus_PUCZABB006) | Active |
| Quote Only (QuoteOnly_PUCZABB006) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUCZABB006) | CZABB006EXPU |
| Warranty Return (NoWarrantyReturn_PUCZABB006) | Product under warranty must be returned |
| Dimension Diagram | 2CDC022007F0010 |
| Contact Position Indication | Red ON / Green OFF |
| I²t Characteristic | 9AKK107992A5102 |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | (133 V AC) 15 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>) | (133 V AC) 20 kA |
| Number of Protected Poles | 1 |
| Rated Current (I<sub>n</sub>) | 63 A |
| Mounting Type | DIN-Rail |
| Extended Product Lifetime | Product Durability |
| Connecting Capacity | Busbar 10/10 mm² |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| RoHS Date | 20260312 |
| REACH Date | 20260312 |
| Accessories Available | Yes |
| Housing Material | Insulation Group II, RAL 7035 |
| Built-In Depth (<em>t<sub>2</sub></em>) | 69 mm |
| Overvoltage Category | III |
| Connecting Capacity UL/CSA | Busbar 18-8 AWG |
| Electrical Endurance | 10000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Actuator Type | Toggle |
| Operational Voltage | Maximum (Incl. Tolerance) 253 V AC |
| Environmental Conditions | 28 cycles |
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
| Frequency (<i>f</i>) | 50 Hz |
| Input Voltage Type | AC/DC |
| Offered with Takeback Services | Take Back for Recycling |
| Installation Size | acc. to DIN 43880 1 |
| Rated Short-Circuit Capacity | (AC) 6 kA |
| Certification Agency | EN |
| Energy Limiting Class | 3 |
| Tripping Characteristic | C |
| Pole Net Weight | 0.125 kg |
| Power Supply Connection | Arbitrary |
| Interrupting Rating acc. to UL1077 | (277 V AC) 6 kA |
| Reference Ambient Air Temperature | 30 °C |
| Standardization Body | EN |
