AF16-30-10-11
رقم القطعة: 1SBL177001R1110
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

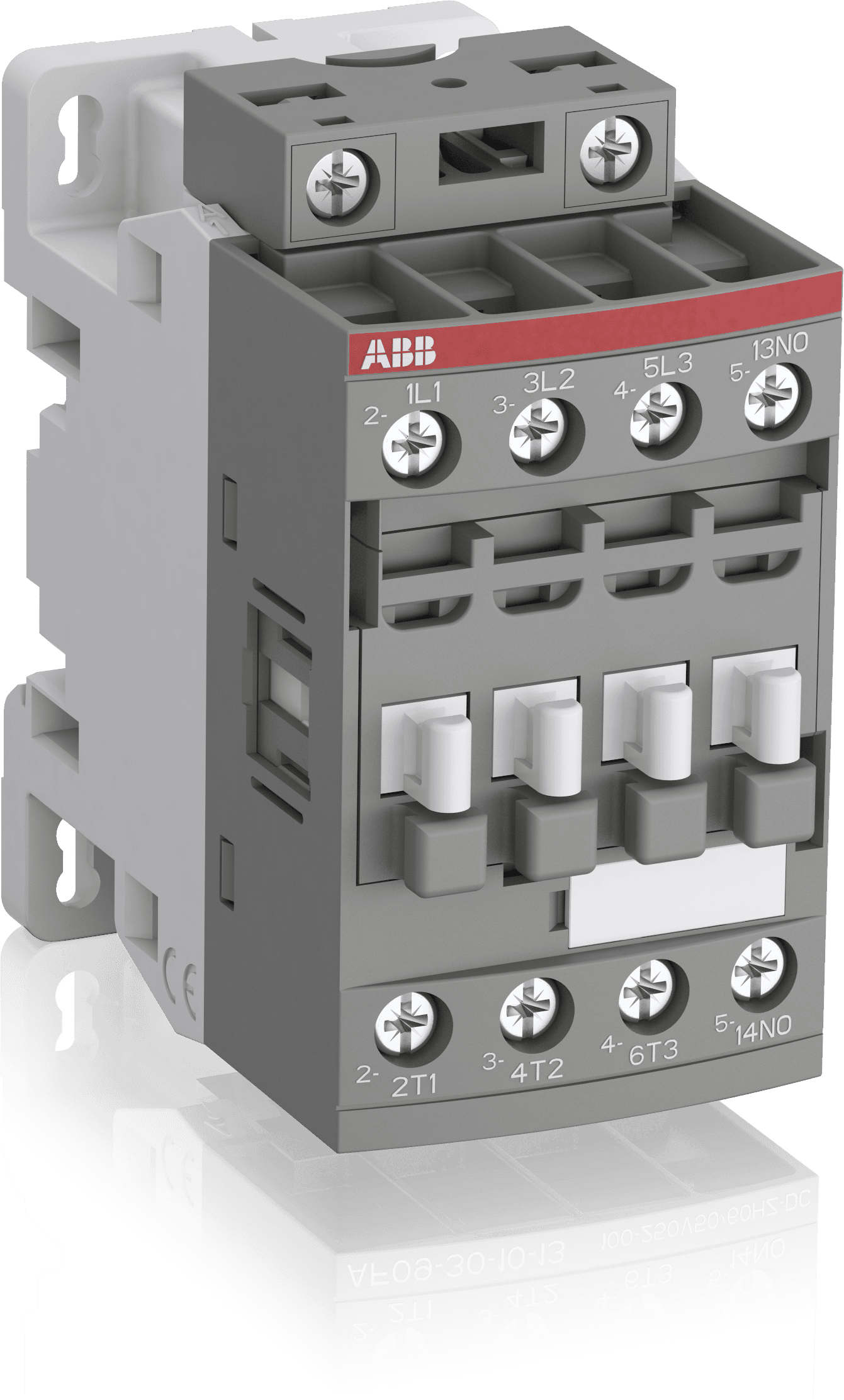

كونتاكتور AF16-30-10-11، ثلاثي الأقطاب
المواصفات
| Extended Product Type | AF16-30-10-11 |
|---|---|
| Product ID | 1SBL177001R1110 |
| EAN | 3471523110618 |
| Catalog Description | AF16-30-10-11 24-60V50/60HZ 20-60VDC Contactor |
| Long Description | The AF16-30-10-11 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) or 10 hp / 480 V UL and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. |
| Display Name | AF16-30-10-11 |
| Country of Origin | China |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Inactive |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| EPLAN Data | 9AAC159647_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101027M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 77 mm |
| Product Net Height | 86 mm |
| Product Net Weight | 0.27 kg |
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 3P |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Rated Operational Current AC-1 (I<sub>e</sub>) | (690 V) 40 °C 30 A |
| Rated Operational Current AC-3 (I<sub>e</sub>) | (415 V) 60 °C 18 A |
| Rated Operational Power AC-3 (P<sub>e</sub>) | (400 V) 7.5 kW |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-4-1 690 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 6 kV |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz 24 ... 60 V |
| Power Loss | at 6 A per Pole 0.1 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Wire Stripping Length | Auxiliary Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Product Name | Block Contactor |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| General Use Rating UL/CSA | (600 V AC) 30 A |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 1-1/2 hp |
| Connecting Capacity Main Circuit UL/CSA | Rigid Solid 1/2x 16-10 AWG |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Full Load Amps Motor Use | (120 V AC) Single Phase 20 A |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | Closed, Shock Direction: B1 25 g |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| EcoSolutions Profile | 1SBC100156C0308 |
| End Of Life Disassembling Instructions | 1SBC101080M6801 |
| Environmental Product Declaration - EPD | 1SBD250584E3000 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 92.7 % |
| ABS Certificate | ABS_26-0348269-PDA_FR |
| CB Certificate | CB_SE-117714 |
| CCC Certificate | CCC_2024010304656669 |
| Declaration of Conformity - CE | 1SBD250000U1000 |
| Declaration of Conformity - UKCA | 1SBD250031U1000 |
| DNV Certificate | DNV_TAE00001AF-4 |
| RINA Certificate | RINA_ELE142224XG |
| UL Certificate | UL-US-2150887-5 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 87 mm |
| Package Level 1 Depth / Length | 79 mm |
| Package Level 1 Height | 47 mm |
| Package Level 1 Gross Weight | 0.27 kg |
| Package Level 1 EAN | 3471523110618 |
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4758 >> Iec Contactors |
| E-Number (Finland) | 3705804 |
| E-Number (Sweden) | 3211343 |
| Source URL | https://new.abb.com/products/1SBL177001R1110/af16-30-10-11 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Control Products > Contactors > Block Contactors > AF Contactors > AF16 |
| ABB Classification IDs | 9AAC910006, 9AAC100109, 9AAC184308, 9AAC159647 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 2 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 6 A / 144 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Resistance to Vibrations | 4g Closed Position & 2g Open position 5 ... 300 Hz |
| BV Certificate | BV_2634H24898C1 |
| CQC Certificate | CQC2010010304445624 |
| Declaration of Conformity - CCC | 2020980304001253 |
| Lead Time | 59 day |
| Country of Origin (CountryOfOrigin_PUINABB015) | India |
| Made To Order (MadeToOrder_PUINABB015) | No |
| Warranty Return (NoWarrantyReturn_PUINABB015) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUINABB015) | Active |
| Quote Only (QuoteOnly_PUINABB015) | No |
| LR Certificate | LRS_LR23403517TA-02 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| Rated Operational Power AC-3e (P<sub>e</sub>) | (415 V) 9 kW |
| Rated Operational Current AC-3e (I<sub>e</sub>) | (415 V) 60 °C 18 A |
| RMRS Certificate | RMRS_1802705280 |
| Rated Operational Current DC-5 (I<sub>e</sub>) | (110 V) 1-Pole, 40 °C 4 A |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Operate Time | Between Coil De-energization and NC Contact Closing 13 ... 98 ms |
| Mounting by Screws (not supplied) | 2 x M4 Screws Placed Diagonally |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| A2L Certificate – UL | 9AKK108469A4875 |
| Rated Operational Current DC-1 (I<sub>e</sub>) | (110 V) 1-Pole, 40 °C 20 A |
| Rated Operational Current DC-3 (I<sub>e</sub>) | (110 V) 1-Pole, 40 °C 8 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A |
| UL Listing Card | E312527 |
