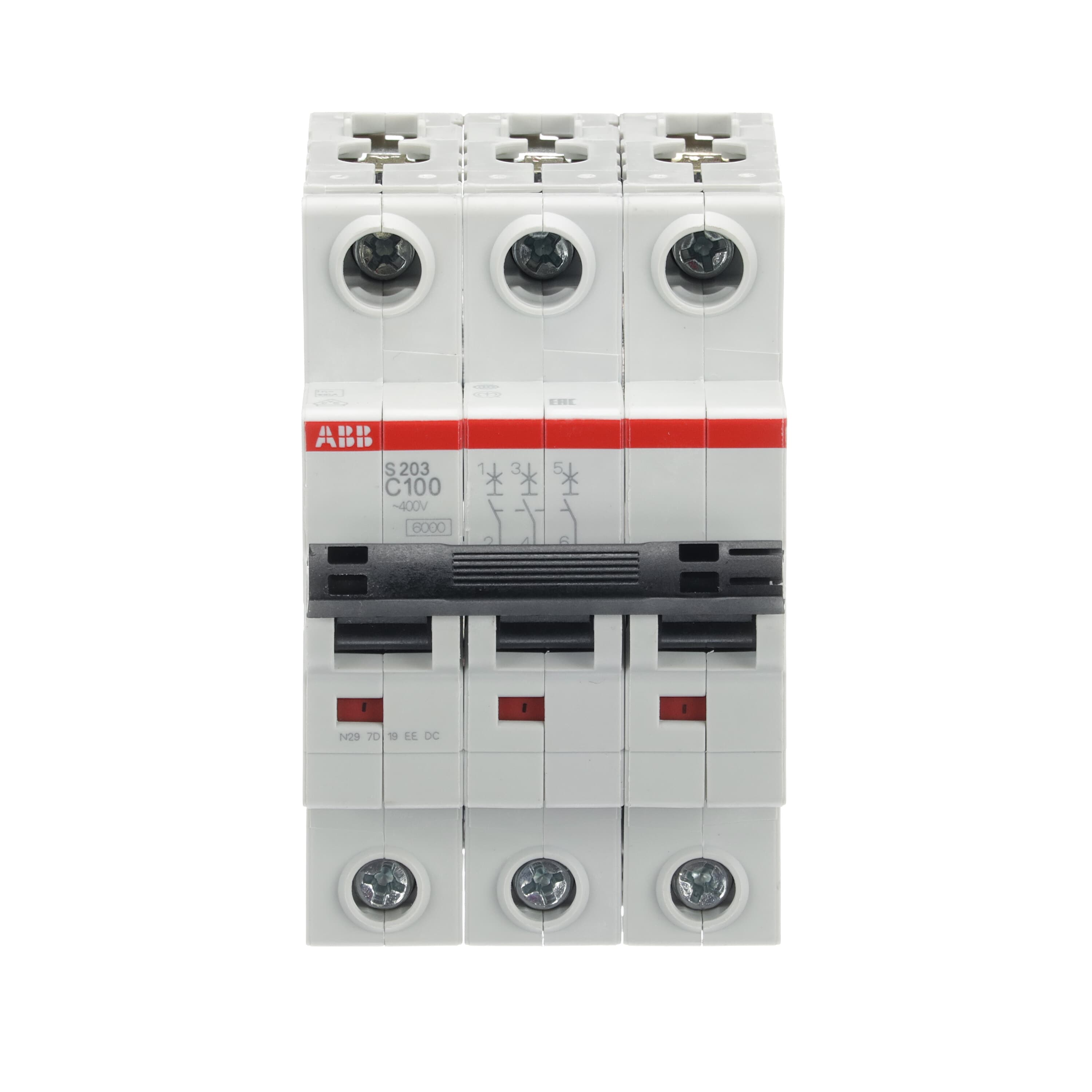

S203-C100
رقم القطعة: 2CDS253001R0824
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

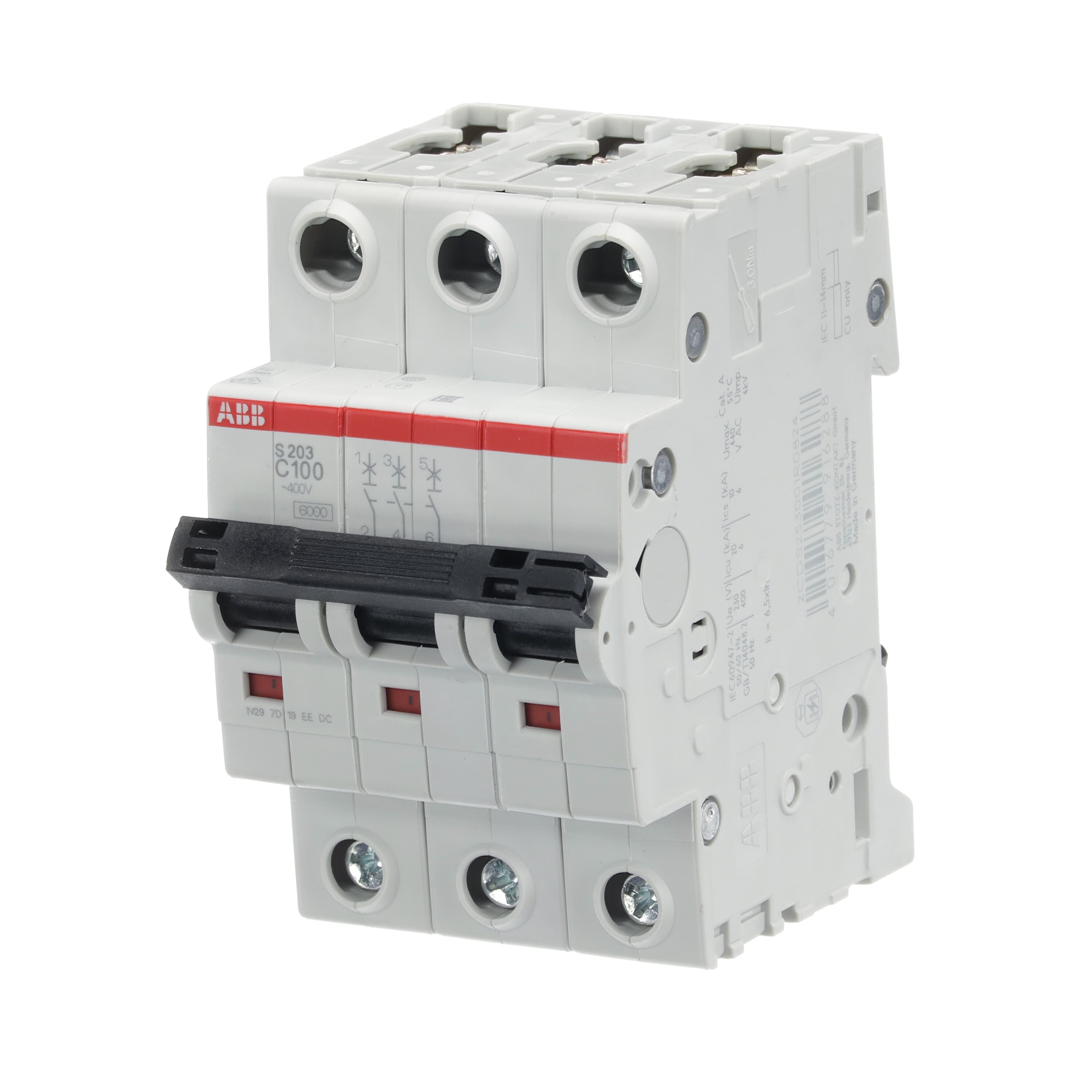

قاطع دائرة مصغر S203-C100، ثلاثي الأقطاب
المواصفات
| Extended Product Type | S203-C100 |
|---|---|
| Product ID | 2CDS253001R0824 |
| EAN | 4016779916288 |
| Catalog Description | Miniature Circuit Breaker - S200 80-100A - 3P - 100 A - C - (AC) 6 kA |
| Long Description | S203-C100 Miniature Circuit Breake C-Char., 6kA, 100A, 3P |
| Display Name | S203-C100 |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| EPLAN Data | 9AAC185394_EPLAN |
| Data Sheet, Technical Information | 9AKK107680A3031 |
| Instructions and Manuals | 2CDS207104P0002 |
| Product Net Width | 52.5 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Height | 88 mm |
| Product Net Weight | 0.36 kg |
| Number of Poles | 3P |
| Standards | IEC/EN 60898-1 |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Power Loss | 29.4 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Pozidriv 2 |
| Tightening Torque | 3 N·m |
| Terminal Type | Screw Terminals |
| Width in Number of Modular Spacings | 3 |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| REACH Declaration | 9AKK107492A1906 |
| RoHS Declaration | 9AKK108472A0372 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108468A8104 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| EcoSolutions Profile | 9AKK108471A1000 |
| Declaration of Conformity - CE | 2CDK400601D2703 |
| Declaration of Conformity - UKCA | 9AKK108467A5198 |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.6 kg |
| Object Classification Code | F |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| eClass | V11.0 : 27141901 |
| UNSPSC | 39121603 |
| IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers |
| E-Number (Finland) | 3210642 |
| E-Number (Norway) | 1682955 |
| Source URL | https://new.abb.com/products/2CDS253001R0824/s203-c100 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Modular DIN Rail Products > Miniature Circuit Breakers MCBs > Miniature Circuit Breakers MCBs > S200 80-100A |
| ABB Classification IDs | 9AAC910006, 9AAC100489, 9AAC185394 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| Mounting Position | any |
| Contact Position Indication | Red ON / Green OFF |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | (400 V AC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>) | (230 V AC) 10 kA |
| Number of Protected Poles | 3 |
| Rated Current (I<sub>n</sub>) | 100 A |
| Connecting Capacity | Busbar 16/16 mm² |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| RoHS Date | 20260312 |
| REACH Date | 20260312 |
| Accessories Available | Yes |
| Housing Material | Insulation Group I, RAL 7035 |
| Built-In Depth (<em>t<sub>2</sub></em>) | 69 mm |
| Overvoltage Category | III |
| Electrical Endurance | 10000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Actuator Type | Toggle |
| Operational Voltage | Maximum (Incl. Tolerance) 440 V AC |
| Environmental Conditions | 28 cycles |
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
| Input Voltage Type | AC |
| Installation Size | acc. to DIN 43880 1 |
| Rated Short-Circuit Capacity | (AC) 6 kA |
| Certification Agency | EN |
| Energy Limiting Class | 3 |
| Tripping Characteristic | C |
| Power Supply Connection | Arbitrary |
| Reference Ambient Air Temperature | 30 °C |
| Standardization Body | EN |
