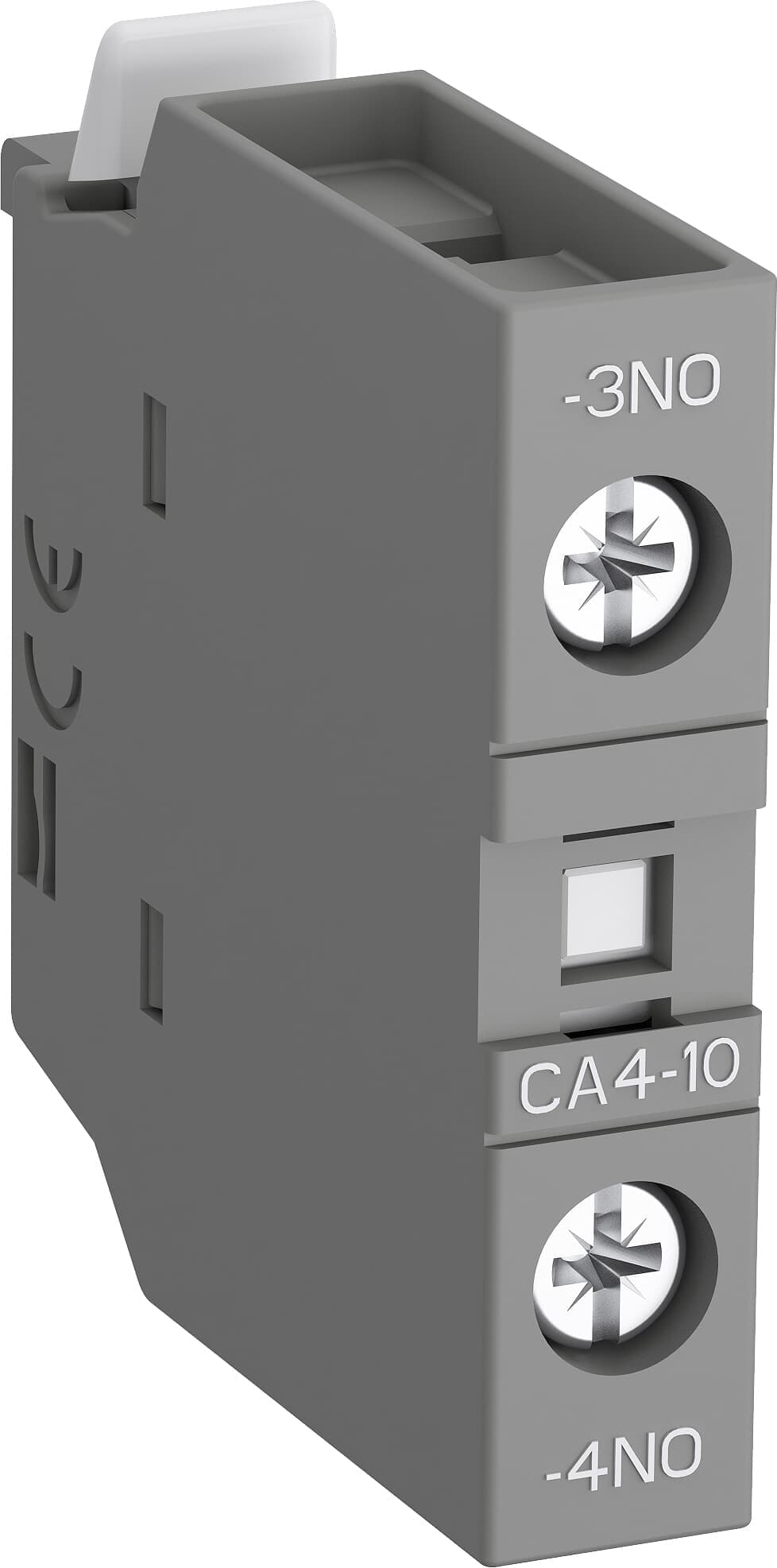

CA4-10
رقم القطعة: 1SBN010110R1010
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
كونتاكت مساعد CA4-10، أحادي القطب
المواصفات
| Extended Product Type | CA4-10 |
|---|---|
| Product ID | 1SBN010110R1010 |
| EAN | 3471523130005 |
| Catalog Description | CA4-10 Auxiliary Contact Block |
| Long Description | CA4-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays. CA4-10 is available with 1 N.O. instantaneous contacts for standard industrial environments. |
| Display Name | CA4-10 |
| Country of Origin | Czechia |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101041M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 9.9 mm |
| Product Net Depth / Length | 39.5 mm |
| Product Net Height | 43 mm |
| Product Net Weight | 0.014 kg |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 1P |
| Standards | IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 60947-5-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-5-1-14 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 140 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 690 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| Power Loss | at 6 A per Pole 0.1 W |
| Wire Stripping Length | Auxiliary Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Product Name | Auxiliary Contact Block |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABS Certificate | ABS_26-0348269-PDA_FR |
| CB Certificate | FR-719194 |
| CCC Certificate | CCC_2024010305656857 |
| Declaration of Conformity - CE | 1SBD250007U1000 |
| Declaration of Conformity - UKCA | 1SBD250038U1000 |
| DNV Certificate | DNV_TAE00001BV-5 |
| RINA Certificate | RINA_ELE084013XG |
| UL Certificate | UL-US-L252354-131-82119002-7 |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 10 mm |
| Package Level 1 Gross Weight | 0.014 kg |
| Package Level 1 EAN | 3471523130005 |
| Package Level 2 Units | box 720 piece |
| Package Level 2 Gross Weight | 10.08 kg |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Finland) | 3706500 |
| E-Number (Sweden) | 3211416 |
| Source URL | https://new.abb.com/products/1SBN010110R1010/ca4-10 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Control Products > Contactors > Block Contactors |
| ABB Classification IDs | 9AAC910006, 9AAC100109, 9AAC167263 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 2 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 6 A / 144 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Suitable For | AF09 |
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| BV Certificate | BV_2634H24900C1 |
| Declaration of Conformity - CCC | 2020980304001258 |
| Configuration Only | No |
| Criticality | No |
| Lead Time | 0 day |
| Note | No |
| Product Availability Class | Replaced |
| Replacement Part ID | 3AUA0000091262 |
| Storage Location | 4001 |
| Configuration Only (ConfigurationOnly_PUCHNOR001) | No |
| Country of Origin (CountryOfOrigin_PUCHNOR001) | Finland |
| Criticality (Criticality_PUCHNOR001) | No |
| Lead Time (LeadTime_PUCHNOR001) | 0 day |
| Made To Order (MadeToOrder_PUCHNOR001) | No |
| Note (Option_PUCHNOR001) | No |
| Product Availability Class (ProAvaCla_PUCHNOR001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUCHNOR001) | Active |
| Quote Only (QuoteOnly_PUCHNOR001) | No |
| Replacement Part ID (ReplacementPartId_PUCHNOR001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUCHNOR001) | CHNOR001EXPU |
| Storage Location (StorageLocation_PUCHNOR001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUCHNOR001) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUCLABB001) | No |
| Country of Origin (CountryOfOrigin_PUCLABB001) | Finland |
| Criticality (Criticality_PUCLABB001) | No |
| Lead Time (LeadTime_PUCLABB001) | 999 day |
| Made To Order (MadeToOrder_PUCLABB001) | No |
| Note (Option_PUCLABB001) | No |
| Product Availability Class (ProAvaCla_PUCLABB001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUCLABB001) | Active |
| Quote Only (QuoteOnly_PUCLABB001) | No |
| Replacement Part ID (ReplacementPartId_PUCLABB001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUCLABB001) | CLABB001EXPU |
| Storage Location (StorageLocation_PUCLABB001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUCLABB001) | Product under warranty must be returned |
| Note (Option_PUCNIAB001) | No |
| Country of Origin (CountryOfOrigin_PUCNIAB001) | Finland |
| Criticality (Criticality_PUCNIAB001) | No |
| Lead Time (LeadTime_PUCNIAB001) | 999 day |
| Made To Order (MadeToOrder_PUCNIAB001) | No |
| Product Availability Class (ProAvaCla_PUCNIAB001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUCNIAB001) | Active |
| Quote Only (QuoteOnly_PUCNIAB001) | No |
| Replacement Part ID (ReplacementPartId_PUCNIAB001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUCNIAB001) | CNIAB001EXPU |
| Storage Location (StorageLocation_PUCNIAB001) | 4001 |
| Country of Origin (CountryOfOrigin_PUCNILX002) | China |
| Lead Time (LeadTime_PUCNILX002) | 28 day |
| Made To Order (MadeToOrder_PUCNILX002) | No |
| Warranty Return (NoWarrantyReturn_PUCNILX002) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUCNILX002) | Inactive |
| Quote Only (QuoteOnly_PUCNILX002) | No |
| Country of Origin (CountryOfOrigin_PUCOABB001) | Finland |
| Criticality (Criticality_PUCOABB001) | No |
| Lead Time (LeadTime_PUCOABB001) | 999 day |
| Made To Order (MadeToOrder_PUCOABB001) | No |
| Warranty Return (NoWarrantyReturn_PUCOABB001) | Product under warranty must be returned |
| Note (Option_PUCOABB001) | No |
| Product Availability Class (ProAvaCla_PUCOABB001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUCOABB001) | Active |
| Quote Only (QuoteOnly_PUCOABB001) | No |
| Replacement Part ID (ReplacementPartId_PUCOABB001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUCOABB001) | COABB001EXPU |
| Storage Location (StorageLocation_PUCOABB001) | 4001 |
| Configuration Only (ConfigurationOnly_PUDEAPRMLC) | No |
| Country of Origin (CountryOfOrigin_PUDEAPRMLC) | Finland |
| Criticality (Criticality_PUDEAPRMLC) | No |
| Lead Time (LeadTime_PUDEAPRMLC) | 0 day |
| Made To Order (MadeToOrder_PUDEAPRMLC) | No |
| Note (Option_PUDEAPRMLC) | No |
| Product Availability Class (ProAvaCla_PUDEAPRMLC) | Replaced |
| Product Sales Status (ProductSalesStatus_PUDEAPRMLC) | Active |
| Quote Only (QuoteOnly_PUDEAPRMLC) | No |
| Replacement Part ID (ReplacementPartId_PUDEAPRMLC) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUDEAPRMLC) | DEAPRMLCEXPU |
| Storage Location (StorageLocation_PUDEAPRMLC) | 4001 |
| Warranty Return (NoWarrantyReturn_PUDEAPRMLC) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUDKSER001) | No |
| Country of Origin (CountryOfOrigin_PUDKSER001) | Finland |
| Criticality (Criticality_PUDKSER001) | No |
| Lead Time (LeadTime_PUDKSER001) | 999 day |
| Made To Order (MadeToOrder_PUDKSER001) | No |
| Note (Option_PUDKSER001) | No |
| Product Availability Class (ProAvaCla_PUDKSER001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUDKSER001) | Active |
| Quote Only (QuoteOnly_PUDKSER001) | No |
| Replacement Part ID (ReplacementPartId_PUDKSER001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUDKSER001) | DKSER001EXPU |
| Storage Location (StorageLocation_PUDKSER001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUDKSER001) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUDUABB001) | No |
| Country of Origin (CountryOfOrigin_PUDUABB001) | Finland |
| Criticality (Criticality_PUDUABB001) | No |
| Lead Time (LeadTime_PUDUABB001) | 999 day |
| Made To Order (MadeToOrder_PUDUABB001) | No |
| Note (Option_PUDUABB001) | No |
| Product Availability Class (ProAvaCla_PUDUABB001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUDUABB001) | Active |
| Quote Only (QuoteOnly_PUDUABB001) | No |
| Replacement Part ID (ReplacementPartId_PUDUABB001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUDUABB001) | DUABB001EXPU |
| Storage Location (StorageLocation_PUDUABB001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUDUABB001) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUDUABB003) | No |
| Country of Origin (CountryOfOrigin_PUDUABB003) | Finland |
| Criticality (Criticality_PUDUABB003) | No |
| Lead Time (LeadTime_PUDUABB003) | 999 day |
| Made To Order (MadeToOrder_PUDUABB003) | No |
| Note (Option_PUDUABB003) | No |
| Product Availability Class (ProAvaCla_PUDUABB003) | Replaced |
| Product Sales Status (ProductSalesStatus_PUDUABB003) | Active |
| Quote Only (QuoteOnly_PUDUABB003) | No |
| Replacement Part ID (ReplacementPartId_PUDUABB003) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUDUABB003) | DUABB003EXPU |
| Storage Location (StorageLocation_PUDUABB003) | 4001 |
| Warranty Return (NoWarrantyReturn_PUDUABB003) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUEESER001) | No |
| Country of Origin (CountryOfOrigin_PUEESER001) | Finland |
| Criticality (Criticality_PUEESER001) | No |
| Lead Time (LeadTime_PUEESER001) | 999 day |
| Made To Order (MadeToOrder_PUEESER001) | No |
| Note (Option_PUEESER001) | No |
| Product Availability Class (ProAvaCla_PUEESER001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUEESER001) | Active |
| Quote Only (QuoteOnly_PUEESER001) | No |
| Replacement Part ID (ReplacementPartId_PUEESER001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUEESER001) | EESER001EXPU |
| Storage Location (StorageLocation_PUEESER001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUEESER001) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUEGAUT001) | No |
| Country of Origin (CountryOfOrigin_PUEGAUT001) | Finland |
| Criticality (Criticality_PUEGAUT001) | No |
| Lead Time (LeadTime_PUEGAUT001) | 999 day |
| Made To Order (MadeToOrder_PUEGAUT001) | No |
| Note (Option_PUEGAUT001) | No |
| Product Availability Class (ProAvaCla_PUEGAUT001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUEGAUT001) | Active |
| Quote Only (QuoteOnly_PUEGAUT001) | No |
| Replacement Part ID (ReplacementPartId_PUEGAUT001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUEGAUT001) | EGAUT001EXPU |
| Storage Location (StorageLocation_PUEGAUT001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUEGAUT001) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUESATD001) | No |
| Country of Origin (CountryOfOrigin_PUESATD001) | Finland |
| Criticality (Criticality_PUESATD001) | No |
| Lead Time (LeadTime_PUESATD001) | 999 day |
| Made To Order (MadeToOrder_PUESATD001) | No |
| Note (Option_PUESATD001) | No |
| Product Availability Class (ProAvaCla_PUESATD001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUESATD001) | Active |
| Quote Only (QuoteOnly_PUESATD001) | No |
| Replacement Part ID (ReplacementPartId_PUESATD001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUESATD001) | ESATD001EXPU |
| Storage Location (StorageLocation_PUESATD001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUESATD001) | Product under warranty must be returned |
| Note (Option_PUFIPSE) | No |
| Replacement Part ID (ReplacementPartId_PUFIPSE) | 3AUA0000091262 |
| Product Availability Class (ProAvaCla_PUFIPSE) | Replaced |
| Lead Time (LeadTime_PUFIPSE) | 999 day |
| Country of Origin (CountryOfOrigin_PUFIPSE) | Finland |
| Configuration Only (ConfigurationOnly_PUFISER001) | No |
| Country of Origin (CountryOfOrigin_PUFISER001) | Finland |
| Criticality (Criticality_PUFISER001) | No |
| Lead Time (LeadTime_PUFISER001) | 0 day |
| Made To Order (MadeToOrder_PUFISER001) | No |
| Note (Option_PUFISER001) | No |
| Product Availability Class (ProAvaCla_PUFISER001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUFISER001) | Active |
| Quote Only (QuoteOnly_PUFISER001) | No |
| Replacement Part ID (ReplacementPartId_PUFISER001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUFISER001) | FISER001EXPU |
| Storage Location (StorageLocation_PUFISER001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUFISER001) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUFRAUT001) | No |
| Country of Origin (CountryOfOrigin_PUFRAUT001) | Finland |
| Criticality (Criticality_PUFRAUT001) | No |
| Lead Time (LeadTime_PUFRAUT001) | 999 day |
| Made To Order (MadeToOrder_PUFRAUT001) | No |
| Note (Option_PUFRAUT001) | No |
| Product Availability Class (ProAvaCla_PUFRAUT001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUFRAUT001) | Active |
| Quote Only (QuoteOnly_PUFRAUT001) | No |
| Replacement Part ID (ReplacementPartId_PUFRAUT001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUFRAUT001) | FRAUT001EXPU |
| Storage Location (StorageLocation_PUFRAUT001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUFRAUT001) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUGBINS001) | No |
| Country of Origin (CountryOfOrigin_PUGBINS001) | Finland |
| Criticality (Criticality_PUGBINS001) | No |
| Lead Time (LeadTime_PUGBINS001) | 999 day |
| Made To Order (MadeToOrder_PUGBINS001) | No |
| Note (Option_PUGBINS001) | No |
| Product Availability Class (ProAvaCla_PUGBINS001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUGBINS001) | Active |
| Quote Only (QuoteOnly_PUGBINS001) | No |
| Replacement Part ID (ReplacementPartId_PUGBINS001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUGBINS001) | GBINS001EXPU |
| Storage Location (StorageLocation_PUGBINS001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUGBINS001) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUGRABB001) | No |
| Country of Origin (CountryOfOrigin_PUGRABB001) | Finland |
| Criticality (Criticality_PUGRABB001) | No |
| Lead Time (LeadTime_PUGRABB001) | 999 day |
| Made To Order (MadeToOrder_PUGRABB001) | No |
| Note (Option_PUGRABB001) | No |
| Product Availability Class (ProAvaCla_PUGRABB001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUGRABB001) | Active |
| Quote Only (QuoteOnly_PUGRABB001) | No |
| Replacement Part ID (ReplacementPartId_PUGRABB001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUGRABB001) | GRABB001EXPU |
| Storage Location (StorageLocation_PUGRABB001) | 4001 |
| Warranty Return (NoWarrantyReturn_PUGRABB001) | Product under warranty must be returned |
| Country of Origin (CountryOfOrigin_PUINABB015) | India |
| Made To Order (MadeToOrder_PUINABB015) | No |
| Warranty Return (NoWarrantyReturn_PUINABB015) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUINABB015) | Active |
| Quote Only (QuoteOnly_PUINABB015) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUINABB015) | INABB015EXPU |
| Country of Origin (CountryOfOrigin_PUINABB039) | Finland |
| Criticality (Criticality_PUINABB039) | No |
| Lead Time (LeadTime_PUINABB039) | 999 day |
| Made To Order (MadeToOrder_PUINABB039) | No |
| Note (Option_PUINABB039) | No |
| Product Availability Class (ProAvaCla_PUINABB039) | Replaced |
| Product Sales Status (ProductSalesStatus_PUINABB039) | Active |
| Quote Only (QuoteOnly_PUINABB039) | No |
| Replacement Part ID (ReplacementPartId_PUINABB039) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUINABB039) | INABB039EXPU |
| Storage Location (StorageLocation_PUINABB039) | 4001 |
| Warranty Return (NoWarrantyReturn_PUINABB039) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUINABBRLC) | No |
| Country of Origin (CountryOfOrigin_PUINABBRLC) | Finland |
| Criticality (Criticality_PUINABBRLC) | No |
| Lead Time (LeadTime_PUINABBRLC) | 999 day |
| Made To Order (MadeToOrder_PUINABBRLC) | No |
| Note (Option_PUINABBRLC) | No |
| Product Availability Class (ProAvaCla_PUINABBRLC) | Replaced |
| Product Sales Status (ProductSalesStatus_PUINABBRLC) | Active |
| Quote Only (QuoteOnly_PUINABBRLC) | No |
| Replacement Part ID (ReplacementPartId_PUINABBRLC) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUINABBRLC) | INABBRLCEXPU |
| Storage Location (StorageLocation_PUINABBRLC) | 4001 |
| Warranty Return (NoWarrantyReturn_PUINABBRLC) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUITIND002) | No |
| Country of Origin (CountryOfOrigin_PUITIND002) | Finland |
| Criticality (Criticality_PUITIND002) | No |
| Lead Time (LeadTime_PUITIND002) | 999 day |
| Made To Order (MadeToOrder_PUITIND002) | No |
| Note (Option_PUITIND002) | No |
| Product Availability Class (ProAvaCla_PUITIND002) | Replaced |
| Product Sales Status (ProductSalesStatus_PUITIND002) | Active |
| Quote Only (QuoteOnly_PUITIND002) | No |
| Replacement Part ID (ReplacementPartId_PUITIND002) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUITIND002) | ITIND002EXPU |
| Storage Location (StorageLocation_PUITIND002) | 4001 |
| Warranty Return (NoWarrantyReturn_PUITIND002) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUNLABB021) | No |
| Country of Origin (CountryOfOrigin_PUNLABB021) | Finland |
| Criticality (Criticality_PUNLABB021) | No |
| Lead Time (LeadTime_PUNLABB021) | 999 day |
| Made To Order (MadeToOrder_PUNLABB021) | No |
| Note (Option_PUNLABB021) | No |
| Product Availability Class (ProAvaCla_PUNLABB021) | Replaced |
| Product Sales Status (ProductSalesStatus_PUNLABB021) | Active |
| Quote Only (QuoteOnly_PUNLABB021) | No |
| Replacement Part ID (ReplacementPartId_PUNLABB021) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUNLABB021) | NLABB021EXPU |
| Storage Location (StorageLocation_PUNLABB021) | 4001 |
| Warranty Return (NoWarrantyReturn_PUNLABB021) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUNOATDRLC) | No |
| Country of Origin (CountryOfOrigin_PUNOATDRLC) | Finland |
| Criticality (Criticality_PUNOATDRLC) | No |
| Lead Time (LeadTime_PUNOATDRLC) | 999 day |
| Made To Order (MadeToOrder_PUNOATDRLC) | No |
| Note (Option_PUNOATDRLC) | No |
| Product Availability Class (ProAvaCla_PUNOATDRLC) | Replaced |
| Product Sales Status (ProductSalesStatus_PUNOATDRLC) | Active |
| Quote Only (QuoteOnly_PUNOATDRLC) | No |
| Replacement Part ID (ReplacementPartId_PUNOATDRLC) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUNOATDRLC) | NOATDRLCEXPU |
| Storage Location (StorageLocation_PUNOATDRLC) | 4001 |
| Warranty Return (NoWarrantyReturn_PUNOATDRLC) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUSGIND002) | No |
| Country of Origin (CountryOfOrigin_PUSGIND002) | Finland |
| Criticality (Criticality_PUSGIND002) | No |
| Lead Time (LeadTime_PUSGIND002) | 999 day |
| Made To Order (MadeToOrder_PUSGIND002) | No |
| Note (Option_PUSGIND002) | No |
| Product Availability Class (ProAvaCla_PUSGIND002) | Replaced |
| Product Sales Status (ProductSalesStatus_PUSGIND002) | Active |
| Quote Only (QuoteOnly_PUSGIND002) | No |
| Replacement Part ID (ReplacementPartId_PUSGIND002) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUSGIND002) | SGIND002EXPU |
| Storage Location (StorageLocation_PUSGIND002) | 4001 |
| Warranty Return (NoWarrantyReturn_PUSGIND002) | Product under warranty must be returned |
| Country of Origin (CountryOfOrigin_PUTRDMD001) | Finland |
| Criticality (Criticality_PUTRDMD001) | No |
| Lead Time (LeadTime_PUTRDMD001) | 999 day |
| Made To Order (MadeToOrder_PUTRDMD001) | No |
| Warranty Return (NoWarrantyReturn_PUTRDMD001) | Product under warranty must be returned |
| Note (Option_PUTRDMD001) | No |
| Product Availability Class (ProAvaCla_PUTRDMD001) | Replaced |
| Product Sales Status (ProductSalesStatus_PUTRDMD001) | Active |
| Quote Only (QuoteOnly_PUTRDMD001) | No |
| Replacement Part ID (ReplacementPartId_PUTRDMD001) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUTRDMD001) | TRDMD001EXPU |
| Storage Location (StorageLocation_PUTRDMD001) | 4001 |
| Country of Origin (CountryOfOrigin_PUUSABB251) | Finland |
| Criticality (Criticality_PUUSABB251) | No |
| Lead Time (LeadTime_PUUSABB251) | 999 day |
| Made To Order (MadeToOrder_PUUSABB251) | No |
| Note (Option_PUUSABB251) | No |
| Product Availability Class (ProAvaCla_PUUSABB251) | Replaced |
| Product Sales Status (ProductSalesStatus_PUUSABB251) | Active |
| Quote Only (QuoteOnly_PUUSABB251) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUUSABB251) | USABB251EXPU |
| Storage Location (StorageLocation_PUUSABB251) | 4001 |
| Warranty Return (NoWarrantyReturn_PUUSABB251) | Product under warranty must be returned |
| Configuration Only (ConfigurationOnly_PUZATAD021) | No |
| Country of Origin (CountryOfOrigin_PUZATAD021) | Finland |
| Criticality (Criticality_PUZATAD021) | No |
| Lead Time (LeadTime_PUZATAD021) | 0 day |
| Made To Order (MadeToOrder_PUZATAD021) | No |
| Note (Option_PUZATAD021) | No |
| Product Availability Class (ProAvaCla_PUZATAD021) | Replaced |
| Product Sales Status (ProductSalesStatus_PUZATAD021) | Active |
| Quote Only (QuoteOnly_PUZATAD021) | No |
| Replacement Part ID (ReplacementPartId_PUZATAD021) | 3AUA0000091262 |
| Stocked At Warehouses (StockedAtWarehouses_PUZATAD021) | ZATAD021EXPU |
| Storage Location (StorageLocation_PUZATAD021) | 4001 |
| Warranty Return (NoWarrantyReturn_PUZATAD021) | Product under warranty must be returned |
| LR Certificate | LRS_LR23403517TA-02 |
| Country of Origin (CountryOfOrigin_PUBRABB008) | Czechia |
| Lead Time (LeadTime_PUBRABB008) | 0 day |
| Made To Order (MadeToOrder_PUBRABB008) | No |
| Warranty Return (NoWarrantyReturn_PUBRABB008) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUBRABB008) | Active |
| Quote Only (QuoteOnly_PUBRABB008) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUBRABB008) | BRABB008EXPU |
| Country of Origin (CountryOfOrigin_PUBRAPR001) | Finland |
| Lead Time (LeadTime_PUBRAPR001) | 999 day |
| Made To Order (MadeToOrder_PUBRAPR001) | No |
| Product Sales Status (ProductSalesStatus_PUBRAPR001) | Active |
| Quote Only (QuoteOnly_PUBRAPR001) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUBRAPR001) | BRAPR001EXPU |
| Warranty Return (NoWarrantyReturn_PUBRAPR001) | Product under warranty must be returned |
| Country of Origin (CountryOfOrigin_PUCHSEC006) | Czechia |
| Lead Time (LeadTime_PUCHSEC006) | 0 day |
| Made To Order (MadeToOrder_PUCHSEC006) | No |
| Warranty Return (NoWarrantyReturn_PUCHSEC006) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUCHSEC006) | Active |
| Quote Only (QuoteOnly_PUCHSEC006) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUCHSEC006) | CHSEC006EXPU |
| Country of Origin (CountryOfOrigin_PUCZABB006) | Czechia |
| Lead Time (LeadTime_PUCZABB006) | 21 day |
| Made To Order (MadeToOrder_PUCZABB006) | No |
| Product Sales Status (ProductSalesStatus_PUCZABB006) | Active |
| Quote Only (QuoteOnly_PUCZABB006) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUCZABB006) | CZABB006EXPU |
| Warranty Return (NoWarrantyReturn_PUCZABB006) | Product under warranty must be returned |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| RMRS Certificate | RMRS_1802703280 |
| Replacement Part ID (ReplacementPartId_PUUSABB251) | 3AUA0000091262 |
| Lead Time (LeadTime_PUUSINY) | 21 day |
| Made To Order (MadeToOrder_PUUSINY) | No |
| Product Sales Status (ProductSalesStatus_PUUSINY) | Active |
| Quote Only (QuoteOnly_PUUSINY) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUUSINY) | USSVCEXPU |
| Warranty Return (NoWarrantyReturn_PUUSINY) | Product under warranty must be returned |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| A2L Certificate – UL | 9AKK108469A4897 |
| UL Listing Card | UL_E252354 |
