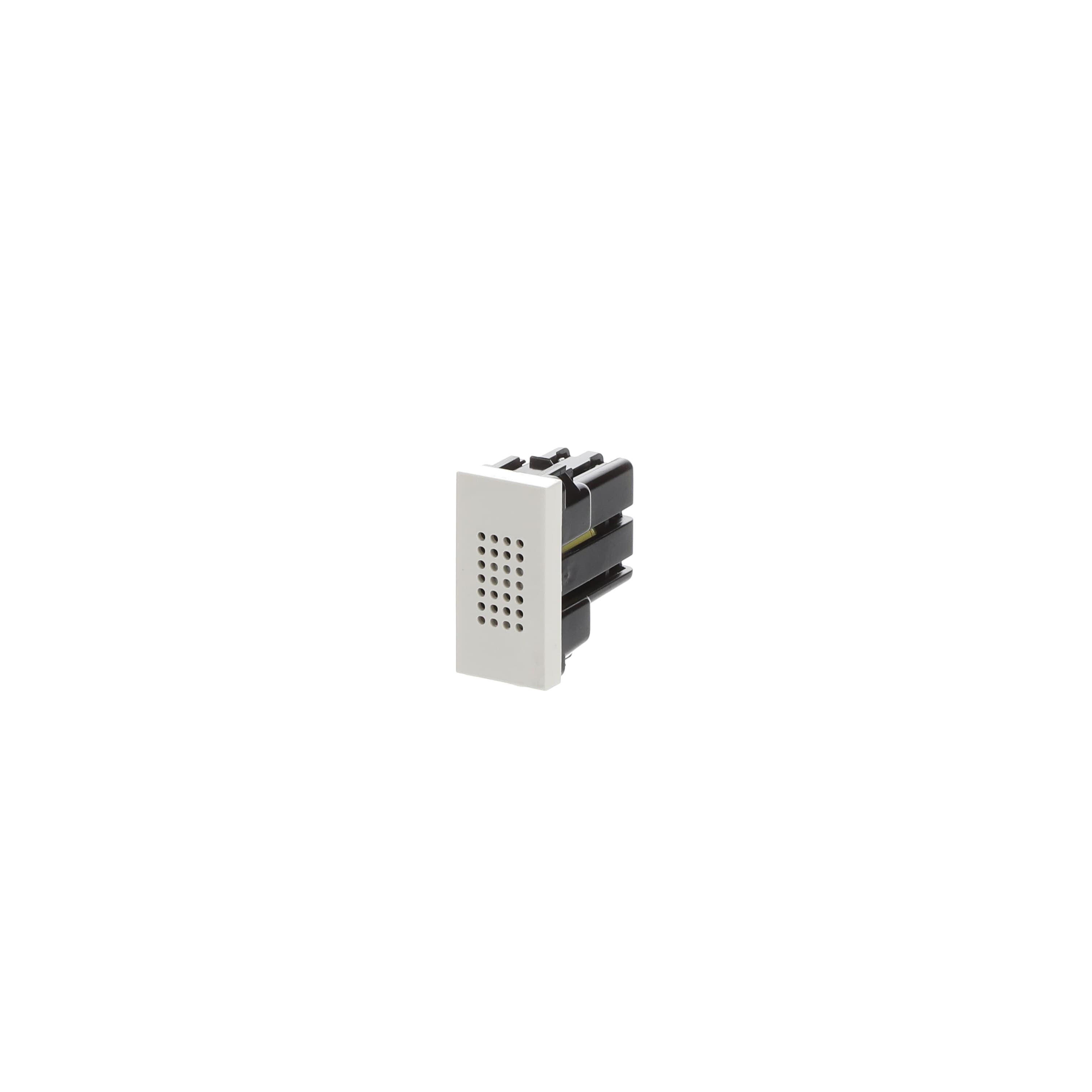

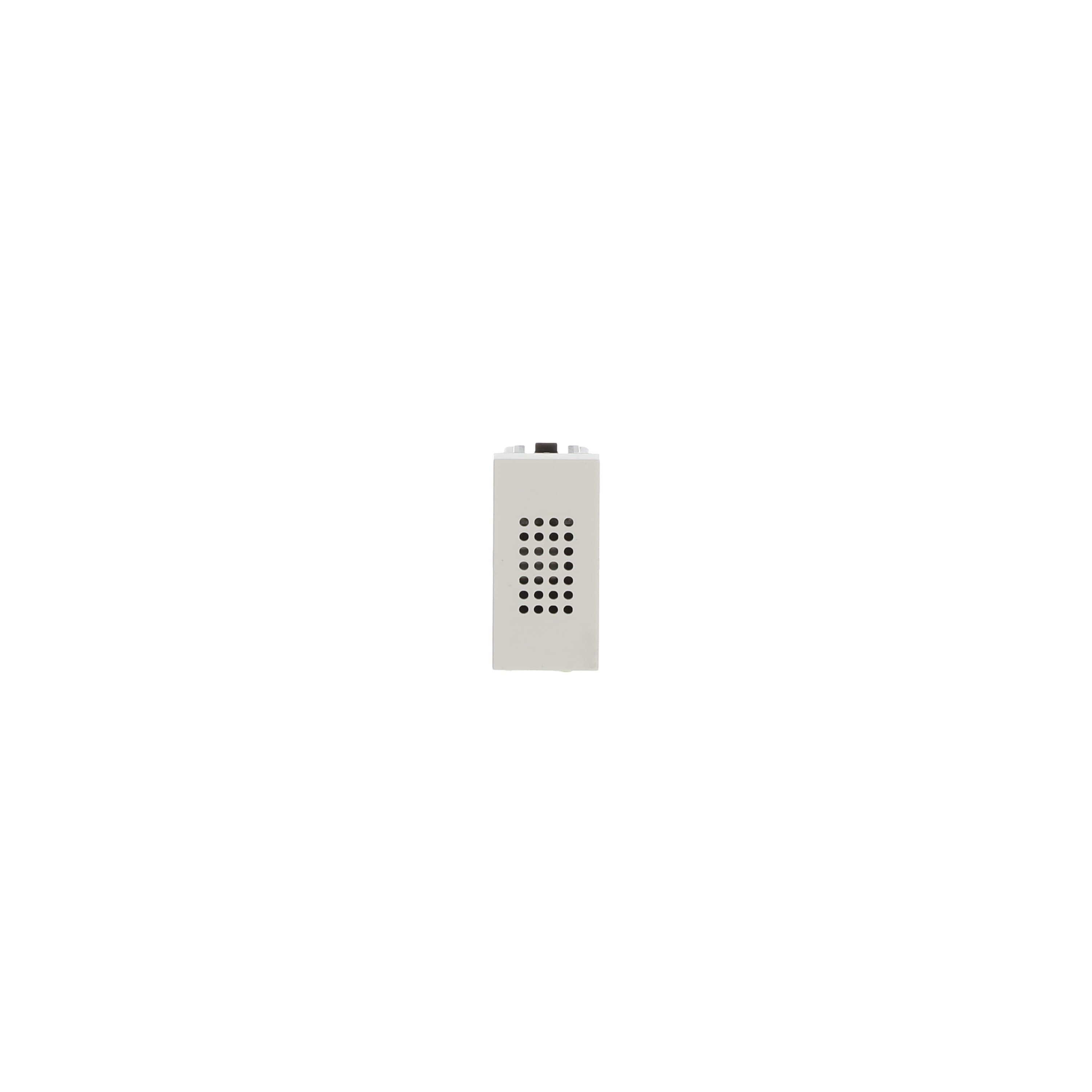

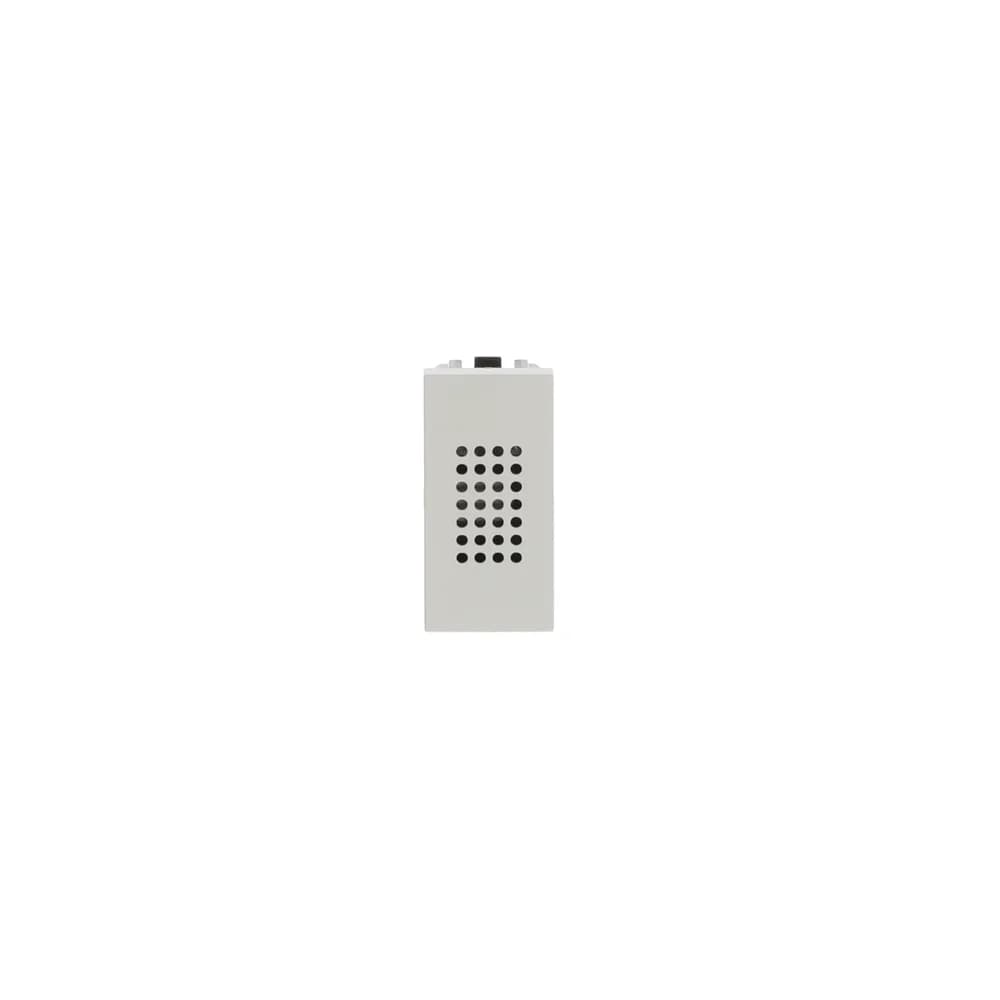

N2119 BL
رقم القطعة: 2CLA211900N1101
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
مأخذ وسائط متعددة N2119 BL
المواصفات
| Extended Product Type | N2119 BL |
|---|---|
| Product ID | 2CLA211900N1101 |
| EAN | 8427238068381 |
| Catalog Description | Buzzer White - Zenit |
| Long Description | Color: White. Rated voltage: 127 - 230 Vac / 50 - 60 Hz Rated power: 8 VA Adjustable tone Acoustic power at 1 meter with cover plate: 75 dB Size: 1 module. |
| Display Name | N2119 BL |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Data Sheet, Technical Information | 9AKK10103A5108 |
| Instructions and Manuals | 2CLX200009N1001 |
| Product Net Width | 22 mm |
| Product Net Height | 44 mm |
| Product Net Weight | 35 g |
| Degree of Protection | IP20 |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| REACH Declaration | 2CLC00000000671 |
| RoHS Declaration | 2CLC00000005423 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Declaration of Conformity - CE | 9AKK106930A5892 |
| ETIM 9 | EC000844 - Buzzer |
| Source URL | https://new.abb.com/products/2CLA211900N1101/n2119-bl |
| ABB Taxonomy Path | Low Voltage Products and Systems > Wiring Accessories - Light Switch Ranges > Cover Plates and Control Elements > Multimedia Devices |
| ABB Classification IDs | 9AAC910006, 9AAF626624, 9AAF626622, 9AAF628847, 9AAF628583 |
| SCIP | 5f1065a3-2e1a-4db1-a878-427cba57eb08 Spain |
| ETIM 10 | EC000844 - Buzzer |
| Rated Voltage (U<sub>r</sub>) | 250 V |
| Color | White |
| Mounting Type | Built-in |
| EU Data Act Applicability and Compliance | Not Applicable |
| Current Type | AC |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251231 |
| Housing Material | Plastic |
| RAL Number | RAL 9010 - Pure White |
| Design Range | Zenit |
| Material | Plastic |
| Surface Finishing | Untreated |
| Number of Batteries | 0 |
| Power Consumption (@P<sub><span style="font-size:x-small;">cons</span></sub>) | 0.2 A |
| Sound / Tone Type | Continuous Tone |
| Sound dB (A) | 75 dB |
| Housing Color | White |
| Replaced Product ID (OLD) | 2CLA211900N1102 |
