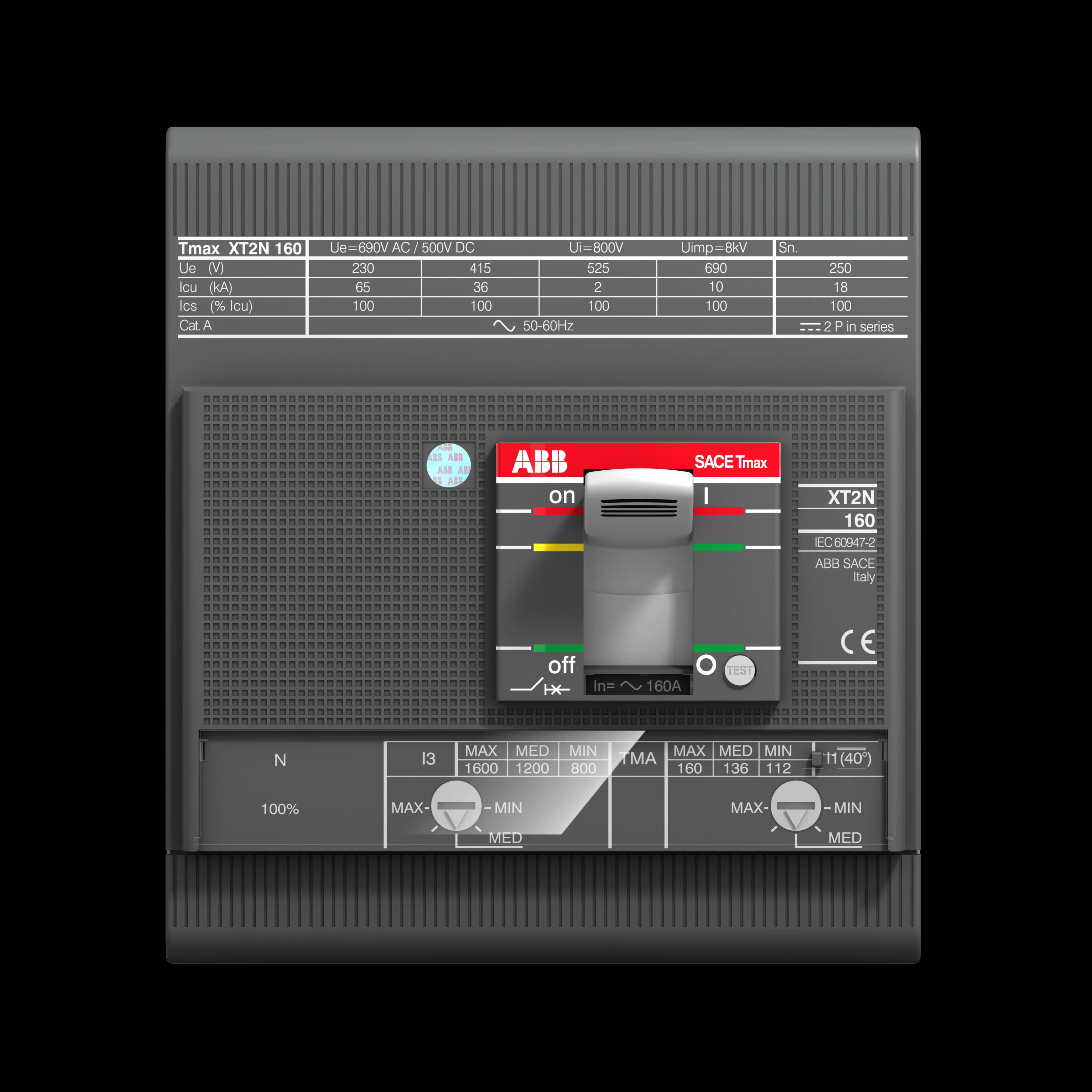

XT2N 160 TMA 160-1600 4p F F InN=100%
رقم القطعة: 1SDA067043R1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
قاطع MCCB من نوع XT2N، 160 أمبير، TMA 160-1600، رباعي الأقطاب، ثابت، أطراف أمامية، محايد 100%
المواصفات
| Extended Product Type | XT2N 160 TMA 160-1600 4p F F InN=100% |
|---|---|
| Product ID | 1SDA067043R1 |
| EAN | 8015644009496 |
| Catalog Description | XT2N 160 TMA 160-1600 4p F F InN=100% |
| Long Description | C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 160 I3=800...1600 A FULLY RATED NEUTRAL |
| Display Name | XT2N 160 TMA 160-1600 4p F F InN=100% |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Instructions and Manuals | 1SDH000721R0001 |
| CAD Dimensional Drawing | 1SDH002230A1002 |
| Product Net Width | 120 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Height | 130 mm |
| Product Net Weight | 1.45 kg |
| Number of Poles | 4P |
| Standards | IEC60947-2 |
| Rated Operational Voltage | 690 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Electrical Durability | 120 cycles per hour |
| Mechanical Durability | 240 cycles per hour |
| Power Loss | at Rated Operating Conditions per Pole 16.15 W |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Recommended Screw Driver | Main Circuit M6 |
| Tightening Torque | 6 N·m |
| Terminal Type | Bolt |
| Product Name | Moulded Case Circuit Breaker |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2348 |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| UL Certificate | No certification needed |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 131 mm |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Height | 212 mm |
| Package Level 1 Gross Weight | 1.55 kg |
| Package Level 1 EAN | 8015644009496 |
| Object Classification Code | Q |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| eClass | V11.1 : 27370409 |
| UNSPSC | 39120000 |
| E-Number (Norway) | 4309746 |
| Source URL | https://new.abb.com/products/1SDA067043R1/xt2n-160-tma-160-1600-4p-f-f-inn-100 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT |
| ABB Classification IDs | 9AAC910006, 9AAC167301, 9AAC167318 |
| SCIP | fe4d8d7d-f619-4566-b937-deaeef417e3f Italy |
| Simplified SCIP | 996b6a69-fc94-4c72-b2d9-5fd745579317 France |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| LR Certificate | 1SDL000163R0100 |
| GL Certificate | 1SDL000163R0093 |
| Dimension Diagram | 1SDH000721R0100 |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | (220 V AC) 65 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>) | (220 V AC) 65 kA |
| Rated Instantaneous Short-Circuit Current Setting (I<sub>i</sub>) | 800…1600 A |
| Setting Range | 112...160 A |
| ATEX Certificate | No certification needed |
| Environmental Information | 9AKK108467A6707 |
| Product Main Type | SACE Tmax XT |
| Mechanical Drawings | 1SDH000721R0100 |
| Rated Voltage (U<sub>r</sub>) | 690 V |
| Rated Current (I<sub>n</sub>) | 160 A |
| VDE Certificate | No certification needed |
| Order Multiple | 1 piece |
| Product Type | Automatic Circuit Breaker |
| Extended Product Lifetime | Product Modularity |
| Wiring Diagram | 1SDM000068R0001 |
| Order Code US and Canada | XT2NE4160BFF000XXX |
| Current Type | AC/DC |
| Version | F |
| Rated Uninterrupted Current (I<sub>u</sub>) | 160 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | N |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Opening Time | CB with SOR 30 ms |
| Circuit Breaker Type to be Associated | Power Distribution |
