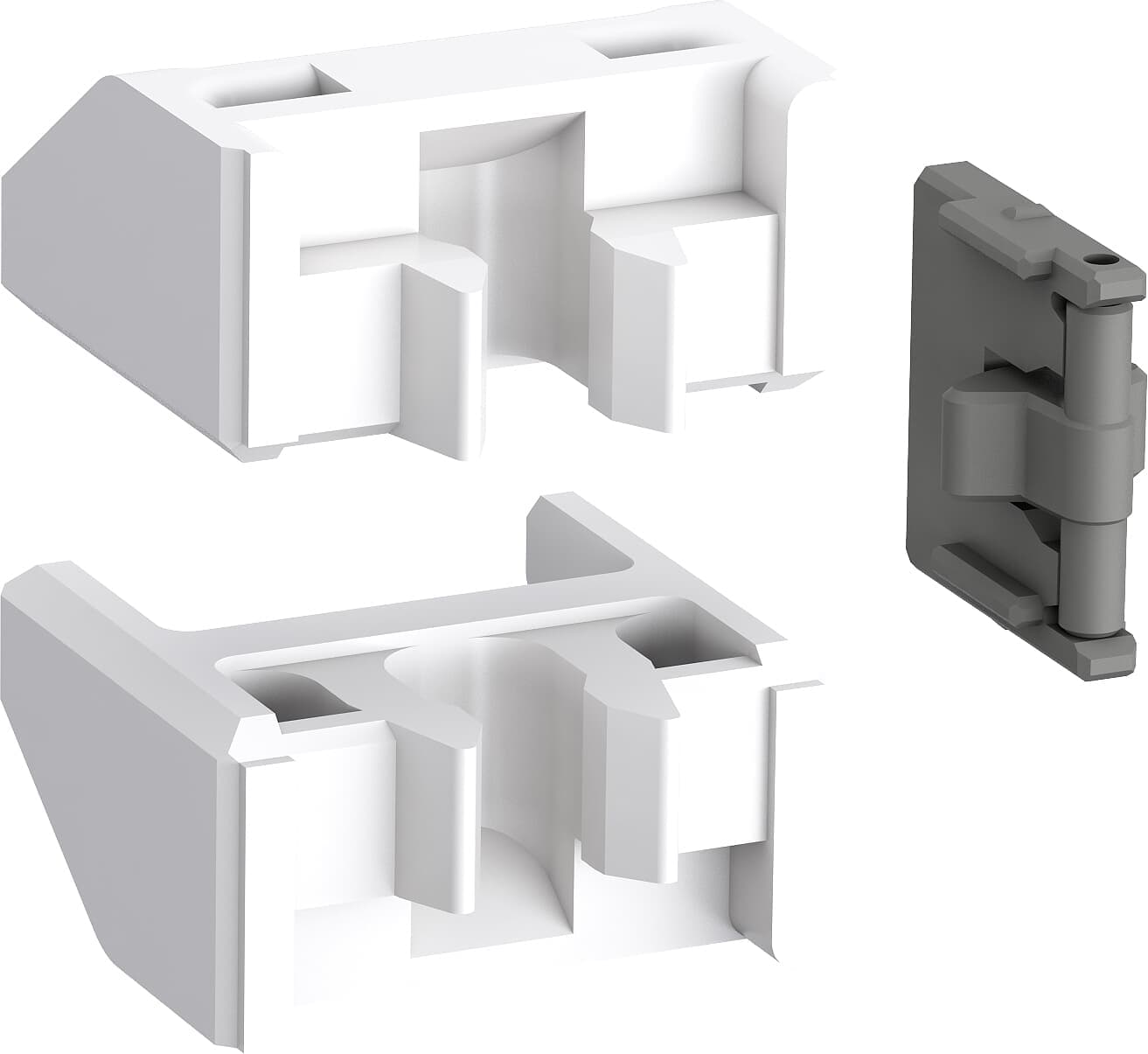

VM4
رقم القطعة: 1SBN030105T1000
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
وحدة تداخل ميكانيكي VM4 لملامسات AF09-AF38
المواصفات
| Extended Product Type | VM4 |
|---|---|
| Product ID | 1SBN030105T1000 |
| EAN | 3471523130609 |
| Catalog Description | VM4 Mechanical Interlock Unit |
| Long Description | VM4 is a mechanical interlock unit designed for the interlocking side-by-side without additional width of two 3-pole or 4-pole AF09...AF38, AFC09...AFC38, AFS09...AFS38 contactors. When mounted between two contactors, the VM4 mechanical interlock unit prevents one of the contactors from closing as long as the other contactor is closed. The mechanical interlock unit VM4 includes 2 fixing clips (BB4). |
| Display Name | VM4 |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101028M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 20 mm |
| Product Net Depth / Length | 10 mm |
| Product Net Height | 19.8 mm |
| Product Net Weight | 0.005 kg |
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Product Name | Mechanical Interlock Unit |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | SE-118824 |
| Declaration of Conformity - CE | 1SBD250007U1000 |
| Declaration of Conformity - UKCA | 1SBD250038U1000 |
| RINA Certificate | RINA_ELE084013XG |
| UL Certificate | UL-US-2017443-2 |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 180 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Gross Weight | 0.05 kg |
| Package Level 1 EAN | 3471523130609 |
| Package Level 2 Units | box 100 piece |
| Package Level 2 Gross Weight | 0.5 kg |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706550 |
| E-Number (Sweden) | 3210003 |
| Source URL | https://new.abb.com/products/1SBN030105T1000/vm4 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Control Products > Contactors > Block Contactors |
| ABB Classification IDs | 9AAC910006, 9AAC100109, 9AAC167263 |
| Suitable For | AF09 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| UL Listing Card | UL_E312527 |
