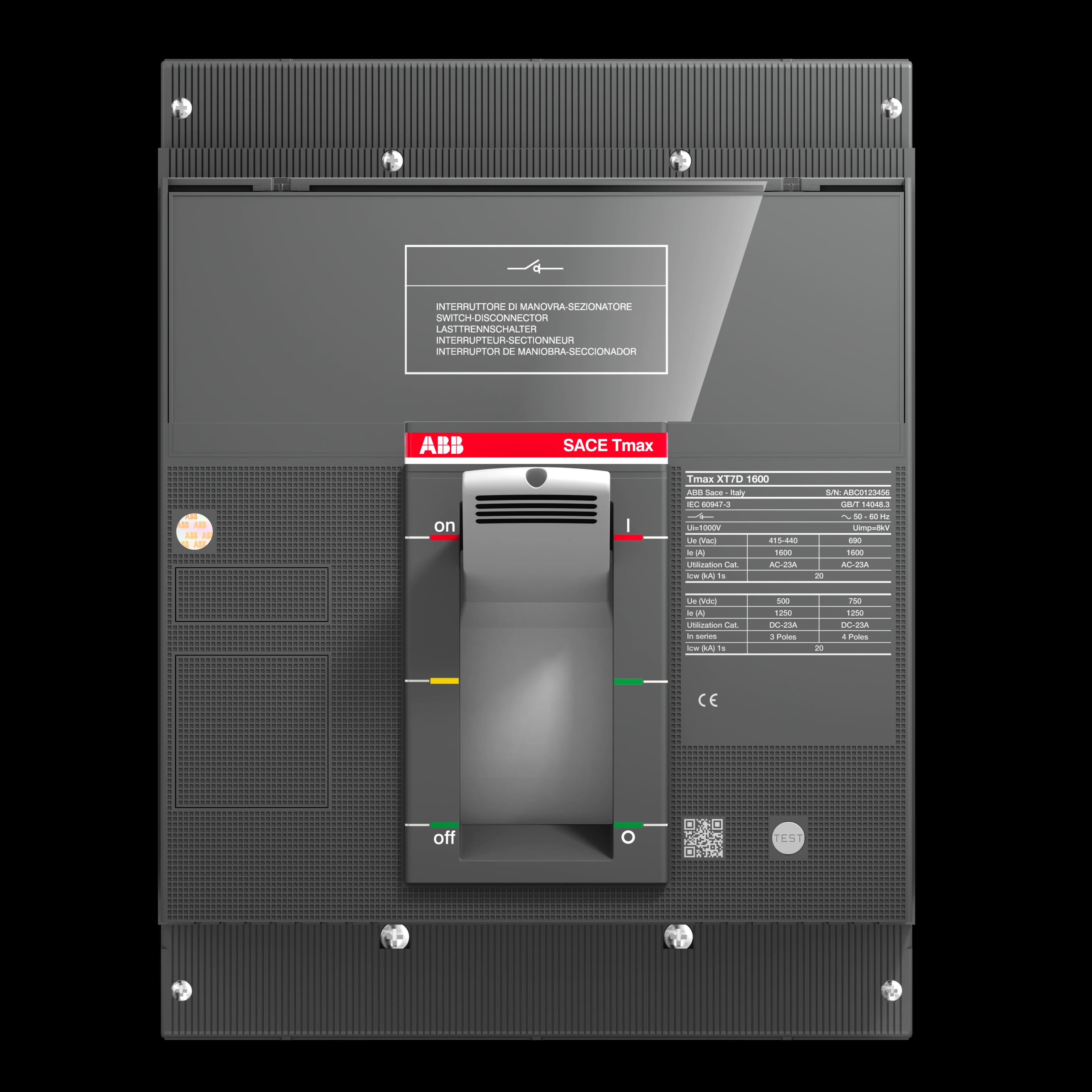

XT7D 1600 3p F F
رقم القطعة: 1SDA101908R1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

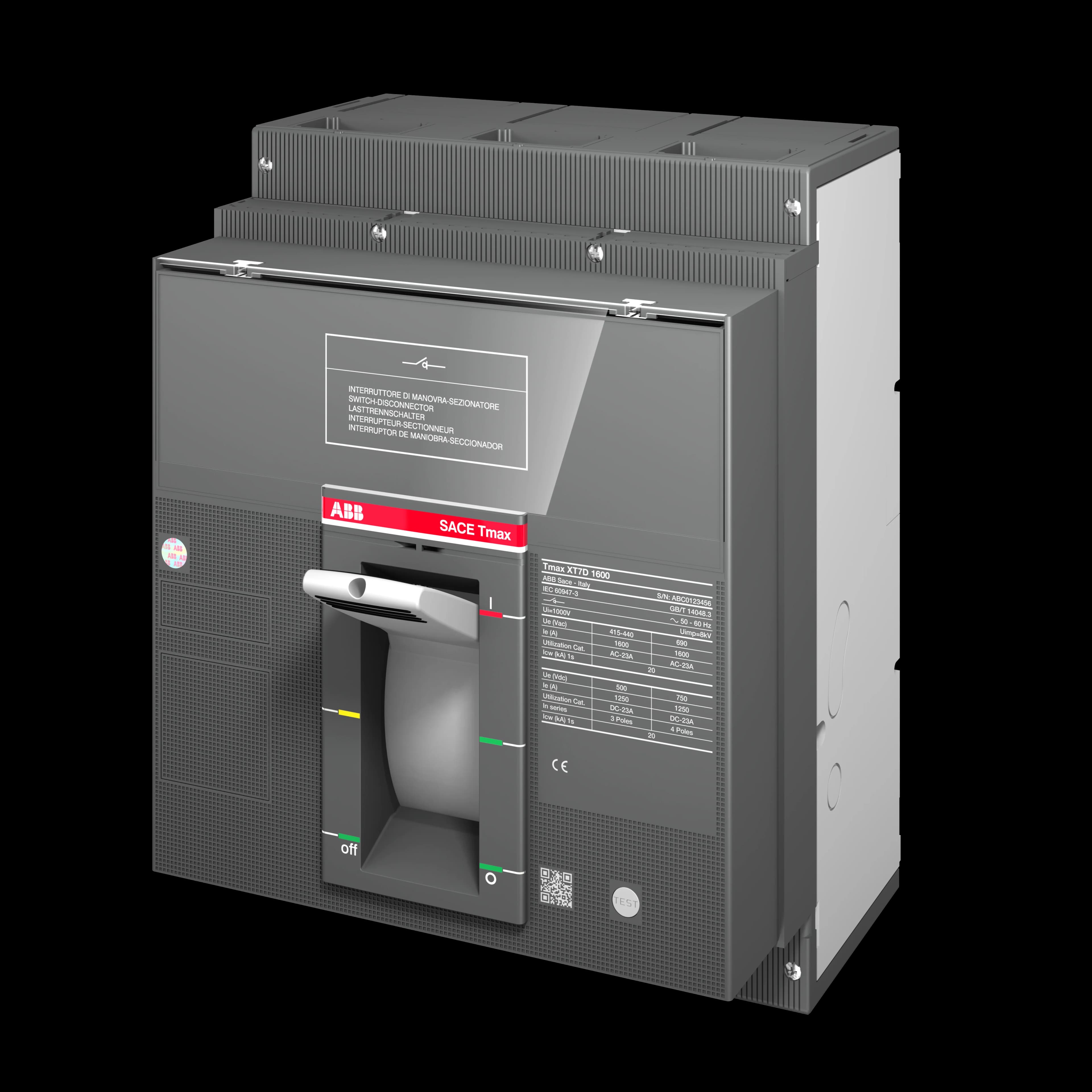

مفتاح فصل وعزل Tmax XT7D، 1600 أمبير، ثلاثي الأقطاب، ثابت، أطراف أمامية، آلية تشغيل بالرافعة
المواصفات
| Extended Product Type | XT7D 1600 3p F F |
|---|---|
| Product ID | 1SDA101908R1 |
| EAN | 8056221019521 |
| Catalog Description | XT7D 1600 3p F F |
| Long Description | SWITCH-DISCONNECTOR TMAX XT7D 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM |
| Display Name | XT7D 1600 3p F F |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Instructions and Manuals | 1SDH002013A1001 |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| Product Net Width | 210 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Height | 268 mm |
| Product Net Weight | 9.7 kg |
| Number of Poles | 3P |
| Standards | IEC60947-2 |
| Rated Operational Voltage | 690 V |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | 20 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Electrical Durability | 3000 cycle |
| Mechanical Durability | 10000 cycle |
| Power Loss | 282 W |
| Product Name | Moulded Case Circuit Breaker |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221019521 |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| E-Number (Norway) | 4380809 |
| Source URL | https://new.abb.com/products/1SDA101908R1/xt7d-1600-3p-f-f |
| ABB Taxonomy Path | Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT |
| ABB Classification IDs | 9AAC910006, 9AAC167301, 9AAC412850 |
| SCIP | 7d6cc5e2-c284-4b75-8391-53a2e6222111 Italy |
| Simplified SCIP | 43a61f6f-dc17-4cff-9f69-ea072c601f69 Croatia |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Environmental Information | 9AKK108467A6707 |
| Product Main Type | SACE Tmax XT |
| Mechanical Drawings | 1SDH002013A1101 |
| Rated Voltage (U<sub>r</sub>) | 690 V |
| Rated Current (I<sub>n</sub>) | 1600 A |
| Order Multiple | 1 piece |
| Product Type | Switch Disconnector |
| Extended Product Lifetime | Product Modularity |
| Wiring Diagram | 1SDM000002A1001 |
| Order Code US and Canada | XT7DE316FDFF000XXX |
| Current Type | AC/DC |
| Version | F |
| Rated Uninterrupted Current (I<sub>u</sub>) | 1600 A |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
