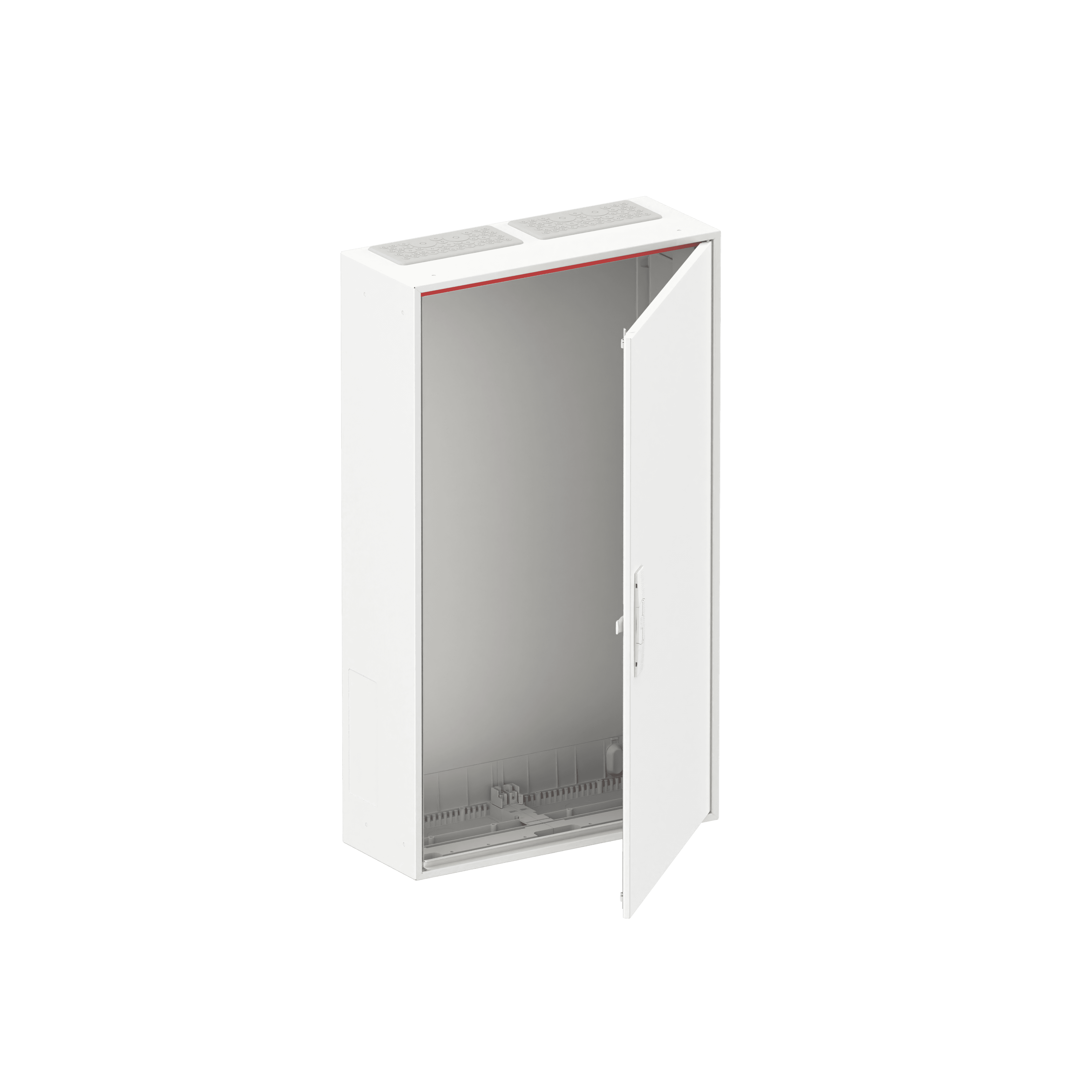

A26
رقم القطعة: 2CPX052026R9999
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
صندوق توزيع كهربائي A26
المواصفات
| Extended Product Type | A26 |
|---|---|
| Product ID | 2CPX052026R9999 |
| EAN | 4011617520269 |
| Catalog Description | ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 2, Rows: 6, 950 mm x 550 mm x 215 mm |
| Long Description | Wall-mounting cabinet, empty cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP44, Impact strength IK07, rated current 250 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, single-leaf door, door out of sheet steel, door opening angle 120 degree, cable entry on top via membrane flange mounted, on side via flange opening pre-punched, dimensions in mm (H x W x D): 950 x 550 x 215, Grid unit 6 GU, panel width 2, Space units 144, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame |
| Display Name | A26 |
| EPLAN Data | 9AAF603720_EPLAN |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| Instructions and Manuals | 2CPC133150M5601 |
| Product Net Width | 550 mm |
| Product Net Depth / Length | 215 mm |
| Product Net Height | 950 mm |
| Product Net Weight | 15.967 kg |
| Power Loss | Δt = 20K - Enclosures 51.6 W |
| Degree of Protection | IP44 |
| Width in Number of Modular Spacings | 24 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| REACH Declaration | 2CPC100005X0201 |
| RoHS Declaration | 2CPC100008X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | Product Not in WEEE Scope |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| EcoSolutions Profile | 9AKK108471A5802 |
| End Of Life Disassembling Instructions | 2CPC200001E0201 |
| Environmental Product Declaration - EPD | 2CPC000001E0201 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 94.87 % |
| Declaration of Conformity - CE | 2CPC100008X0201 |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 16.606 kg |
| Object Classification Code | U |
| ETIM 9 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
| Source URL | https://new.abb.com/products/2CPX052026R9999/a26 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Enclosures > Sub Distribution Boards > Sub Distribution Boards > ComfortLine A |
| ABB Classification IDs | 9AAC910006, 9AAC184268, 9AAC184279, 9AAF603725, 9AAF603720 |
| ETIM 10 | EC000058 - Empty cabinet |
| Dimension Diagram | 2CPC000014D0201 |
| Color | Traffic white |
| Rated Current (I<sub>n</sub>) | 250 A |
| Mounting Type | Surface mounted/recessed mounted/partially recessed mounted |
| Impact Resistance Rating | IK07 |
| Extended Product Lifetime | Product Durability |
| Configuration Type | pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| RoHS Date | 20260803 |
| REACH Date | 20260727 |
| Number of Rows | 6 |
| Cover Plate Type | Door |
| Door Type | Single |
| Accessories Available | Yes |
| DIN Place Units | 144 |
| Housing Material | Steel plate/plastic |
| Door Material | Steel Sheet |
| Cover Style | with Notch |
| RAL Number | RAL 9016 - Traffic White |
| Number of Modules | 144 |
| Protection Class | Isolated (Class II) |
| Built-In Depth (<em>t<sub>2</sub></em>) | 190 mm |
| Building Information Modeling – BIM | 9AKK107680A4423 |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper - 0 % |
| Material | sheet steel |
| Surface Finishing | Powder-coated |
| Number of Flange Openings | 2 |
| Number of Conduit Inlets | 102 |
| Number of Panel Heights | 6 |
| Enclosure Type | Wall-mounting cabinet |
| Section Width | 2 |
| Thickness | Cabinet Plate 0.9 mm |
