OT200E04P
رقم القطعة: 1SCA022713R4930
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

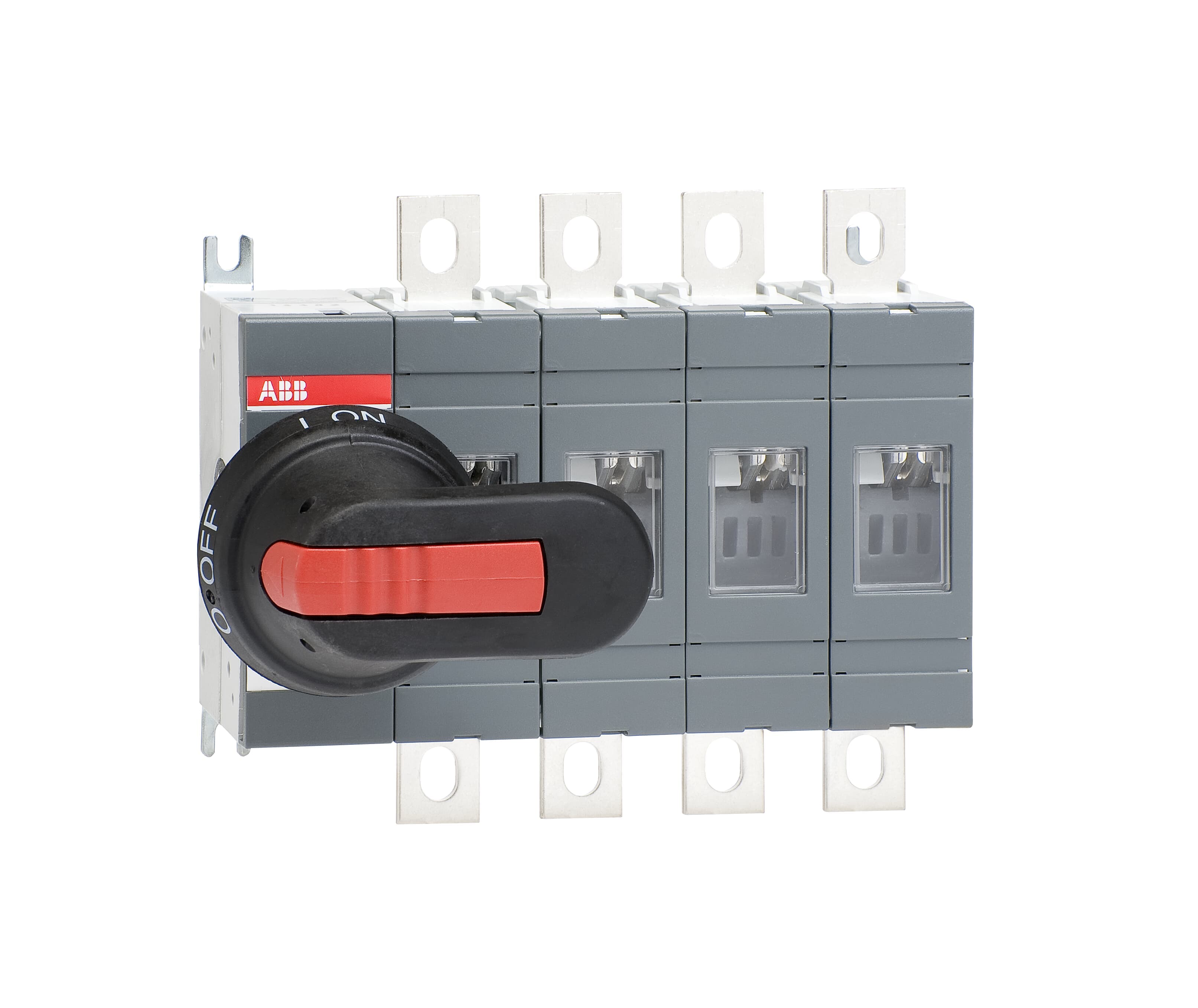

مفتاح فصل OT200E04P، رباعي الأقطاب، 200 أمبير، تشغيل أمامي وتركيب على قاعدة
المواصفات
| Extended Product Type | OT200E04P |
|---|---|
| Product ID | 1SCA022713R4930 |
| EAN | 6417019228747 |
| Catalog Description | OT200E04P SWITCH-DISCONNECTOR |
| Long Description | 4-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included |
| Display Name | OT200E04P |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Product Net Width | 180.5 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Height | 150 mm |
| Product Net Weight | 1.8 kg |
| Number of Poles | 4P |
| Standards | IEC 60947-3 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 1 s 8 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC/EN 60664-1 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 12 kV |
| Mechanical Durability | 20000 |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Degree of Protection | Front IP00 |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Terminal Type | Lug terminals |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| A2L Certificate – IEC | 1SCC301337D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| UL Certificate | No certification needed |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| Package Level 1 Depth / Length | 190 mm |
| Package Level 1 Height | 145 mm |
| Package Level 1 Gross Weight | 2.1 kg |
| Package Level 1 EAN | 6417019228747 |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| UNSPSC | 39122221 |
| E-Number (Finland) | 3661306 |
| E-Number (Norway) | 4337851 |
| E-Number (Sweden) | 3171157 |
| Source URL | https://new.abb.com/products/1SCA022713R4930/ot200e04p |
| ABB Taxonomy Path | Low Voltage Products and Systems > Switches > Switch Disconnectors |
| ABB Classification IDs | 9AAC910006, 9AAC100796, 9AAC128880 |
| SCIP | 73b50007-7370-43db-b632-afd2ace9a2b9 Finland |
| Simplified SCIP | 952db535-b9e7-4396-b9b9-d0ae3329ff06 Germany |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Θ = 40 °C 200 A |
| BV Certificate | 1SCC301103D0201 |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| DNV GL Certificate | 1SCC301174D0204 |
| LR Certificate | 1SCC301144D0201 |
| GL Certificate | 1SCC301139D0201 |
| ATEX Certificate | No certification needed |
| Environmental Information | 1SCC301265D0201 |
| Country of Origin (CountryOfOrigin) | Finland |
| Special Functions | No |
| Mechanical Drawings | 1SCC301392F0001 |
| Conventional Thermal Current (I<sub>the</sub>) | Fully Enclosed 200 A |
| Color | Grey |
| Handle Color | Black |
| Distance Between Phases | Standard |
| Mounting Type | Base mounting |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (I<sub>nc</sub>) | (315 A fuse, 500 V) 100 kA |
| Rated Operational Current AC-21A (I<sub>e</sub>) | (380 ... 415 V) 200 A |
| Rated Operational Current AC-22A (I<sub>e</sub>) | (380 ... 415 V) 200 A |
| Rated Operational Current AC-23A (I<sub>e</sub>) | (380 ... 415 V) 200 A |
| Rated Operational Power AC-23A (P<sub>e</sub>) | (220 ... 240 V) 60 kW |
| Rated Short-Circuit Making Capacity (I<sub>cm</sub>) | (690 V) 30 kA |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Width | 20 mm |
| VDE Certificate | No certification needed |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
