XT6N 800 TMA 630-6300 3p F F
رقم القطعة: 1SDA107561R1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

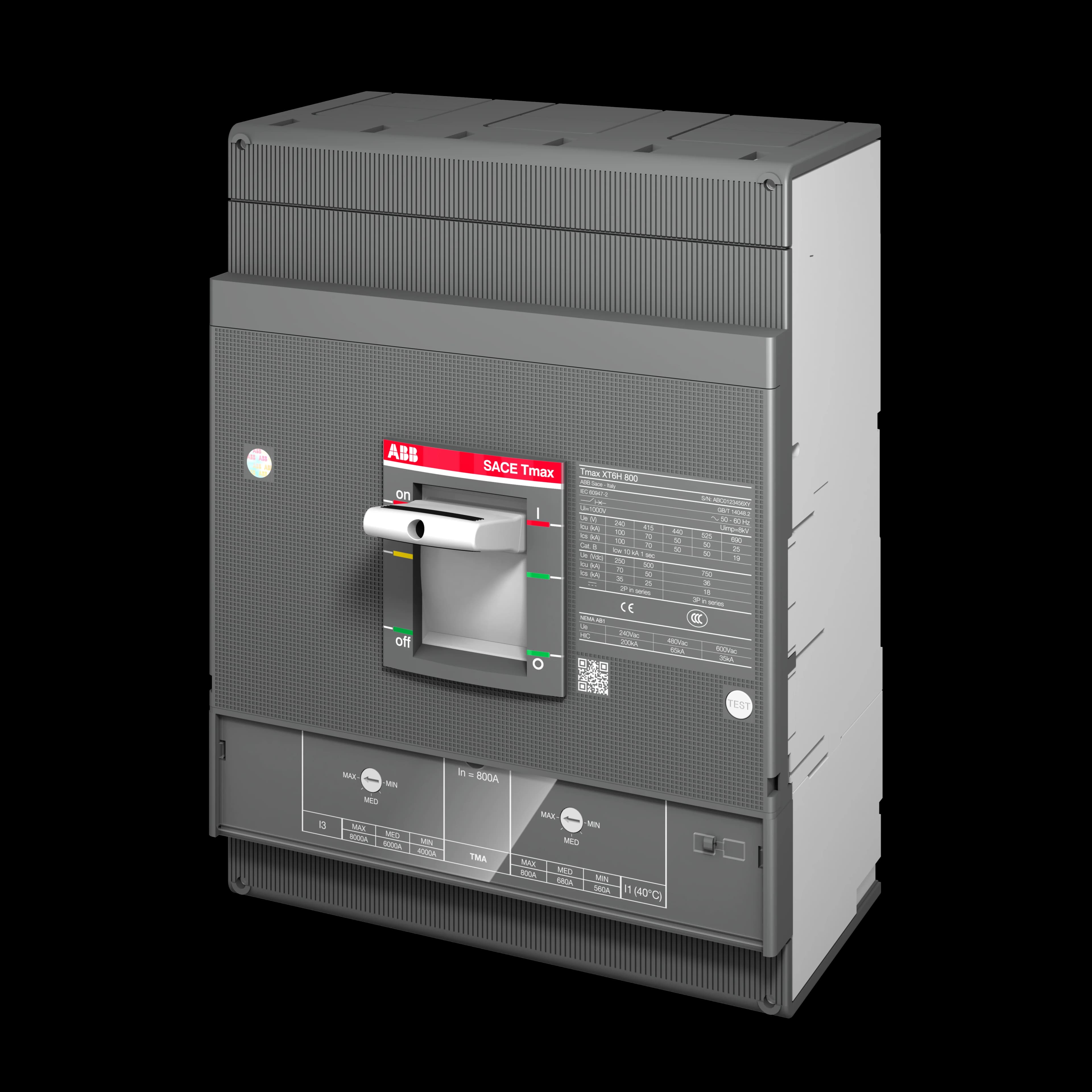

قاطع دائرة مصبوب XT6N 800 TMA 630-6300 3p F F
المواصفات
| Extended Product Type | XT6N 800 TMA 630-6300 3p F F |
|---|---|
| Product ID | 1SDA107561R1 |
| EAN | 8015644101749 |
| Catalog Description | XT6N 800 TMA 630-6300 3p F F |
| Long Description | C.BREAKER TMAX XT6N 800 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 630 I3=3150...6300 |
| Display Name | XT6N 800 TMA 630-6300 3p F F |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Instructions and Manuals | 1SDH002012A1001 |
| CAD Dimensional Drawing | 1SDH002065A1190 |
| Product Net Width | 210 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Height | 268 mm |
| Product Net Weight | 9.144 kg |
| Number of Poles | 3P |
| Standards | IEC60947-2 |
| Rated Operational Voltage | 690 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | 10 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Electrical Durability | 5000 cycle |
| Mechanical Durability | 20000 cycle |
| Power Loss | 34.4 W |
| Product Name | Moulded Case Circuit Breaker |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2355 |
| Environmental Product Declaration - EPD | 9AKK108468A9751 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 60 % |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Gross Weight | 9.625 kg |
| Package Level 1 EAN | 8015644101749 |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| eClass | V11.1 : 27370409 |
| E-Number (Norway) | 4380510 |
| Source URL | https://new.abb.com/products/1SDA107561R1/xt6n-800-tma-630-6300-3p-f-f |
| ABB Taxonomy Path | Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT |
| ABB Classification IDs | 9AAC910006, 9AAC167301, 9AAC412849 |
| Suitable for Product Class | SACE Tmax XT |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | (220 V AC) 70 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>) | (220 V AC) 70 kA |
| Rated Instantaneous Short-Circuit Current Setting (I<sub>i</sub>) | 3150…6300 A |
| Setting Range | 441…630 A |
| Environmental Information | 9AKK108467A6707 |
| Product Main Type | SACE Tmax XT |
| Mechanical Drawings | 1SDH002012A1101 |
| Rated Current (I<sub>n</sub>) | 630 A |
| Order Multiple | 1 piece |
| Product Type | Automatic Circuit Breaker |
| Extended Product Lifetime | Product Modularity |
| Wiring Diagram | 1SDM000005A1001 |
| Order Code US and Canada | XT6NE3630BFF000XXX |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Version | F |
| Rated Uninterrupted Current (I<sub>u</sub>) | 800 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | N |
| Sub-type | XT6 |
| Terminal Connection Type | Front |
| Circuit Breaker Type to be Associated | Power Distribution |
