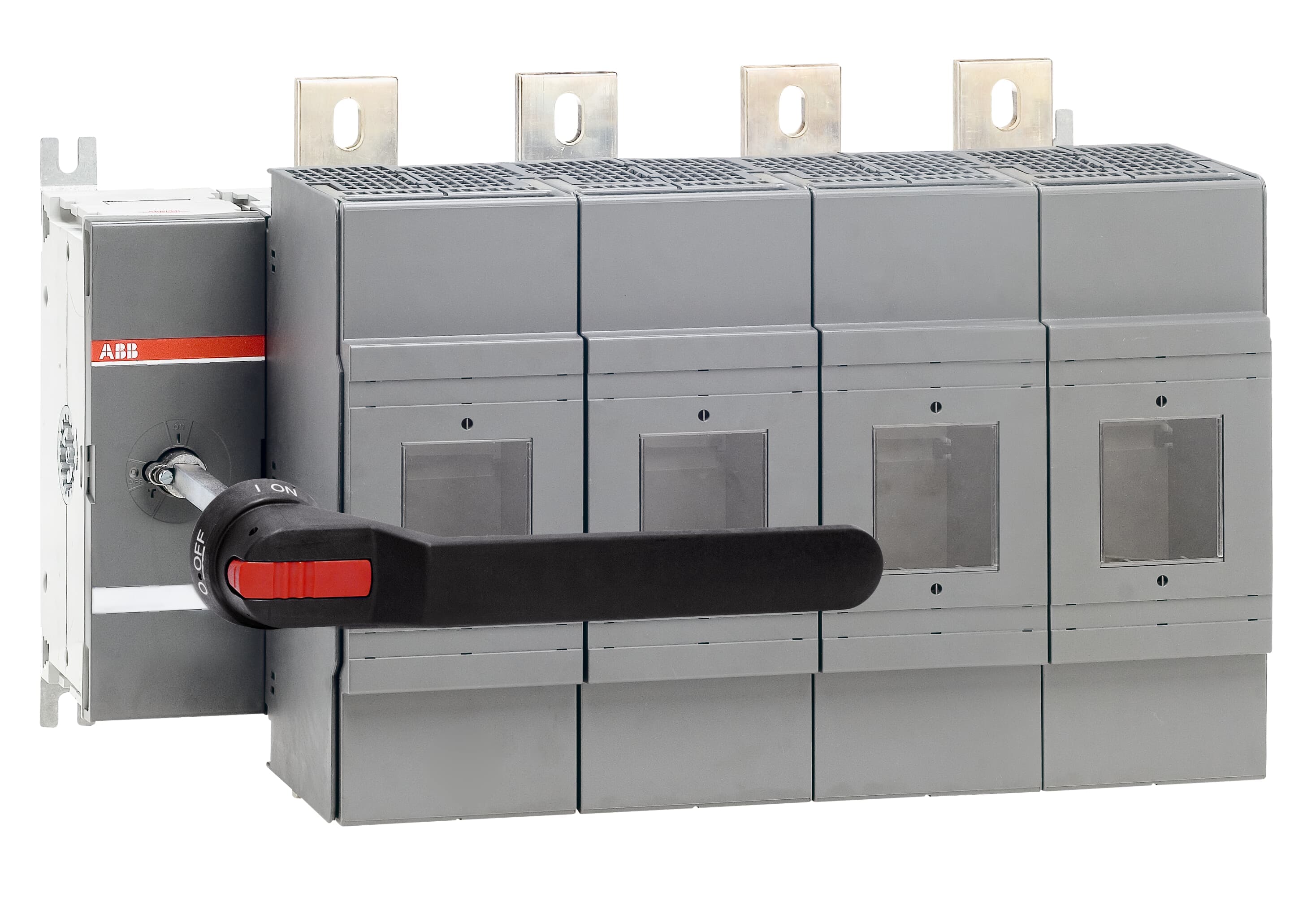

OS1250D04N2P
رقم القطعة: 1SCA105248R1001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
مفتاح فصل بفيوز OS1250D04N2P، تيار 1250 أمبير، أربعة أقطاب، محايد مفصول، DIN، مناسب لفيوز NH4
المواصفات
| Extended Product Type | OS1250D04N2P |
|---|---|
| Product ID | 1SCA105248R1001 |
| EAN | 6417019394145 |
| Catalog Description | OS1250D04N2P SWITCH FUSE |
| Long Description | Switch-disconnector fuse, 1250A, 4-pole, DIN 4, front operated, switched non-fusible fourth pole, handle and shaft included. |
| Display Name | OS1250D04N2P |
| Country of Origin | Finland |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311022M0207 |
| Product Net Width | 539 mm |
| Product Net Depth / Length | 366 mm |
| Product Net Height | 356 mm |
| Product Net Weight | 35.485 kg |
| Number of Poles | 4P |
| Standards | IEC 60947-3 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 1 s 40 kiloampere rms |
| Rated Insulation Voltage (U<sub>i</sub>) | 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 12 kV |
| Power Loss | at Rated Operating Conditions per Pole 75 W |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Tightening Torque | 50 ... 75 N·m |
| Terminal Type | Lug terminals |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311203D0201 |
| A2L Certificate – IEC | 1SCC311210D0201 |
| CCC Certificate | CCC OS1200-1250 2015.pdf |
| Declaration of Conformity - CE | 1SCC311127D2703 |
| UL Certificate | No certification needed |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 394 mm |
| Package Level 1 Depth / Length | 584 mm |
| Package Level 1 Height | 385 mm |
| Package Level 1 Gross Weight | 38.085 kg |
| Package Level 1 EAN | 6417019394145 |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| E-Number (Finland) | 3661003 |
| Source URL | https://new.abb.com/products/1SCA105248R1001/os1250d04n2p |
| ABB Taxonomy Path | Low Voltage Products and Systems > Switches > Switch Fuses |
| ABB Classification IDs | 9AAC910006, 9AAC100791, 9AAC128878 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Θ = 40 °C 1250 A |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| DNV GL Certificate | 1SCC311131D0203 |
| ATEX Certificate | No certification needed |
| Mechanical Drawings | OS1250_D_B_04.igs |
| Conventional Thermal Current (I<sub>the</sub>) | Fully Enclosed 1000 A |
| Handle Type | Pistol |
| Fuse Size | NH4 |
| Fuse System | DIN |
| Rated Current (I<sub>n</sub>) | Main Circuit 1250 A |
| Mounting Type | Base mounting |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Rated Conditional Short-Circuit Current (I<sub>nc</sub>) | (500 V) 100 kA |
| Rated Operational Current AC-21A (I<sub>e</sub>) | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-22A (I<sub>e</sub>) | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-23A (I<sub>e</sub>) | (380 ... 415 V) 1000 A |
| Rated Operational Power AC-23A (P<sub>e</sub>) | (220 ... 240 V) 315 kW |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Width | 50 mm |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Rated Operational Current AC-21B (I<sub>e</sub>) | (500 V) 1250 A |
| Rated Operational Current AC-22B (I<sub>e</sub>) | (500 V) 1250 A |
| Rated Operational Current AC-23B (I<sub>e</sub>) | (500 V) 1000 A |
