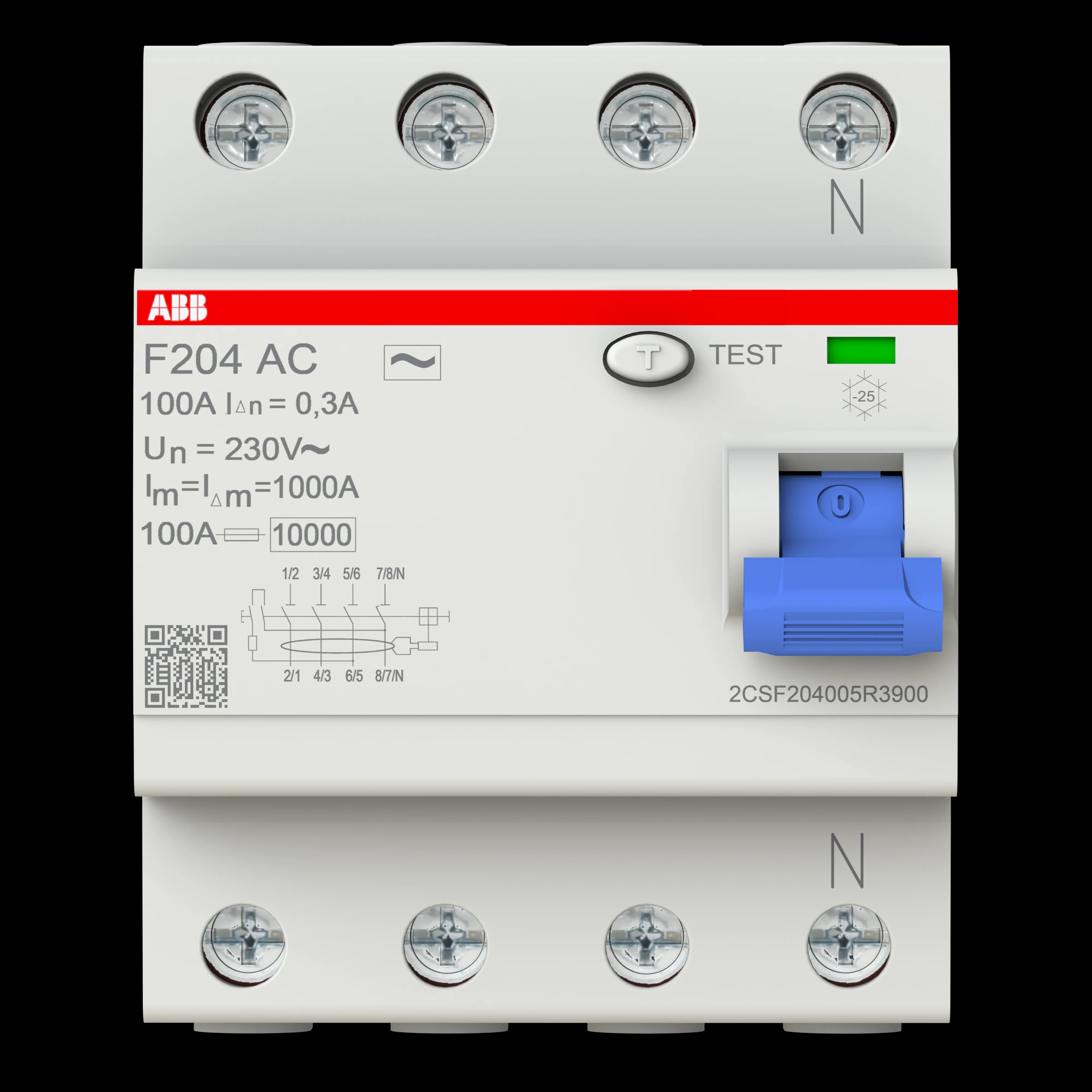

F204 AC-100/0.3 IEC
رقم القطعة: 2CSF204005R3900
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
قاطع دائرة بالتيار المتبقي، رباعي الأقطاب F204 AC-100/0.3 IEC، رباعي الأقطاب
المواصفات
| Extended Product Type | F204 AC-100/0.3 IEC |
|---|---|
| Product ID | 2CSF204005R3900 |
| EAN | 8012542937203 |
| Catalog Description | Residual Current Circuit Breaker F200 - 4P - 300 mA - 100 A - Type AC |
| Long Description | The RCCBs F200 series assures protection to people and installations against fault current to earth. This product is manufactured according to international IEC standards, for the markets where it is required. |
| Display Name | F204 AC-100/0.3 IEC |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| Instructions and Manuals | 9AKK107991A6127 |
| Product Net Width | 70 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Height | 85 mm |
| Product Net Weight | 380 g |
| Number of Poles | 4P |
| Standards | IEC 61008 |
| Rated Operational Voltage | 230 … 400 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | 500 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Power Loss | at Rated Operating Conditions per Pole 8.2 W |
| Wire Stripping Length | Top 12.7 mm |
| Degree of Protection | Terminals IP20 |
| Tightening Torque | 2.8 N·m |
| Terminal Type | Screw Terminals |
| Width in Number of Modular Spacings | 4 |
| Ambient Air Temperature | Operation -25 ... 55 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Pollution Degree | 2 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| REACH Declaration | 9AKK108467A9482 |
| RoHS Declaration | 9AKK106713A5602 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| EcoSolutions Profile | 9AKK108469A3794 |
| End Of Life Disassembling Instructions | 9AKK108470A1748 |
| Environmental Product Declaration - EPD | 9AKK108469A9642 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 82.05 % |
| Declaration of Conformity - CE | 9AKK106713A5602 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.415 kg |
| Object Classification Code | F |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
| eClass | V11.0 : 27142201 |
| IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Source URL | https://new.abb.com/products/2CSF204005R3900/f204-ac-100-0-3-iec |
| ABB Taxonomy Path | Low Voltage Products and Systems > Modular DIN Rail Products > Residual Current Devices RCDs > Residual Current Devices RCDs > F204 |
| ABB Classification IDs | 9AAC910006, 9AAC100505, 9AAC202084 |
| SCIP | e8229506-bdcb-47ec-b10f-6ae72c1a19bf Italy |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz |
| ETIM 10 | EC000003 - Residual current circuit breaker (RCCB) |
| Mounting Position | Any |
| Environmental Information | Refer to RoHS |
| Rated Voltage (U<sub>r</sub>) | 230/400 V |
| Rated Current (I<sub>n</sub>) | 100 A |
| Mounting Type | DIN-Rail |
| Rated Conditional Short-Circuit Current (I<sub>nc</sub>) | 10 kA |
| Extended Product Lifetime | Product Durability |
| Connecting Capacity | Busbar 10 mm² |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20211115 |
| REACH Date | 20240429 |
| Accessory Type | Auxiliary contact |
| Accessories Available | Yes |
| RAL Number | Similar to RAL 7035 |
| Number of Modules | 4 |
| Built-In Depth (<em>t<sub>2</sub></em>) | 69 mm |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Screw Terminal Type | Cage Terminal |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper - 0 % |
| Type of Residual Current | Type AC |
| Rated Residual Current | 300 mA |
| Frequency (<i>f</i>) | 50/60 Hz |
| Input Voltage Type | AC |
| Carbon Footprint (Full Lifecycle) | 17.157668 kg CO₂ eq |
| Offered with Takeback Services | Take Back for Recycling |
| Power Supply Connection | Arbitrary |
| Test Voltage (Ut) | 110-254 V |
| Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Right |
| Maximum Surge Current | 0.25 kA |
| Leakage Current Type | AC |
| Options Provided | None |
| Rated Cross-Section | 4 - Multi-Wired 0...35 mm² |
