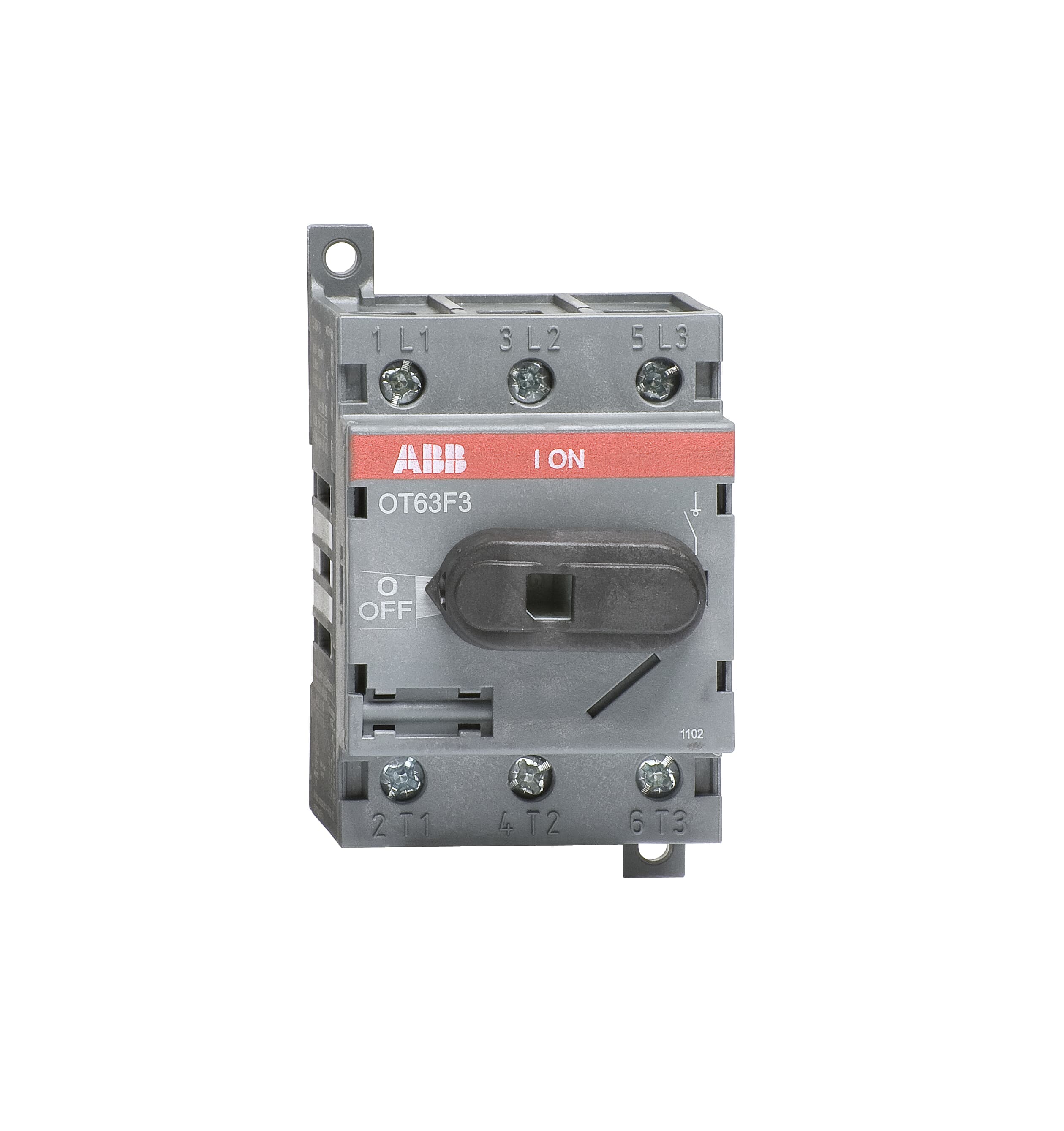

OT63F3
رقم القطعة: 1SCA105332R1001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
مفتاح فصل OT63F3، 63 أمبير، ثلاثي الأقطاب، تركيب على سكة DIN
المواصفات
| Extended Product Type | OT63F3 |
|---|---|
| Product ID | 1SCA105332R1001 |
| EAN | 6417019392912 |
| Catalog Description | OT63F3 SWITCH-DISCONNECTOR |
| Long Description | 3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included |
| Display Name | OT63F3 |
| Country of Origin | Finland |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | BRAPR001EXPU |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301064M0212 |
| Product Net Width | 52.5 mm |
| Product Net Depth / Length | 72.5 mm |
| Product Net Height | 91.5 mm |
| Product Net Weight | 0.25 kg |
| Number of Poles | 3P |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 1 s 1.5 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC/EN 60664-1 750 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Mechanical Durability | 20000 |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x Cu 1.5…4 mm² |
| Wire Stripping Length | Main Circuit 10-12 mm |
| Degree of Protection | Front IP20 |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | acc. IEC 60947-1 2 N·m |
| Terminal Type | Screw Terminals |
| Maximum Operating Voltage UL/CSA | 600 V |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp |
| Tightening Torque UL/CSA | 18 in·lb |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Environmental Product Declaration - EPD | 1SCC301279D0201 |
| A2L Certificate – IEC | 1SCC301335D0201 |
| Declaration of Conformity - CE | 1SCC301167D2704 |
| UL Certificate | cULus certificate OT16-80 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 63 mm |
| Package Level 1 Depth / Length | 103 mm |
| Package Level 1 Height | 85 mm |
| Package Level 1 Gross Weight | 0.27 kg |
| Package Level 1 EAN | 6417019392912 |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| E-Number (Finland) | 3601448 |
| E-Number (Norway) | 4363526 |
| E-Number (Sweden) | 3170940 |
| Source URL | https://new.abb.com/products/1SCA105332R1001/ot63f3 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Switches > Switch Disconnectors |
| ABB Classification IDs | 9AAC910006, 9AAC100796, 9AAC203909 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Θ = 40 °C 63 A |
