OT63FT4N2
رقم القطعة: 1SCA105393R1001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

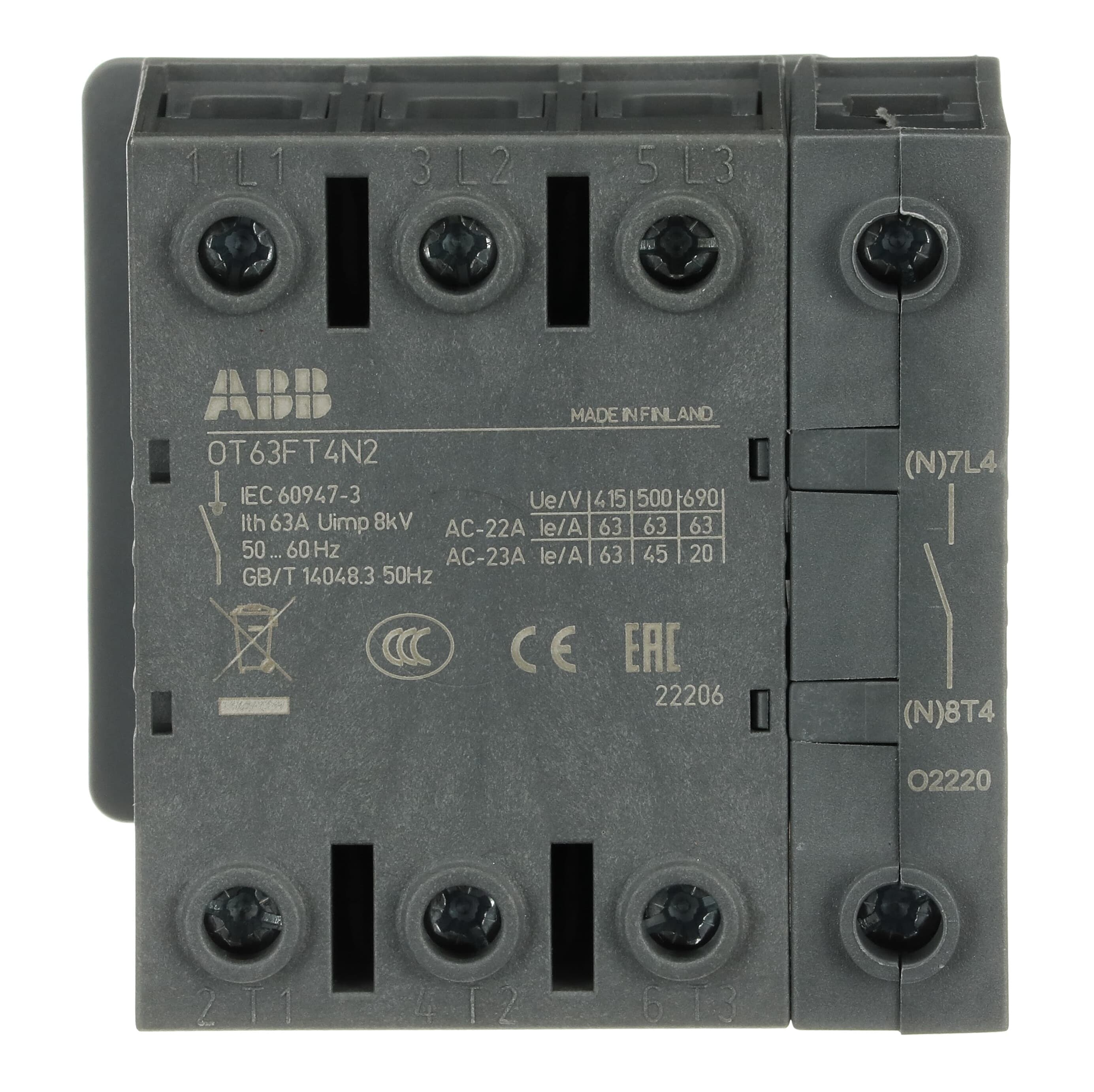

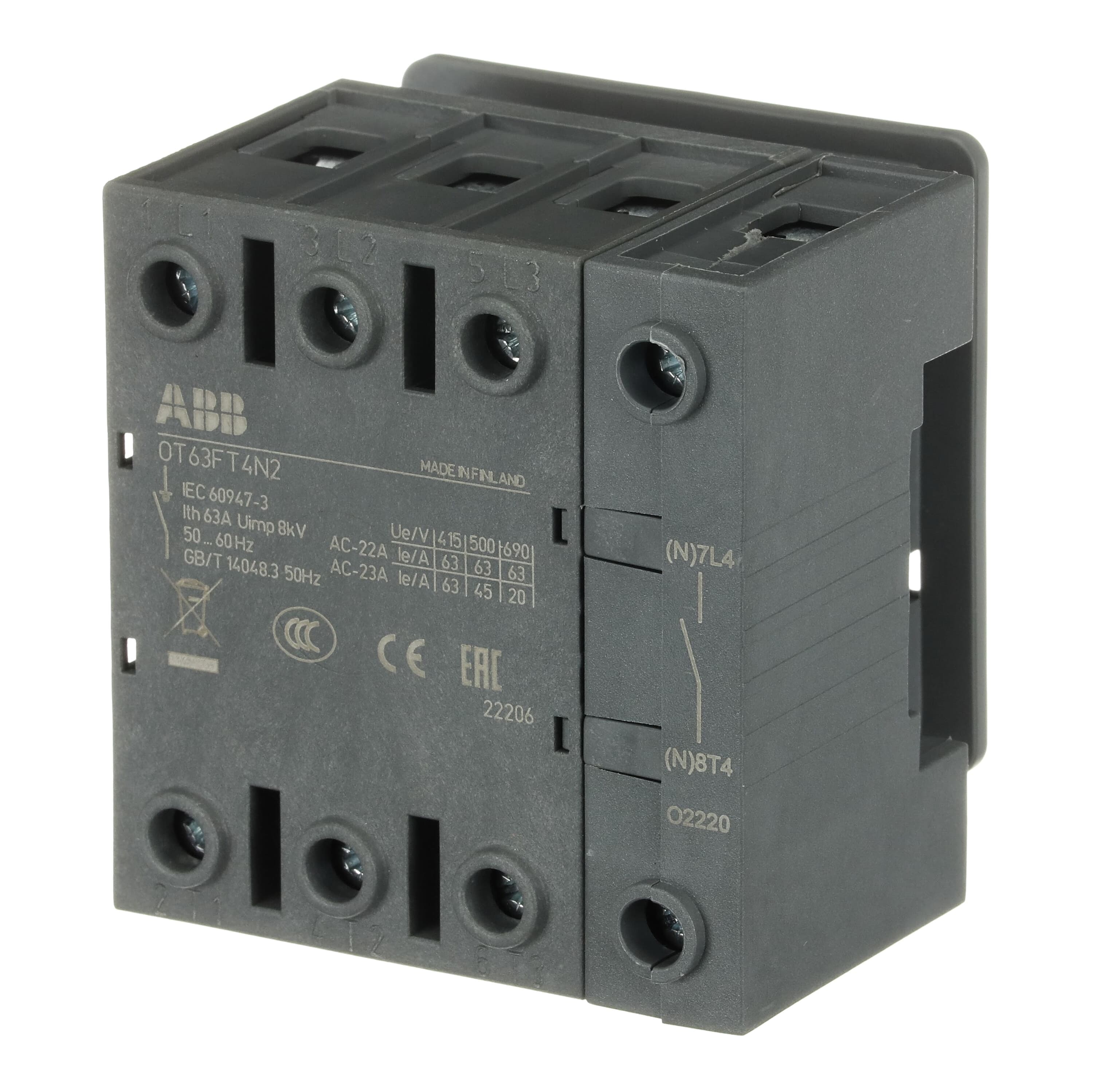

مفتاح فصل OT63FT4N2، 63 أمبير، رباعي الأقطاب، تركيب على الباب
المواصفات
| Extended Product Type | OT63FT4N2 |
|---|---|
| Product ID | 1SCA105393R1001 |
| EAN | 6417019393285 |
| Catalog Description | OT63FT4N2 SWITCH-DISCONNECTOR |
| Long Description | 4-pole, front operated, door mounted switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle is not included |
| Display Name | OT63FT4N2 |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301063M0006 |
| Product Net Width | 70 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Height | 72 mm |
| Product Net Weight | 0.32 kg |
| Number of Poles | 4P |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 1 s 1.5 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC/EN 60664-1 750 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Mechanical Durability | 20000 |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x Cu 1.5…4 mm² |
| Wire Stripping Length | Main Circuit 10-12 mm |
| Degree of Protection | Front IP20 |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | acc. IEC 60947-1 2 N·m |
| Terminal Type | Screw Terminals |
| Maximum Operating Voltage UL/CSA | 600 V |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp |
| Tightening Torque UL/CSA | 18 in·lb |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Environmental Product Declaration - EPD | 1SCC301279D0201 |
| A2L Certificate – IEC | 1SCC301335D0201 |
| Declaration of Conformity - CE | 1SCC301167D2704 |
| UL Certificate | cULus certificate OT16-80 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 84 mm |
| Package Level 1 Height | 88 mm |
| Package Level 1 Gross Weight | 0.34 kg |
| Package Level 1 EAN | 6417019393285 |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| E-Number (Finland) | 3601456 |
| E-Number (Norway) | 4363541 |
| E-Number (Sweden) | 3171085 |
| Source URL | https://new.abb.com/products/1SCA105393R1001/ot63ft4n2 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Switches > Switch Disconnectors |
| ABB Classification IDs | 9AAC910006, 9AAC100796, 9AAC203909 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Θ = 40 °C 63 A |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| ATEX Certificate | No certification needed |
| Environmental Information | 1SCC301263D0201 |
| Country of Origin (CountryOfOrigin) | Finland |
| Special Functions | No |
| Mechanical Drawings | 1SCC301456F0001 |
| Conventional Thermal Current (I<sub>the</sub>) | Fully Enclosed 63 A |
| Color | Grey |
| Distance Between Phases | Standard |
| Mounting Type | Door mounting |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (I<sub>nc</sub>) | (100 A fuse, ≤415 V) 50 kA |
| Rated Operational Current AC-21A (I<sub>e</sub>) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-22A (I<sub>e</sub>) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-23A (I<sub>e</sub>) | (380 ... 415 V) 63 A |
| Rated Operational Power AC-23A (P<sub>e</sub>) | (220 ... 240 V) 11 kW |
| Rated Short-Circuit Making Capacity (I<sub>cm</sub>) | (690 V) 2.1 kA |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| VDE Certificate | No certification needed |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Cable Cross-Section | Cu 1.5 ... 35 mm² |
| Ampere Rating | 60 A |
