OTDC25F3
رقم القطعة: 1SCA121458R1001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

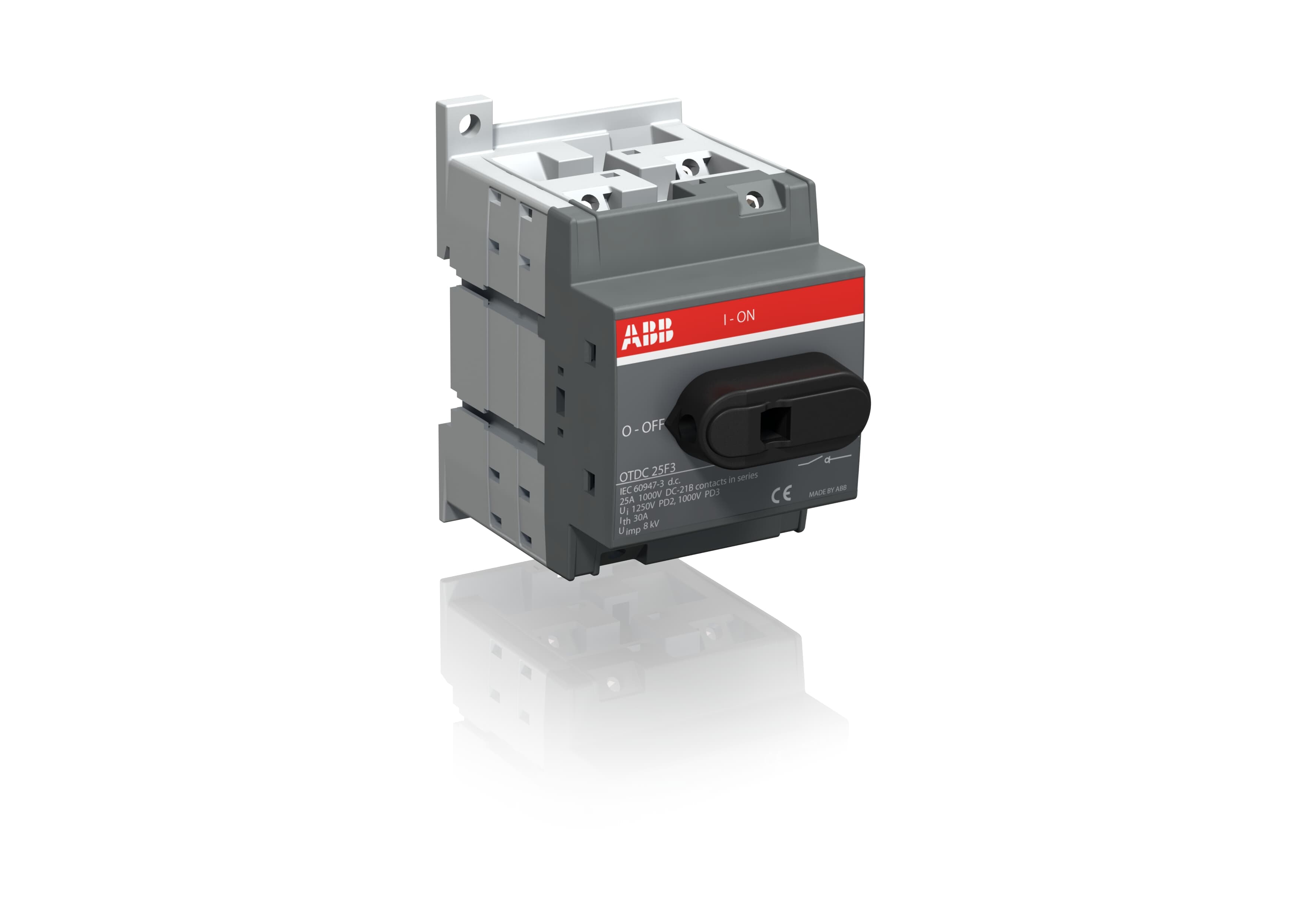

مفتاح فصل للتيار المستمر OTDC25F3، ثلاثي الأقطاب
المواصفات
| Extended Product Type | OTDC25F3 |
|---|---|
| Product ID | 1SCA121458R1001 |
| EAN | 6417019526133 |
| Catalog Description | OTDC25F3 DC Switch-disconnector |
| Long Description | OTDC25F3 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 1000 VDC 25 A single circuit |
| Display Name | OTDC25F3 |
| Country of Origin | Estonia |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301079M0206 |
| Product Net Width | 52.5 mm |
| Product Net Depth / Length | 77.6 mm |
| Product Net Height | 89 mm |
| Product Net Weight | 0.2 kg |
| Number of Poles | 3P |
| Standards | IEC 60947-1, -3 |
| Rated Operational Voltage | 1000 V |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | (1000 V DC) 0.8 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Power Loss | at Rated Operating Conditions per Pole 0.3 W |
| Wire Stripping Length | Main Circuit 55 … 11 mm |
| Degree of Protection | Front IP20 |
| Recommended Screw Driver | Main Circuit Torx |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Terminal Type | Screw Terminals |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| CCC Certificate | CQC2012010302579872 |
| Declaration of Conformity - CE | 1SCC301192D2704 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 64 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.2 kg |
| Package Level 1 EAN | 6417019526133 |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| UNSPSC | 39122233 |
| E-Number (Finland) | 3601355 |
| E-Number (Norway) | 4363634 |
| E-Number (Sweden) | 3134020 |
| Source URL | https://new.abb.com/products/1SCA121458R1001/otdc25f3 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Switches > DC Switch-Disconnectors |
| ABB Classification IDs | 9AAC910006, 9AAC187432, 9AAC178847 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Θ = 40 °C 32 A |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| DNV GL Certificate | 1SCC301231D0201 |
| Environmental Information | NA |
| Shaft Diameter | 6 mm |
| Special Functions | No |
| Conventional Thermal Current (I<sub>the</sub>) | Fully Enclosed 32 A |
| Handle Color | Black |
| Handle Type | Knob |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Mounting Type | Base mounting, DIN-rail mounting |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Short-Circuit Making Capacity (I<sub>cm</sub>) | (1000 V DC) 0.8 kA |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Cable Cross-Section | 2.5 ... 16 mm² |
| Product Frame Size | XS |
| Number of Circuits | 1 |
| Positive Opening Operation Torque (Direct Opening Action) | 0.4 … 0.8 N·m |
| Rated Operational Current DC-21B (I<sub>e</sub>) | (1000 V) 25 A |
| Utilization | Photovoltaic |
