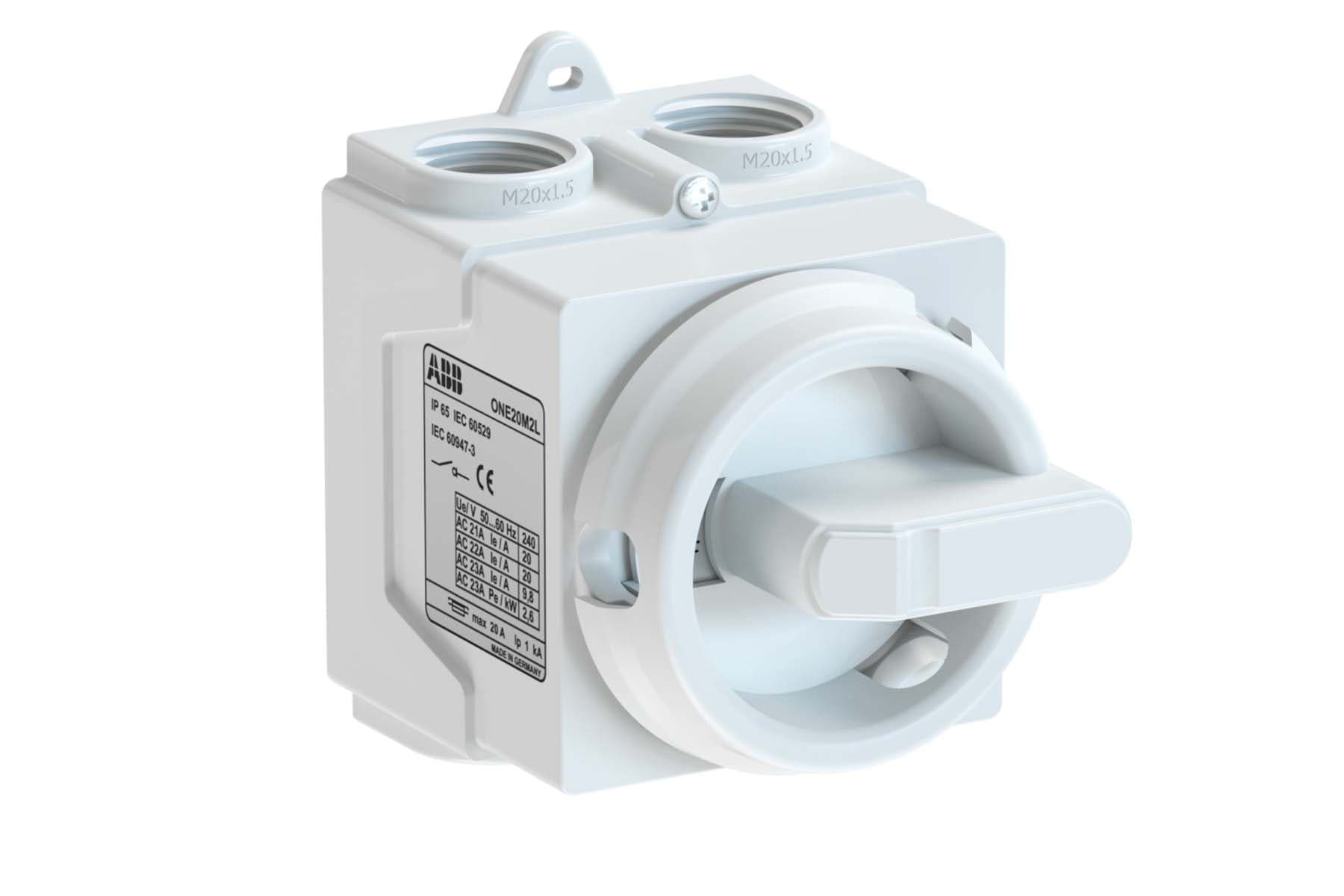

ONE20M2W
رقم القطعة: 1SCA138456R1001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
مفتاح فصل داخل صندوق ONE20M2W، قطبان، مقبض أبيض
المواصفات
| Extended Product Type | ONE20M2W |
|---|---|
| Product ID | 1SCA138456R1001 |
| EAN | 6417019667560 |
| Catalog Description | ONE20M2W Enclosed Switch Disconnector |
| Long Description | Encl. Switch Disconnector, 2-p. 230V AC23 15.2A, 2.6kW. Plastic enclosure. IP67. White Round handle. The plastic enclosed switch disconnector, is well suited for commersial and residential use. There are 3 color alternatives available, red/yellow, dark grey, and white. Typical applications could be fans, pumps, kitchen appliancies etc. The product withstand water and rain, acc. to class IP67, and is well suited for indoor and outdoor us. The plastic is UV protected. Two cable glands are included in the delivery. The terminals are easily available, thanks to the enclosure design and the removable switch. PE terminal included. |
| Display Name | ONE20M2W |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC390135M0205 |
| Product Net Width | 65 mm |
| Product Net Depth / Length | 84 mm |
| Product Net Height | 92 mm |
| Product Net Weight | 0.11 kg |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 2P |
| Standards | IEC 60947-1, -3 |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC/EN 60664-1 690 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Power Loss | at Rated Operating Conditions per Pole 0.3 W |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 4 mm² |
| Wire Stripping Length | 7 mm |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 1.1 N·m |
| Terminal Type | Screw Terminals |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Declaration of Conformity - CE | 1SCC343001D2702 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Depth / Length | 103 mm |
| Package Level 1 Height | 66 mm |
| Package Level 1 Gross Weight | 0.15 kg |
| Package Level 1 EAN | 6417019667560 |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| E-Number (Finland) | 3638750 |
| Source URL | https://new.abb.com/products/1SCA138456R1001/one20m2w |
| ABB Taxonomy Path | Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
| ABB Classification IDs | 9AAC910006, 9AAC554284, 9AAC180552 |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Country of Origin (CountryOfOrigin) | Finland |
| Mechanical Drawings | ONE926584RM20.stp |
| Conventional Thermal Current (I<sub>the</sub>) | Fully Enclosed 20 A |
| Color | RAL9003 / RAL7035 |
| Handle Color | White |
| Handle Type | Round |
| Rated Operational Current AC-21A (I<sub>e</sub>) | (400 V) 20 A |
| Rated Operational Current AC-22A (I<sub>e</sub>) | (230 V) Single Phase 20 A |
| Rated Operational Current AC-23A (I<sub>e</sub>) | (230 V) Single Phase 15.2 A |
| Rated Operational Power AC-23A (P<sub>e</sub>) | (230 V) Single Phase 2.6 kW |
| Cable Cross-Section | 0.75 ... 4 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM20 / 2xM20 |
| Enclosure Material | Plastic |
| Impact Resistance Rating | Housing IK09 |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
