OT100G3-4BSN2
رقم القطعة: 1SCA162513R1001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

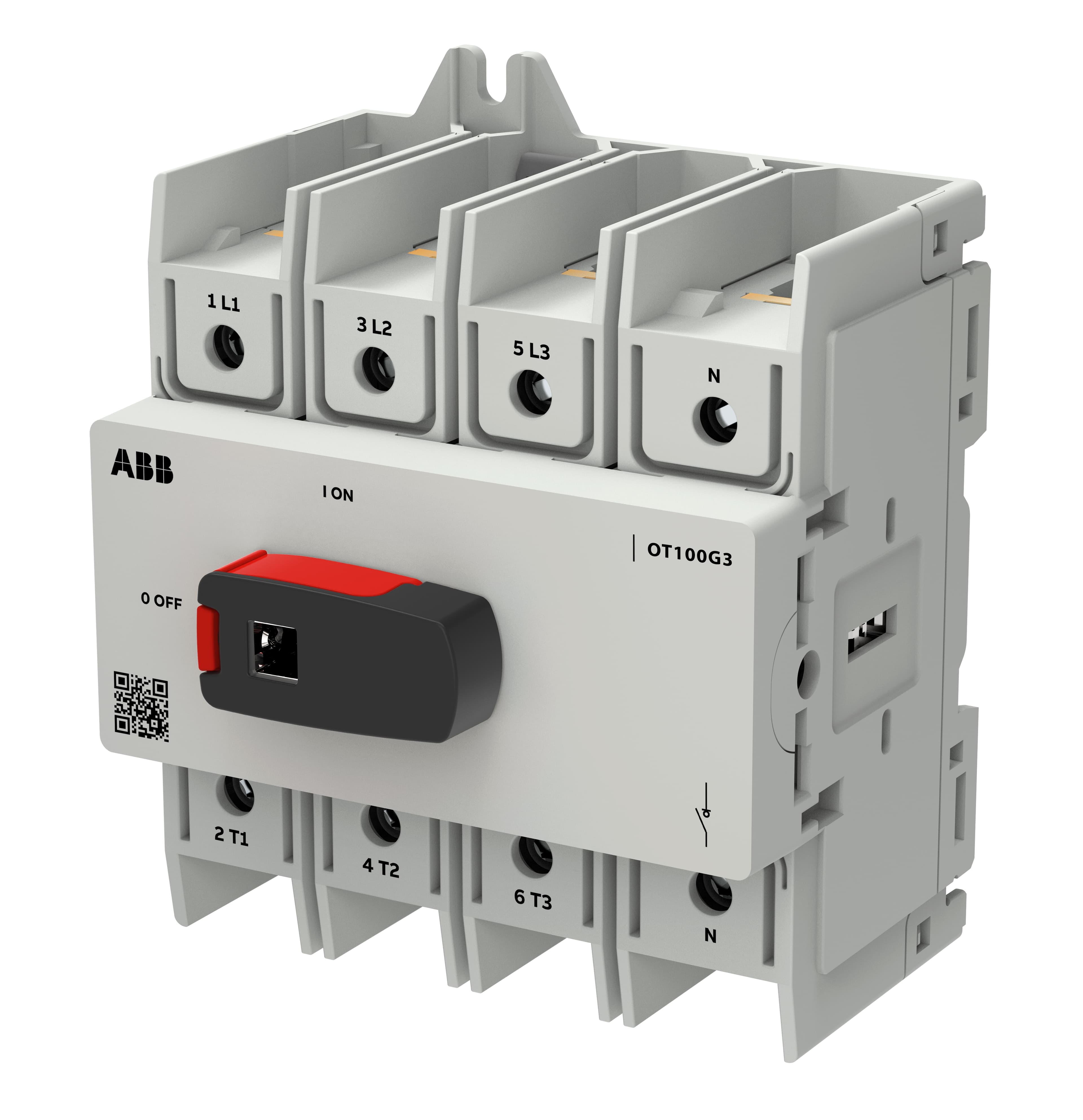

مفتاح فصل OT100G3-4BSN2، 100 أمبير، رباعي الأقطاب، تركيب على قاعدة/سكة DIN
المواصفات
| Extended Product Type | OT100G3-4BSN2 |
|---|---|
| Product ID | 1SCA162513R1001 |
| EAN | 6417019925462 |
| Catalog Description | OT100G3-4BSN2 SWITCH DISCONNECTOR |
| Long Description | OT Plus Switch disconnector series. 4-pole front operated base mounted DIN-rail mountable switch disconnector suitable for panels with 45mm DIN cut-out. The switch disconnector has inbuilt screw terminals and comes with direct-mounted knob handle that can be padlocked and shaft can be mounted for external operation. |
| Display Name | OT100G3-4BSN2 |
| Country of Origin | Finland |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Data Sheet, Technical Information | 9AKK108468A5537 |
| Instructions and Manuals | 1SCC301127M0201 |
| Product Net Width | 95.5 mm |
| Product Net Depth / Length | 74.6 mm |
| Product Net Height | 123 mm |
| Product Net Weight | 0.521 kg |
| Number of Poles | 4P |
| Standards | IEC60947-3 |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 1 s 2.5 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-1 800 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Mechanical Durability | Nr. Operations 100000 |
| Power Loss | at Rated Operating Conditions per Pole 3.7 W |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 2.5…4 mm² |
| Wire Stripping Length | Main Circuit 16-18 mm |
| Degree of Protection | Front IP20 |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Terminal Type | Screw Terminals |
| Maximum Operating Voltage UL/CSA | 600 V |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 5 Hp |
| Tightening Torque UL/CSA | UL 53 lbf·in |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| End Of Life Disassembling Instructions | 1SCC301146M0201 |
| Environmental Product Declaration - EPD | 1SCC301334D0201 |
| CCC Certificate | CCC OT30-160G3 |
| Declaration of Conformity - CE | 1SCC301328D2701 |
| DNV Certificate | 1SCC301347D0201 |
| UL Certificate | cULus certificate OT_OTC30-100G3 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 102 mm |
| Package Level 1 Depth / Length | 129 mm |
| Package Level 1 Height | 79 mm |
| Package Level 1 Gross Weight | 0.588 kg |
| Package Level 1 EAN | 6417019925462 |
| Package Level 2 Units | carton 10 piece |
| Package Level 2 Width | 526 mm |
| Package Level 2 Depth / Length | 280 mm |
| Package Level 2 Height | 93 mm |
| Package Level 2 Gross Weight | 5.88 kg |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| E-Number (Finland) | 3642573 |
| E-Number (Norway) | 4384736 |
| E-Number (Sweden) | 3172164 |
| Source URL | https://new.abb.com/products/1SCA162513R1001/ot100g3-4bsn2 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Switches > Switch Disconnectors |
| ABB Classification IDs | 9AAC910006, 9AAC100796, 9AAF623268 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | 100 A |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Environmental Information | 1SCC301334D0201 |
| Special Functions | No |
| Mechanical Drawings | OT30_160G3_4BSN2.stp |
| Conventional Thermal Current (I<sub>the</sub>) | 100 A |
| Color | Grey |
| Handle Color | Black |
| Handle Length | 37 mm |
| Handle Type | Knob |
| Mounting Type | Base/DIN mounting |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (I<sub>nc</sub>) | (125 A fuse, 415 V) 50 kA |
| Rated Operational Current AC-21A (I<sub>e</sub>) | (415 V) 100 A |
| Rated Operational Current AC-22A (I<sub>e</sub>) | (415 V) 100 A |
| Rated Operational Current AC-23A (I<sub>e</sub>) | (415 V) 100 A |
| Rated Operational Power AC-23A (P<sub>e</sub>) | (415 V) 55 kW |
| Rated Short-Circuit Making Capacity (I<sub>cm</sub>) | (690 V) 4.8 kA |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Ampere Rating | 100 A |
| Lock Type | Padlockable |
| Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Wire Size | 1x 12-2/0 AWG |
