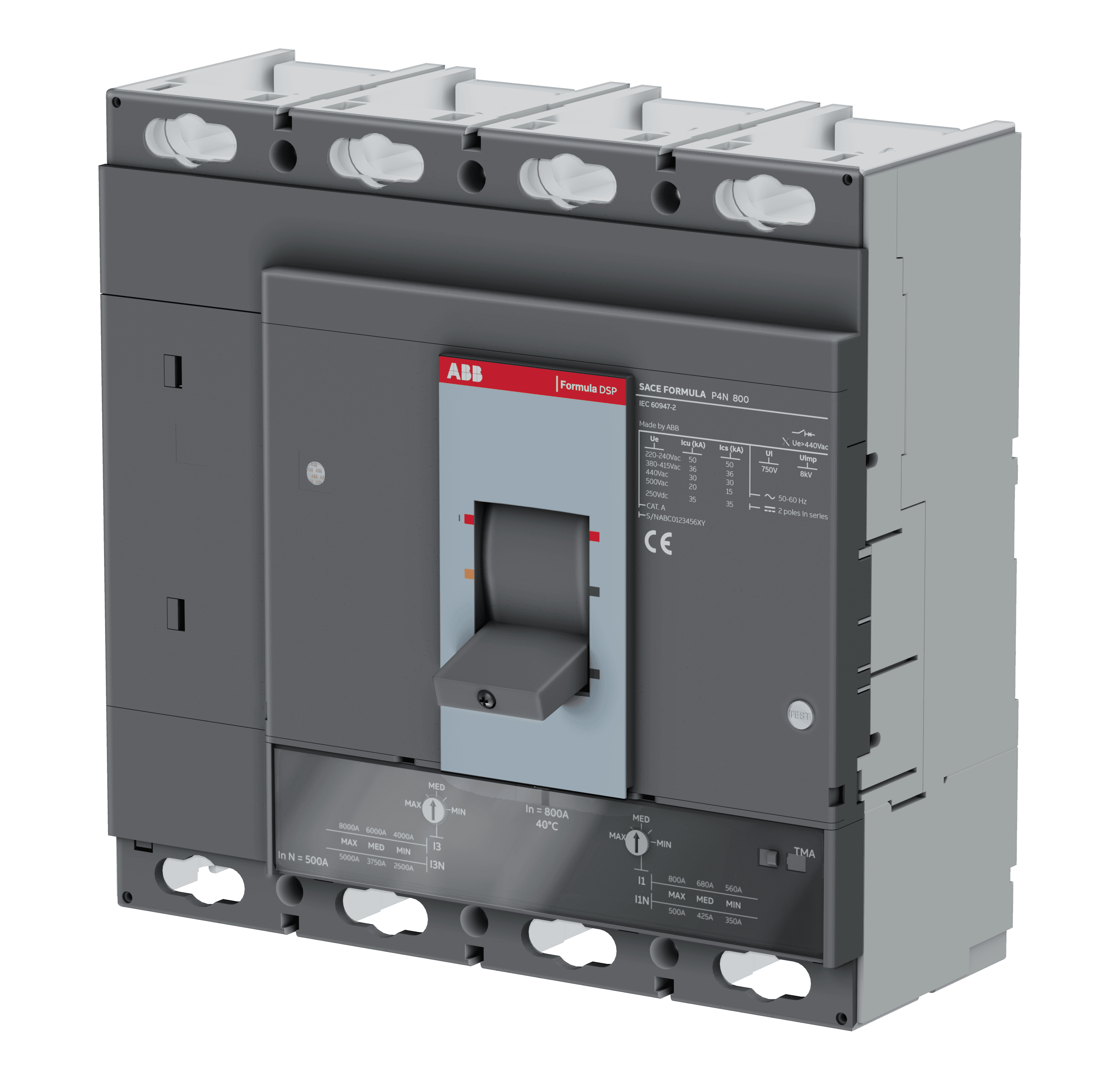

P4S 800 TMA 800-8000 4p F F InN=100%In
رقم القطعة: 1SDA116403R1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
قاطع MCCB Formula DSP P4S 800، 4 أقطاب، TMA، 800-8000A، نيوترال كامل
المواصفات
| Extended Product Type | P4S 800 TMA 800-8000 4p F F InN=100%In |
|---|---|
| Product ID | 1SDA116403R1 |
| EAN | 8056221085113 |
| Catalog Description | P4S 800 TMA 800-8000 4p F F InN=100%In |
| Long Description | C.BREAKER FORMULA DSP P4S 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMA R 800 I3=4000...8000 A FULLY RATED NEUTRAL |
| Display Name | P4S 800 TMA 800-8000 4p F F InN=100%In |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Data Sheet, Technical Information | 1SXF210036C2001 |
| Instructions and Manuals | 1SDH002127A1001 |
| Product Net Width | 280 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Height | 268 mm |
| Product Net Weight | 12 kg |
| Number of Poles | 4P |
| Standards | IEC |
| Rated Operational Voltage | 500 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | 750 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Mechanical Durability | 15000 cycle |
| Power Loss | 54.20 W |
| Product Name | Moulded Case Circuit Breaker |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221085113 |
| Source URL | https://new.abb.com/products/1SDA116403R1/p4s-800-tma-800-8000-4p-f-f-inn-100in |
| ABB Taxonomy Path | Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Formula DSP |
| ABB Classification IDs | 9AAC910006, 9AAF617160, 9AAF617164 |
| Suitable For | P4 |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | (240 V AC) 80 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>) | (240 V AC) 80 kA |
| Rated Instantaneous Short-Circuit Current Setting (I<sub>i</sub>) | 4000…8000 A |
| Setting Range | 560…800 A |
| Environmental Information | 9AKK108467A6707 |
| Product Main Type | SACE FORMULA DSP |
| Rated Voltage (U<sub>r</sub>) | 500 V AC |
| Rated Current (I<sub>n</sub>) | 800 A |
| Product Type | Automatic Circuit Breaker |
| Current Type | AC/DC |
| Version | F |
| Rated Uninterrupted Current (I<sub>u</sub>) | 800 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | S |
| Sub-type | P4 |
| Terminal Connection Type | Front |
| Circuit Breaker Type to be Associated | Power Distribution |
