AUXGB-11
رقم القطعة: 1SCA162594R1001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

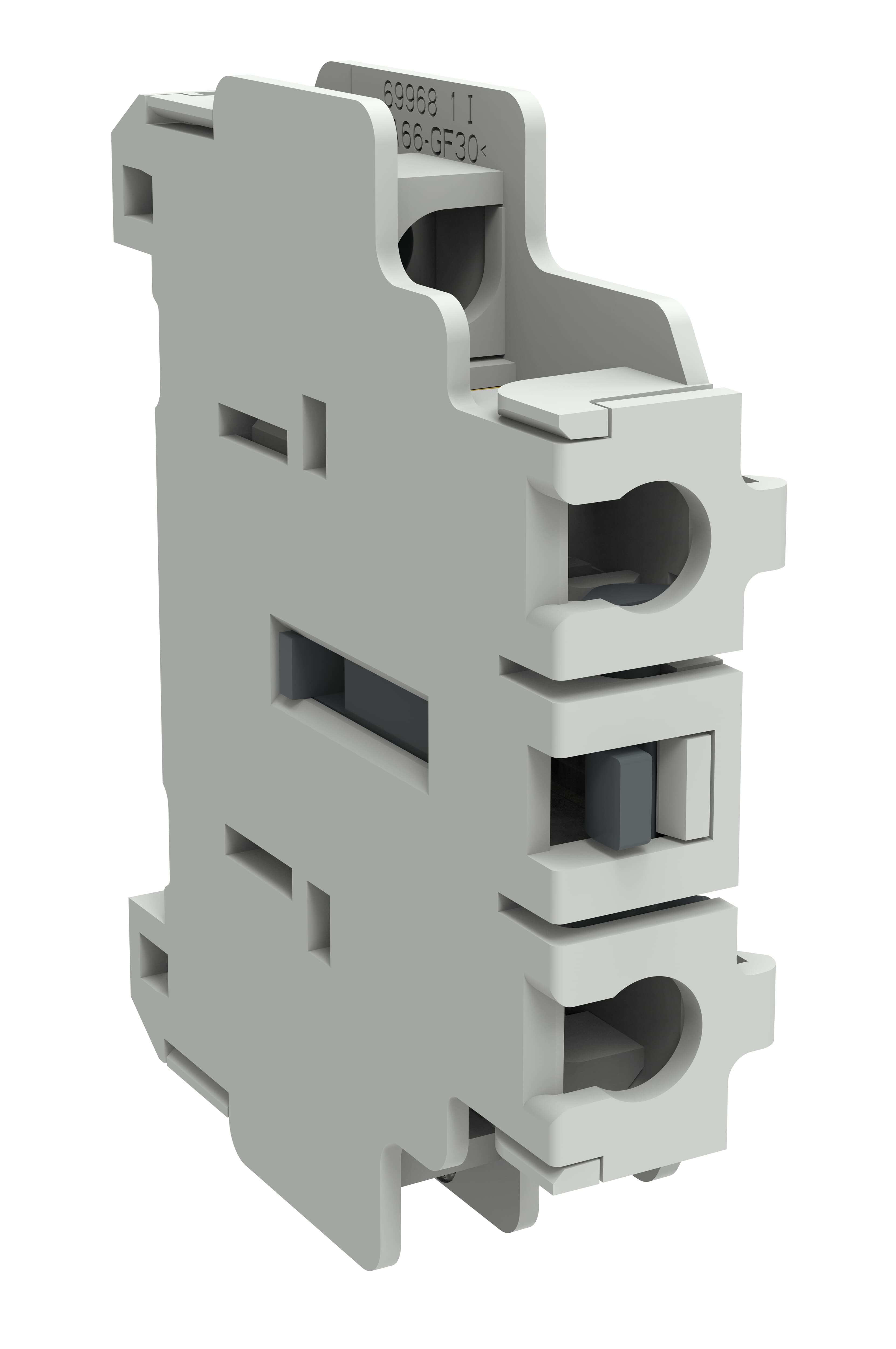

كونتاكت مساعد AUXGB-11، نقطة NO واحدة وNC واحدة، لسلسلة OT Plus
المواصفات
| Extended Product Type | AUXGB-11 |
|---|---|
| Product ID | 1SCA162594R1001 |
| EAN | 6417019926209 |
| Catalog Description | AUXGB-11 AUXILIARY CONTACT |
| Long Description | OT Plus Switch disconnector series. Auxiliary contact block for Base mounted OT16…160G_series. 1NO and 1NC contact. Snap-on mounting on both sides of the switch. The 1NO has early break function. |
| Display Name | AUXGB-11 |
| Country of Origin | Bulgaria |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Data Sheet, Technical Information | 9AKK108468A5537 |
| Instructions and Manuals | 1SCC390188M0201 |
| Product Net Width | 16.0 mm |
| Product Net Depth / Length | 47.6 mm |
| Product Net Height | 62.0 mm |
| Product Net Weight | 0.027 kg |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-1 690 V |
| Power Loss | at Rated Operating Conditions per Pole 0.9 W |
| Wire Stripping Length | Main Circuit 8-10 mm |
| Degree of Protection | Front IP20 |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Terminal Type | Screw Terminals |
| Tightening Torque UL/CSA | UL 7 lbf·in |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Declaration of Conformity - CE | 1SCC390103D2701 |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 165 mm |
| Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 16 mm |
| Package Level 1 Gross Weight | 0.032 kg |
| Package Level 1 EAN | 6417019926209 |
| Object Classification Code | Q |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.1 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Finland) | 3660441 |
| E-Number (Norway) | 4384790 |
| E-Number (Sweden) | 3172190 |
| Source URL | https://new.abb.com/products/1SCA162594R1001/auxgb-11 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Switches > Switch Disconnectors |
| ABB Classification IDs | 9AAC910006, 9AAC100796, 9AAC213176 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | 16 A |
| ETIM 10 | EC000041 - Auxiliary contact block |
| Mechanical Drawings | AUXGB_11.stp |
| Conventional Thermal Current (I<sub>the</sub>) | 16 A |
| Mounting Type | Base/DIN mounting |
| Cable Cross-Section | Cu 0.75…2.5 mm² |
| Wire Size | 18-14 AWG |
