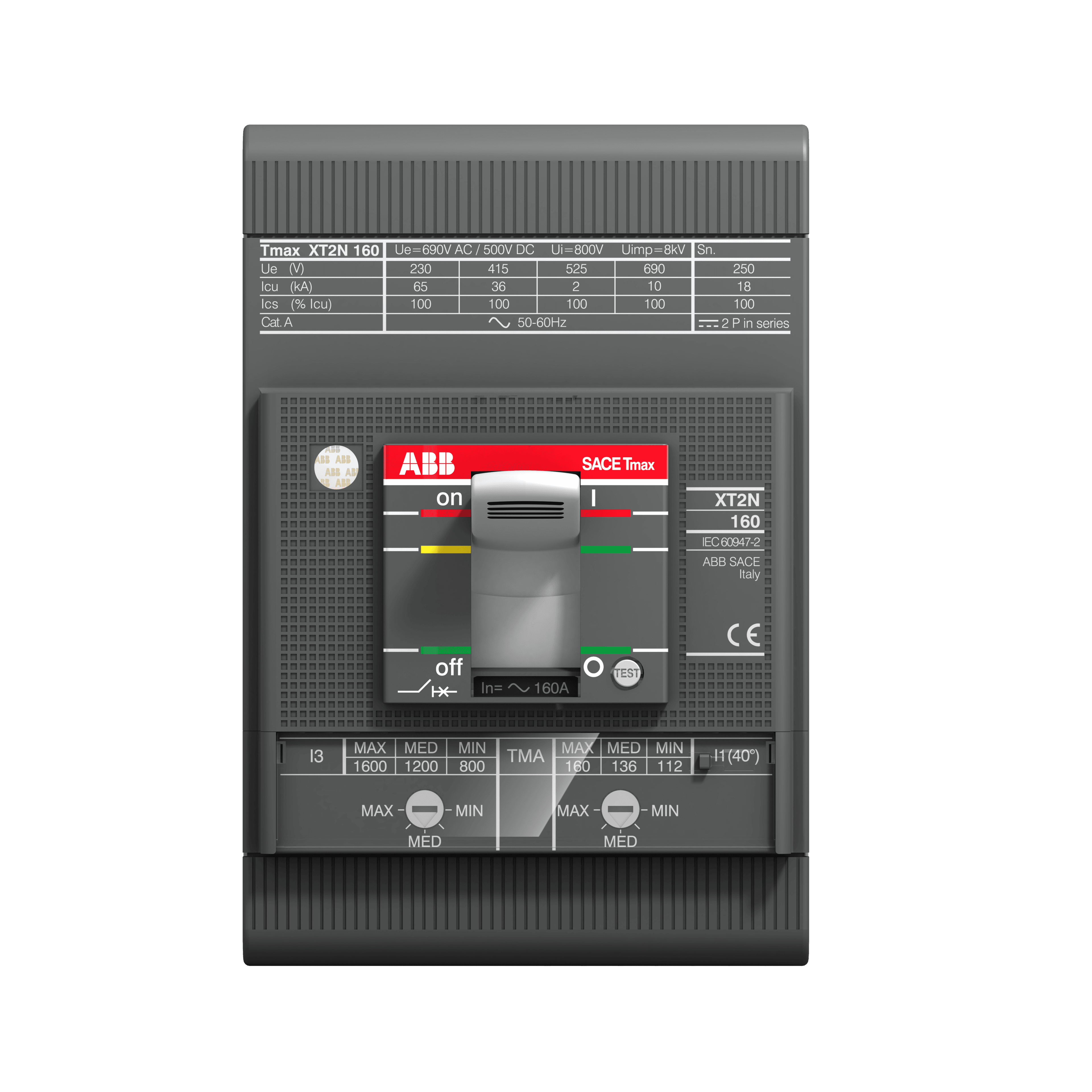

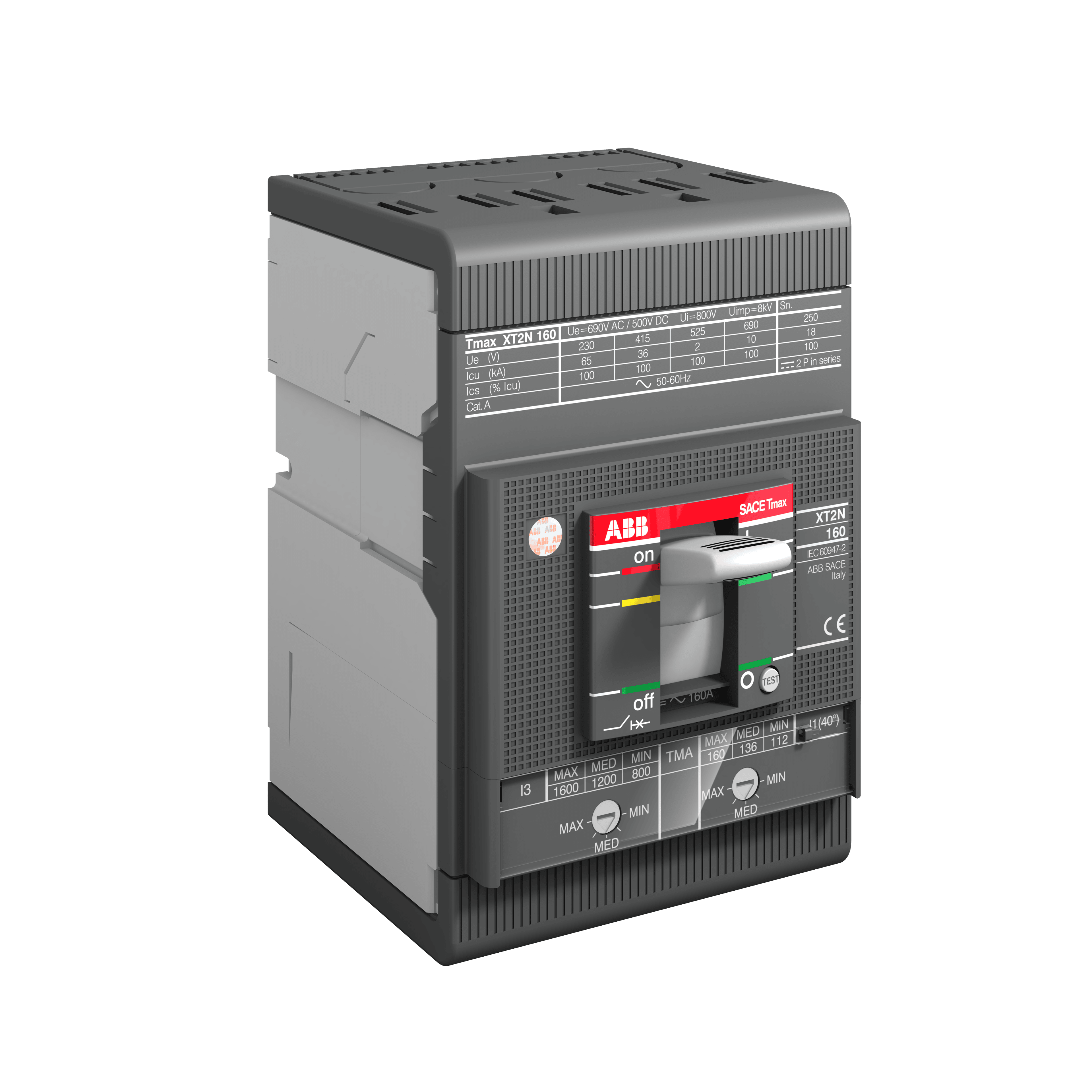

XT2S 160 MF 2 Im=28 3p F F

ABB

XT2S 160 MF 2 Im=28 3p F F

رقم القطعة: 1SDA067761R1

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

قاطع MCCB من نوع XT2S، إطار 160 أمبير، تيار مقنن 2 أمبير، فصل مغناطيسي MF، ثلاثي الأقطاب، ثابت، أطراف أمامية

المواصفات

Extended Product TypeXT2S 160 MF 2 Im=28 3p F F
Product ID1SDA067761R1
EAN8015644016579
Catalog DescriptionXT2S 160 MF 2 Im=28 3p F F
Long DescriptionC.BREAKER TMAX XT2S 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MF Iu 2 A I3=28 A
Display NameXT2S 160 MF 2 Im=28 3p F F
Country of OriginIndia
Made To OrderNo
Warranty ReturnProduct under warranty must be returned
Product Sales StatusActive
Quote OnlyNo
Stocked At WarehousesAETAD009EXPU
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Data Sheet, Technical Information1SDC210100D0206
Instructions and Manuals1SDH000721R0001
CAD Dimensional Drawing1SDH002230A1001
Product Net Width90 mm
Product Net Depth / Length82.5 mm
Product Net Height130 mm
Product Net Weight1.1 kg
Number of Poles3P
StandardsIEC60947-2
Rated Operational Voltage690 V AC
Rated Frequency (f)50 / 60 Hz
Rated Insulation Voltage (U<sub>i</sub>)1000 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)8 kV
Electrical Durability120 cycles per hour
Mechanical Durability240 cycles per hour
Power Lossat Rated Operating Conditions per Pole 2.38 W
Connecting Capacity Main CircuitBusbar 32.5..100 mm²
Recommended Screw DriverMain Circuit M6
Tightening Torque6 N·m
Terminal TypeBolt
Product NameMoulded Case Circuit Breaker
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2348
Environmental Product Declaration - EPD9AKK108469A1856
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 55.70 %
Declaration of Conformity - CE9AKK106713A5901
UL CertificateNo certification needed
Package Level 1 Unitsbox 1 piece
Package Level 1 Width131 mm
Package Level 1 Depth / Length147 mm
Package Level 1 Height212 mm
Package Level 1 Gross Weight1.2 kg
Package Level 1 EAN8015644016579
Object Classification CodeQ
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
eClassV11.1 : 27370409
UNSPSC39120000
E-Number (Norway)4379372
Source URLhttps://new.abb.com/products/1SDA067761R1/xt2s-160-mf-2-im-28-3p-f-f
ABB Taxonomy PathLow Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT
ABB Classification IDs9AAC910006, 9AAC167301, 9AAC167318
SCIPc97eec5a-6330-492f-890d-c88c3cfe08ac Italy
Simplified SCIP1e49da01-f3c5-4983-aa15-9aa794c837d5 Belgium
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Lead Time0 day
Country of Origin (CountryOfOrigin_PUINABB015)India
Made To Order (MadeToOrder_PUINABB015)No
Warranty Return (NoWarrantyReturn_PUINABB015)Product under warranty must be returned
Product Sales Status (ProductSalesStatus_PUINABB015)Active
Quote Only (QuoteOnly_PUINABB015)No
Stocked At Warehouses (StockedAtWarehouses_PUINABB015)INABB015EXPU
LR Certificate1SDL000163R0100
GL Certificate1SDL000163R0093
Country of Origin (CountryOfOrigin_PUBRABB008)India
Lead Time (LeadTime_PUBRABB008)0 day
Made To Order (MadeToOrder_PUBRABB008)No
Warranty Return (NoWarrantyReturn_PUBRABB008)Product under warranty must be returned
Product Sales Status (ProductSalesStatus_PUBRABB008)Active
Quote Only (QuoteOnly_PUBRABB008)No
Stocked At Warehouses (StockedAtWarehouses_PUBRABB008)BRABB008EXPU
Country of Origin (CountryOfOrigin_PUCHSEC006)India
Lead Time (LeadTime_PUCHSEC006)0 day
Made To Order (MadeToOrder_PUCHSEC006)No
Warranty Return (NoWarrantyReturn_PUCHSEC006)Product under warranty must be returned
Product Sales Status (ProductSalesStatus_PUCHSEC006)Active
Quote Only (QuoteOnly_PUCHSEC006)No
Stocked At Warehouses (StockedAtWarehouses_PUCHSEC006)CHSEC006EXPU
Dimension Diagram1SDH000721R0100
Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>)(220 V AC) 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>)(220 V AC) 85 kA
Rated Instantaneous Short-Circuit Current Setting (I<sub>i</sub>)28 A
Country of Origin (CountryOfOrigin_PUINABB003)India
Made To Order (MadeToOrder_PUINABB003)No
Product Sales Status (ProductSalesStatus_PUINABB003)Active
Quote Only (QuoteOnly_PUINABB003)No
Stocked At Warehouses (StockedAtWarehouses_PUINABB003)INABB003EXPU
Warranty Return (NoWarrantyReturn_PUINABB003)Product under warranty must be returned
ATEX CertificateNo certification needed
Environmental Information9AKK108467A6707
Product Main TypeSACE Tmax XT
Mechanical Drawings1SDH000721R0100
Rated Voltage (U<sub>r</sub>)690 V
Rated Current (I<sub>n</sub>)2 A
VDE CertificateNo certification needed
Order Multiple1 piece
Product TypeAutomatic Circuit Breaker
Extended Product LifetimeProduct Modularity
Wiring Diagram1SDM000068R0001
Order Code US and CanadaXT2SE3002IFF000XXX
Current TypeAC/DC
VersionF
Rated Uninterrupted Current (I<sub>u</sub>)160 A
ReleaseMF
Release TypeM
Short-Circuit Performance LevelS
Sub-typeXT2
Terminal Connection TypeFront
Opening TimeCB with SOR 30 ms
Circuit Breaker Type to be AssociatedMotor Protection
