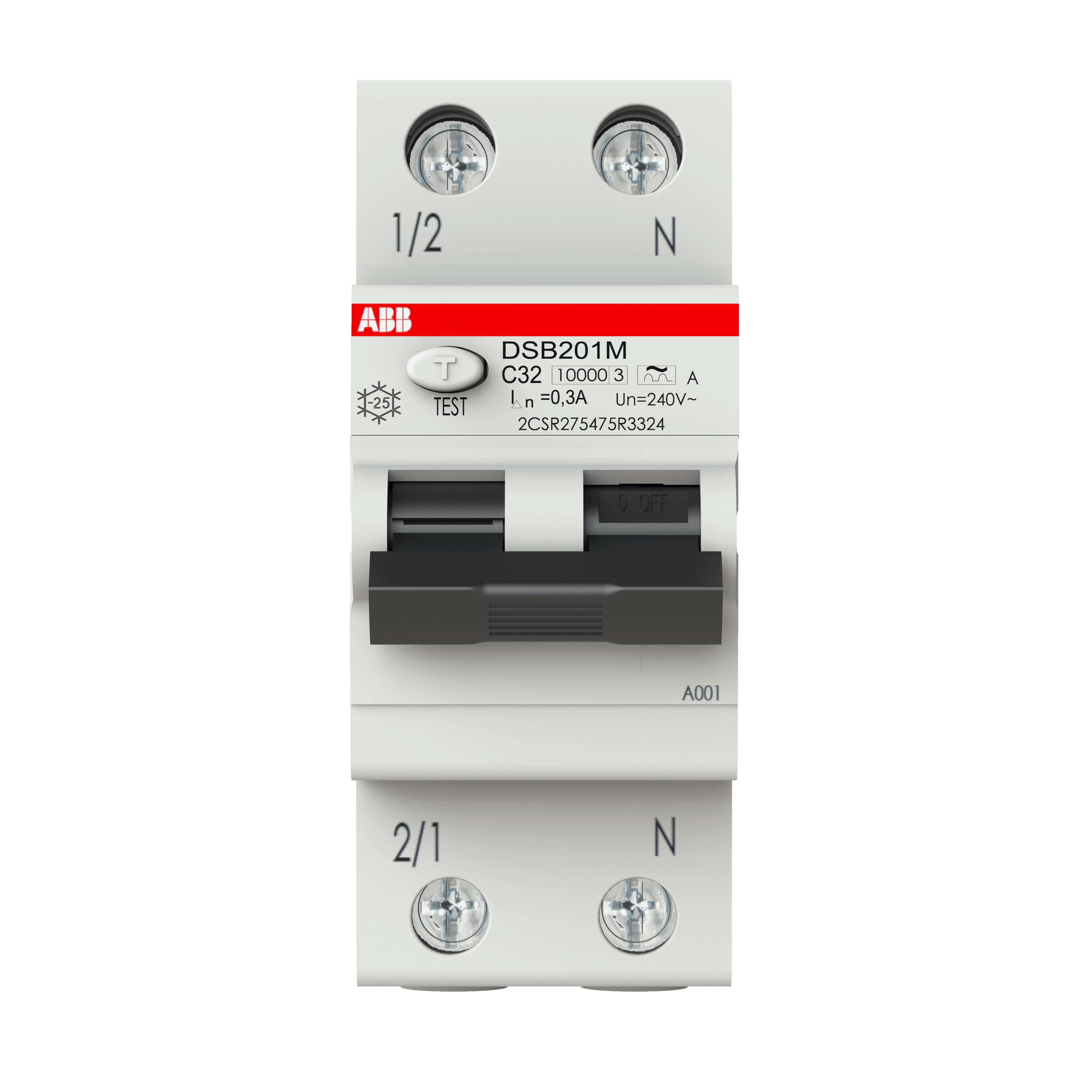

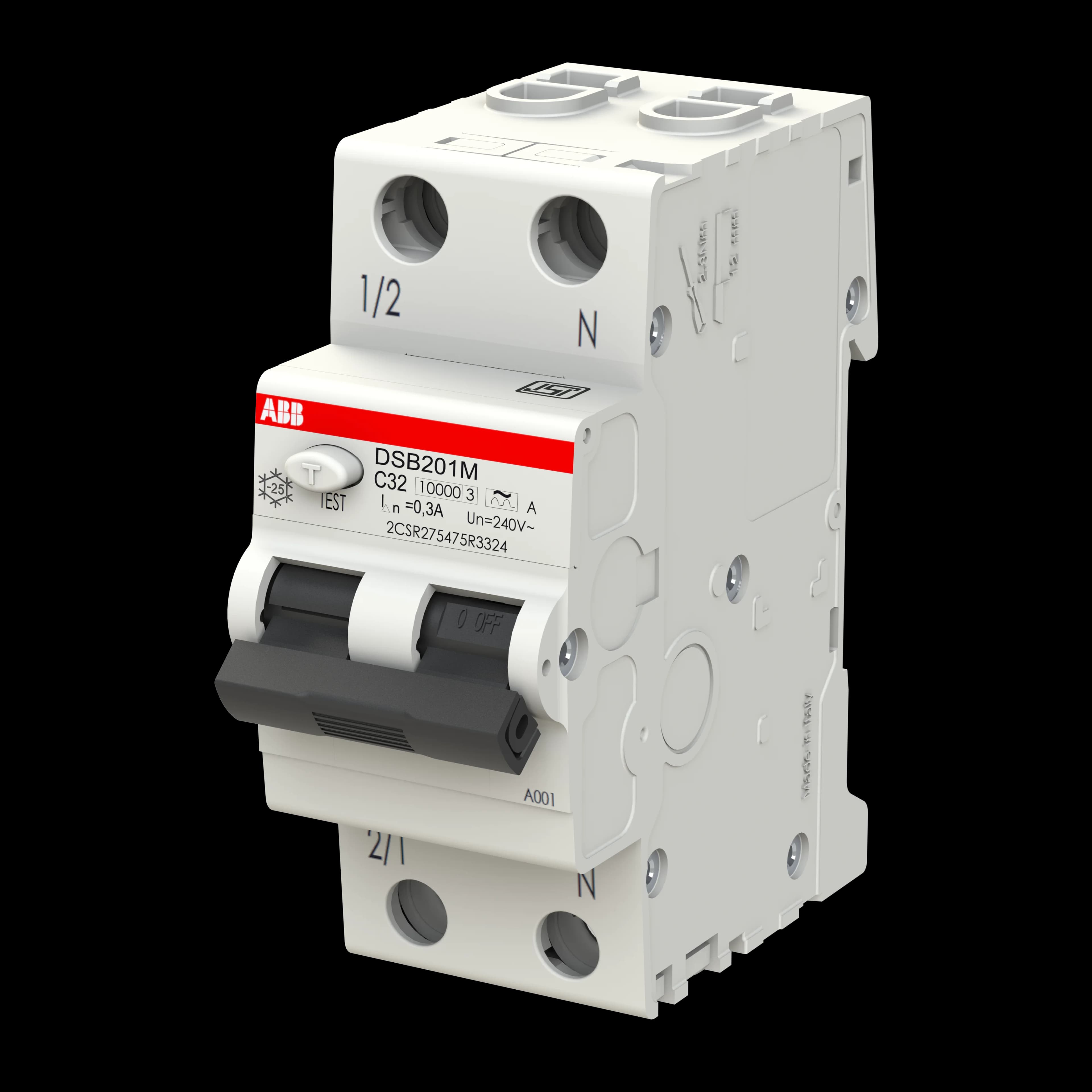

DSB201 M A-C32/0.3
رقم القطعة: 2CSR275475R3324
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
قاطع دائرة مصغر بحماية التيار المتبقي DSB201 M A-C32/0.3، أحادي القطب
المواصفات
| Extended Product Type | DSB201 M A-C32/0.3 |
|---|---|
| Product ID | 2CSR275475R3324 |
| EAN | 8012542074229 |
| Catalog Description | Residual Current Circuit Breaker with Overcurrent Protection DSB201 M - 1P+N - 300 mA - 32 A - C - Type A |
| Long Description | DSB201 M A-C32/0.3 - Residual Current Circuit Breaker with Overcurrent Protection |
| Display Name | DSB201 M A-C32/0.3 |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Instructions and Manuals | 9AKK107492A6006 |
| Product Net Width | 35 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Height | 85 mm |
| Product Net Weight | 200 g |
| Number of Poles | 1P+N |
| Standards | IS 12640-2 |
| Rated Operational Voltage | 240 V |
| Rated Frequency (f) | 50 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | 500 V AC |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Wire Stripping Length | 12 mm |
| Degree of Protection | Housing IP40 |
| Tightening Torque | 2.8 N·m |
| Ambient Air Temperature | -25…+55 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Pollution Degree | 2 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 9 | EC000905 - Earth leakage circuit breaker |
| Source URL | https://new.abb.com/products/2CSR275475R3324/dsb201-m-a-c32-0-3 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Modular DIN Rail Products > Residual Current Devices RCDs > Residual Current Circuit Breakers with Overcurrent Protection RCBO |
| ABB Classification IDs | 9AAC910006, 9AAC100504, 9AAC554442 |
| SCIP | ab4d1a21-e7ee-4d02-8e94-35961d2e81d3 Italy |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz |
| ETIM 10 | EC000905 - Earth leakage circuit breaker |
| Mounting Position | Any |
| Contact Position Indication | Red ON / Green OFF |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | 7.5 kA |
| Number of Protected Poles | 1 |
| Rated Current (I<sub>n</sub>) | 32 A |
| Mounting Type | DIN-Rail |
| Connecting Capacity | 25/25 mm² |
| Accessory Type | ALL |
| Accessories Available | Yes |
| Number of Modules | 2 |
| Built-In Depth (<em>t<sub>2</sub></em>) | 69 mm |
| Overvoltage Category | III |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Operational Voltage | 110 V |
| Type of Residual Current | Type A |
| Dielectric Test Voltage | 2 kV |
| Rated Residual Current | 300 mA |
| Input Voltage Type | AC |
| Number of Batteries | 0 |
| Rated Short-Circuit Capacity | 10 kA |
| Energy Limiting Class | 3 |
| Tripping Characteristic | C |
| Number of Modular Spacings per DIN Rail | 2 |
| Operating Characteristic | Instantaneous |
| Housing Type | Insulation group I - II, RAL 7035 |
