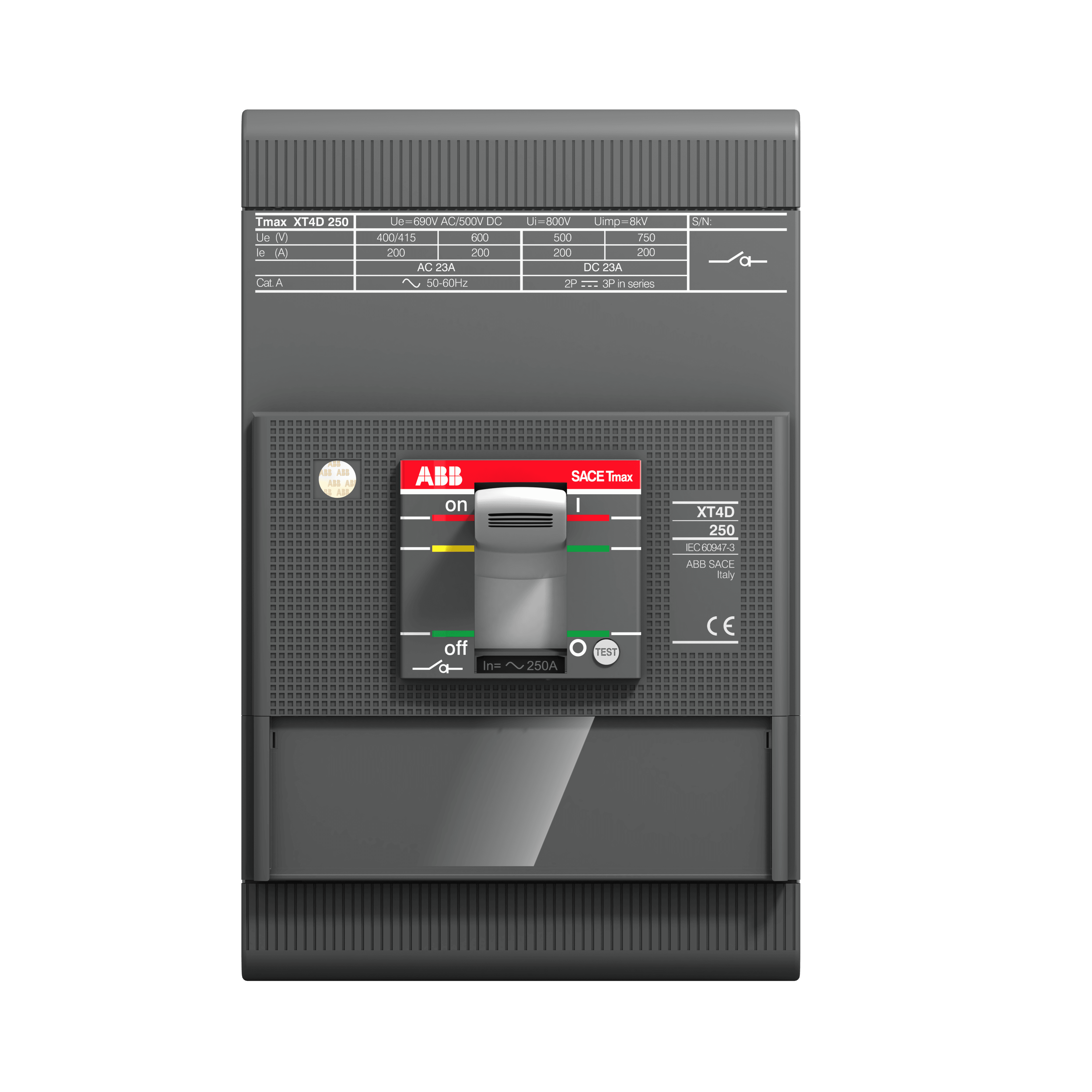

XT4D 250 3p F F
رقم القطعة: 1SDA068212R1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

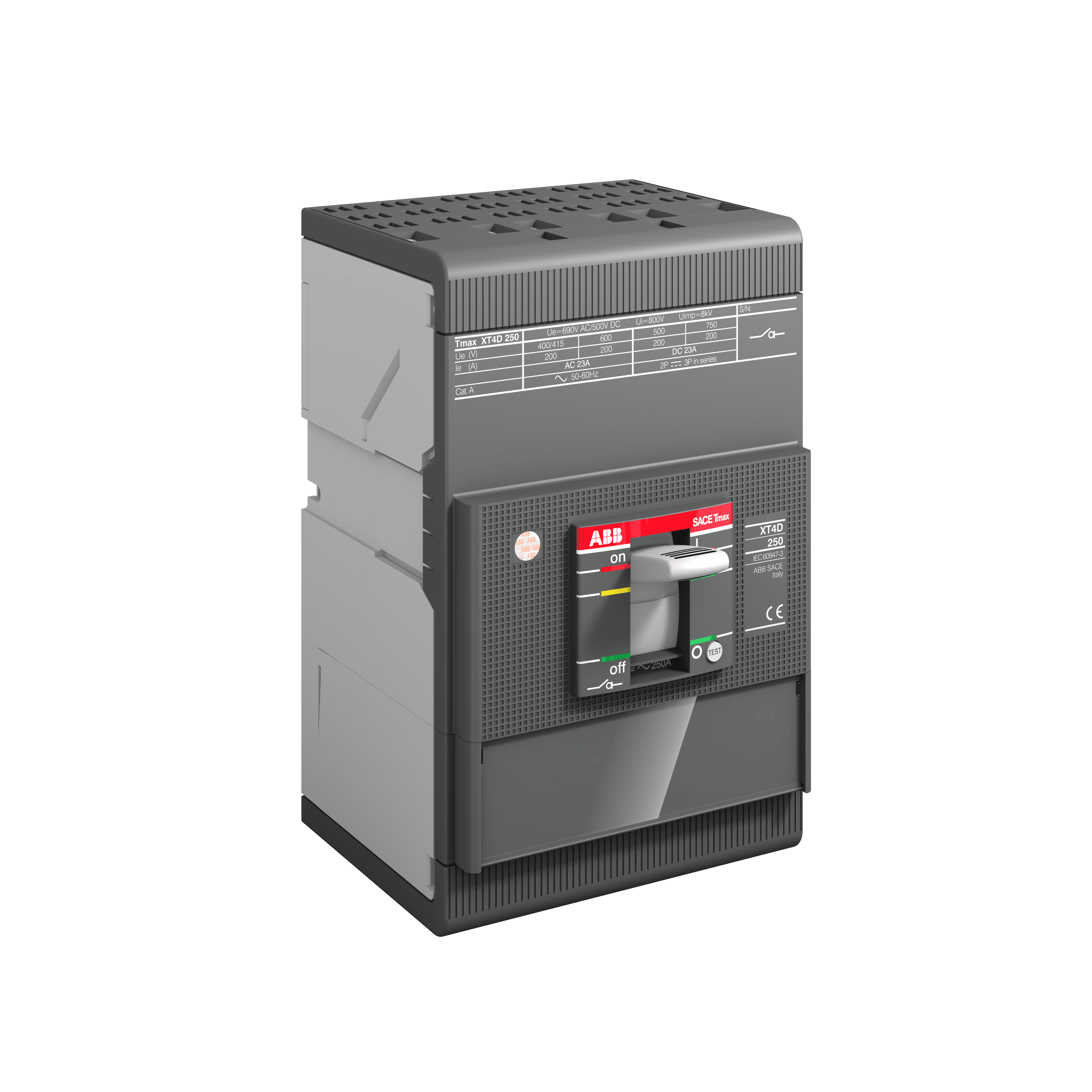

مفتاح فصل وعزل Tmax XT4D، 250 أمبير، ثلاثي الأقطاب، ثابت، أطراف أمامية
المواصفات
| Extended Product Type | XT4D 250 3p F F |
|---|---|
| Product ID | 1SDA068212R1 |
| EAN | 8015644021085 |
| Catalog Description | XT4D 250 3p F F |
| Long Description | SWITCH-DISCONNECTOR TMAX XT4D 250 FIXED THREE-POLE WITH FRONT TERMINALS |
| Display Name | XT4D 250 3p F F |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Instructions and Manuals | 1SDH000722R0001 |
| CAD Dimensional Drawing | 1SDH002230A1003 |
| Product Net Width | 105 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Height | 160 mm |
| Product Net Weight | 2.086 kg |
| Number of Poles | 3P |
| Standards | IEC60947-2 |
| Rated Operational Voltage | 690 V |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 1 s 3.6 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | 800 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Electrical Durability | 120 cycles per hour |
| Mechanical Durability | 240 cycles per hour |
| Power Loss | 49.2 W |
| Product Name | Moulded Case Circuit Breaker |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2351 |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 171 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Gross Weight | 2.196 kg |
| Package Level 1 EAN | 8015644021085 |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| UNSPSC | 39120000 |
| E-Number (Norway) | 4380070 |
| Source URL | https://new.abb.com/products/1SDA068212R1/xt4d-250-3p-f-f |
| ABB Taxonomy Path | Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT |
| ABB Classification IDs | 9AAC910006, 9AAC167301, 9AAC167320 |
| SCIP | 82d33cb7-d72e-4e65-b679-3e01b9b5f533 Italy |
| Simplified SCIP | 0921a9d5-812e-4c89-821f-e48847c0d093 Belgium |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Environmental Information | 9AKK108467A6707 |
| Product Main Type | SACE Tmax XT |
| Mechanical Drawings | 1SDH000722R0100 |
| Rated Voltage (U<sub>r</sub>) | 690 V |
| Rated Current (I<sub>n</sub>) | 250 A |
| Order Multiple | 1 piece |
| Product Type | Switch Disconnector |
| Extended Product Lifetime | Product Modularity |
| Wiring Diagram | 1SDM000068R0001 |
| Order Code US and Canada | XT4DE3250DFF000XXX |
| Current Type | AC/DC |
| Version | F |
| Rated Uninterrupted Current (I<sub>u</sub>) | 250 A |
| Short-Circuit Performance Level | D |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Opening Time | CB with SOR 30 ms |
