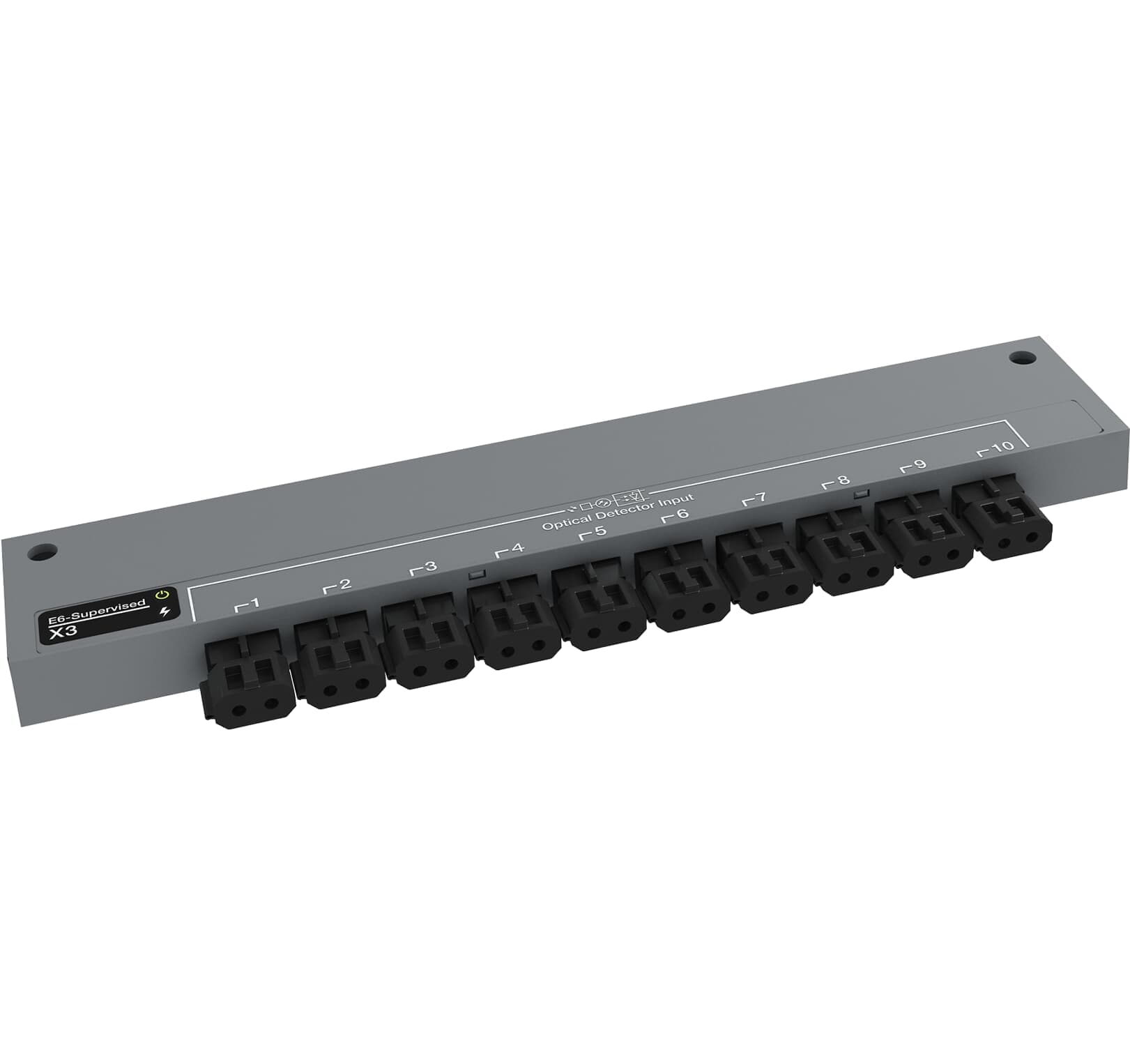

TVOC-2-E6-S
رقم القطعة: 1SFA664002R6001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
وحدة توسعة TVOC-2-E6-S، عدد 10 مداخل ضوئية مراقبة
المواصفات
| Extended Product Type | TVOC-2-E6-S |
|---|---|
| Product ID | 1SFA664002R6001 |
| EAN | 7320500558409 |
| Catalog Description | TVOC-2-E6-S Extension |
| Long Description | The extension module TVOC-2-E6-S can be assembled on the TVOC-2 main unit increase the number of detector inputs. The detectors of E6-S are supervised. There are 10 detector inputs per extension module E6-S and up to 2 extension modules can be added to the main unit, creating 30 detector inputs in total, whereof 20 can be supervised. |
| Display Name | TVOC-2-E6-S |
| Country of Origin | Sweden |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Data Sheet, Technical Information | 1SFC170001C0201 |
| Instructions and Manuals | 1SFC170011M0201 |
| Product Net Width | 230 mm |
| Product Net Depth / Length | 25 mm |
| Product Net Height | 50 mm |
| Product Net Weight | 0.14 kg |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Power Loss | 0.150 W |
| Product Name | Extension |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2AGS2022-006202 |
| RoHS Declaration | 2AGS2022-006277-RoHS |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT001035D0902a |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Environmental Product Declaration - EPD | No certification needed |
| Declaration of Conformity - CE | 2CMT005420 |
| DNV Certificate | DNV_E-12926 |
| UL Certificate | UL_20110511-E155370 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Depth / Length | 275 mm |
| Package Level 1 Height | 55 mm |
| Package Level 1 Gross Weight | 0.226 kg |
| Package Level 1 EAN | 7320500558409 |
| Object Classification Code | B |
| ETIM 9 | EC002024 - Accessories/spare parts for command devices |
| eClass | V11.0 : 27142214 |
| UNSPSC | 39122331 |
| E-Number (Norway) | 4116458 |
| Source URL | https://new.abb.com/products/1SFA664002R6001/tvoc-2-e6-s |
| ABB Taxonomy Path | Low Voltage Products and Systems > Circuit Breakers > External Digital Unit > Arc Guard System |
| ABB Classification IDs | 9AAC910006, 9AAC720001, 9AAF622615, 9AAF400065, 9AAC100095, 9AAF622810, 9AAF603036, 9AAF626992 |
| Suitable For | TVOC-2 |
| Suitable for Product Class | Arc Monitor |
| ETIM 10 | EC002024 - Accessories/spare parts for command devices |
| Lead Time | 0 day |
| Country of Origin (CountryOfOrigin_PUBRABB008) | Sweden |
| Lead Time (LeadTime_PUBRABB008) | 0 day |
| Made To Order (MadeToOrder_PUBRABB008) | No |
| Warranty Return (NoWarrantyReturn_PUBRABB008) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUBRABB008) | Active |
| Quote Only (QuoteOnly_PUBRABB008) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUBRABB008) | BRABB008EXPU |
| Country of Origin (CountryOfOrigin_PUCHSEC006) | Sweden |
| Lead Time (LeadTime_PUCHSEC006) | 0 day |
| Made To Order (MadeToOrder_PUCHSEC006) | No |
| Warranty Return (NoWarrantyReturn_PUCHSEC006) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUCHSEC006) | Active |
| Quote Only (QuoteOnly_PUCHSEC006) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUCHSEC006) | CHSEC006EXPU |
| Instructions and Manuals (Part 2) | 1SFC170011M0201 |
| Environmental Information | 1SFC170003D0201 |
| Product Main Type | TVOC-2 |
| Lead Time (LeadTime_PUCZABB004) | 63 day |
| Warranty Return (NoWarrantyReturn_PUCZABB004) | Product under warranty must be returned |
| Stocked At Warehouses (StockedAtWarehouses_PUCZABB004) | CZABB004EXPU |
| Country of Origin (CountryOfOrigin_PUCZABB004) | Sweden |
| Made To Order (MadeToOrder_PUCZABB004) | No |
| Product Sales Status (ProductSalesStatus_PUCZABB004) | Active |
| Quote Only (QuoteOnly_PUCZABB004) | No |
| CSA Certificate | UL_20110511-E155370 |
| Mounting Type | Mounted on main unit |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Additional Information | ARC MONITOR TVOC-2 EXTENSION SUPERVISED |
| cULus Certificate | UL_20110511-E155370 |
