XT4S 250 MA 200 Im=1000...2000 3p F F
رقم القطعة: 1SDA068440R1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

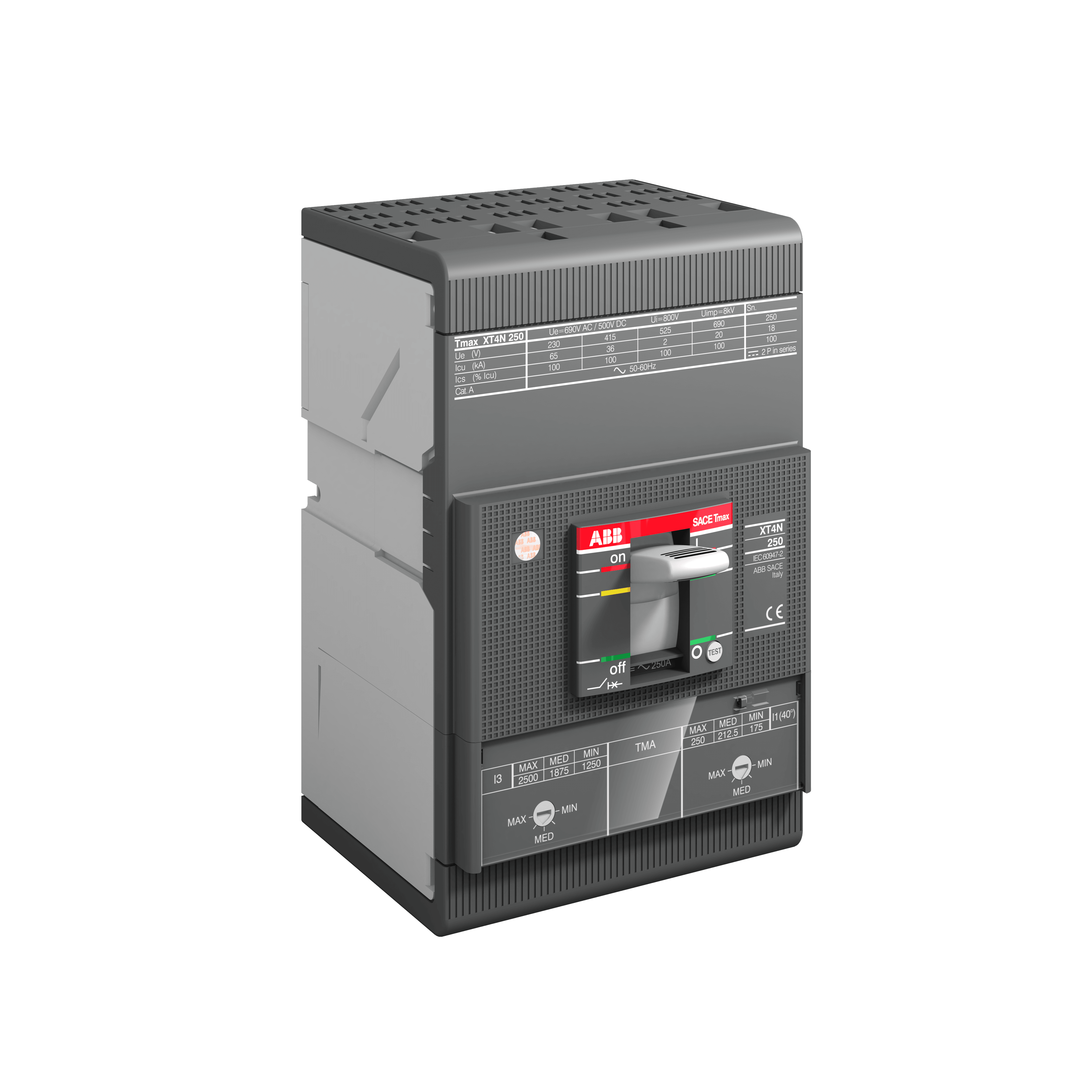

قاطع MCCB من نوع XT4S، إطار 250 أمبير، تيار 200 أمبير، فصل مغناطيسي MA قابل للضبط 1000-2000 أمبير، ثلاثي الأقطاب، ثابت، أطراف أمامية
المواصفات
| Extended Product Type | XT4S 250 MA 200 Im=1000...2000 3p F F |
|---|---|
| Product ID | 1SDA068440R1 |
| EAN | 8015644023461 |
| Catalog Description | XT4S 250 MA 200 Im=1000...2000 3p F F |
| Long Description | C.BREAKER TMAX XT4S 250 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 200 A I3=1000...2000 A |
| Display Name | XT4S 250 MA 200 Im=1000...2000 3p F F |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Instructions and Manuals | 1SDH000722R0001 |
| CAD Dimensional Drawing | 1SDH002230A1003 |
| Product Net Width | 105 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Height | 160 mm |
| Product Net Weight | 2.5 kg |
| Number of Poles | 3P |
| Standards | IEC60947-2 |
| Rated Operational Voltage | 690 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Electrical Durability | 120 cycles per hour |
| Mechanical Durability | 240 cycles per hour |
| Power Loss | at Rated Operating Conditions per Pole 11.88 W |
| Connecting Capacity Main Circuit | Busbar 85..200 mm² |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | 8 N·m |
| Terminal Type | Bolt |
| Product Name | Moulded Case Circuit Breaker |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2351 |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| UL Certificate | No certification needed |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Depth / Length | 168 mm |
| Package Level 1 Height | 210 mm |
| Package Level 1 Gross Weight | 2.5 kg |
| Package Level 1 EAN | 8015644023461 |
| Object Classification Code | Q |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| eClass | V11.1 : 27370409 |
| UNSPSC | 39120000 |
| E-Number (Norway) | 4379928 |
| Source URL | https://new.abb.com/products/1SDA068440R1/xt4s-250-ma-200-im-1000-2000-3p-f-f |
| ABB Taxonomy Path | Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT |
| ABB Classification IDs | 9AAC910006, 9AAC167301, 9AAC167320 |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| LR Certificate | 1SDL000163R0100 |
| GL Certificate | 1SDL000163R0095 |
| Dimension Diagram | 1SDH000722R0100 |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | (220 V AC) 85 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>) | (220 V AC) 85 kA |
| Rated Instantaneous Short-Circuit Current Setting (I<sub>i</sub>) | 1000…2000 A |
| ATEX Certificate | No certification needed |
| Environmental Information | 9AKK108467A6707 |
| Product Main Type | SACE Tmax XT |
| Mechanical Drawings | 1SDH000722R0100 |
| Rated Voltage (U<sub>r</sub>) | 690 V |
| Rated Current (I<sub>n</sub>) | 200 A |
| VDE Certificate | No certification needed |
| Order Multiple | 1 piece |
| Product Type | Automatic Circuit Breaker |
| Extended Product Lifetime | Product Modularity |
| Wiring Diagram | 1SDM000068R0001 |
| Order Code US and Canada | XT4SE3200MFF000XXX |
| Current Type | AC/DC |
| Version | F |
| Rated Uninterrupted Current (I<sub>u</sub>) | 250 A |
| Release | MA |
| Release Type | M |
| Short-Circuit Performance Level | S |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Opening Time | CB with SOR 30 ms |
| Circuit Breaker Type to be Associated | Motor Protection |
