CAF6-20M
رقم القطعة: GJL1201330R0007
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

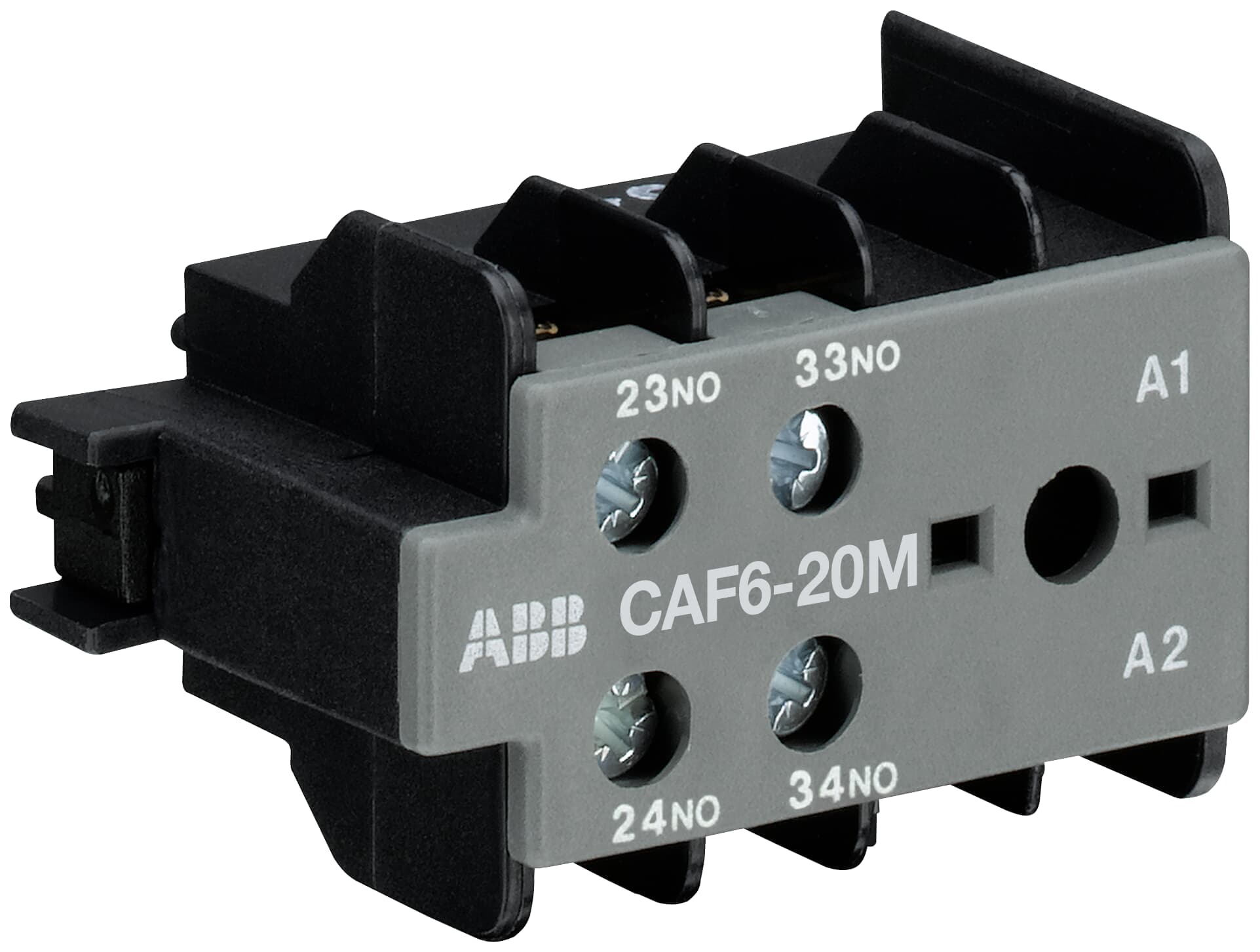

كونتاكت مساعد CAF6-20M، ثنائي الأقطاب
المواصفات
| Extended Product Type | CAF6-20M |
|---|---|
| Product ID | GJL1201330R0007 |
| EAN | 4013614148392 |
| Catalog Description | CAF6-20M Auxiliary Contact 2NO/0NC screw terminal, front mounted |
| Long Description | The CAF6-20M is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals. |
| Display Name | CAF6-20M |
| Country of Origin | Czechia |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| EPLAN Data | 9AAC166197_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC102005M0101 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 47.5 mm |
| Product Net Depth / Length | 26.5 mm |
| Product Net Height | 29 mm |
| Product Net Weight | 0.02 kg |
| Number of Main Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-1 |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | 690 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | Auxiliary Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 600 cycles per hour |
| Power Loss | at Rated Operating Conditions per Pole 0.27 W |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.1 N·m |
| Terminal Type | Screw Terminals |
| Product Name | Auxiliary Contact |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 5 A |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 15g |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| A2L Certificate – IEC | 1SAA938000-4601 |
| CCC Certificate | 2024010305658959 |
| Declaration of Conformity - CE | 1SAD101100-3101 |
| Declaration of Conformity - UKCA | 1SAD201100-3101 |
| UL Certificate | UL_E48139 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 115 mm |
| Package Level 1 Depth / Length | 280 mm |
| Package Level 1 Height | 54 mm |
| Package Level 1 Gross Weight | 0.24 kg |
| Package Level 1 EAN | 4013614412288 |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Norway) | 4184089 |
| Source URL | https://new.abb.com/products/GJL1201330R0007/caf6-20m |
| ABB Taxonomy Path | Low Voltage Products and Systems > Control Products > Contactors > Mini Contactors > Accessories for Mini Contactors |
| ABB Classification IDs | 9AAC910006, 9AAC720001, 9AAC100112, 9AAF400065, 9AAC166197, 9AAF622810, 9AAF626992 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Auxiliary Circuit 6 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (24 V) 4 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 1.5 A |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Minimum Switching Capacity | 17 V |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm² |
| Suitable For | B6-30-10 |
| Suitable for Product Class | Mini Contactors |
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 1/2x 22-10 AWG |
| Contact Rating UL/CSA | A600 |
| Resistance to Vibrations | 5g 5 ... 150 Hz |
| Lead Time | 0 day |
| Country of Origin (CountryOfOrigin_PUINABB015) | India |
| Made To Order (MadeToOrder_PUINABB015) | No |
| Warranty Return (NoWarrantyReturn_PUINABB015) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUINABB015) | Active |
| Quote Only (QuoteOnly_PUINABB015) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUINABB015) | INABB015EXPU |
| Country of Origin (CountryOfOrigin_PUBRABB008) | Czechia |
| Lead Time (LeadTime_PUBRABB008) | 0 day |
| Made To Order (MadeToOrder_PUBRABB008) | No |
| Warranty Return (NoWarrantyReturn_PUBRABB008) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUBRABB008) | Active |
| Quote Only (QuoteOnly_PUBRABB008) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUBRABB008) | BRABB008EXPU |
| Country of Origin (CountryOfOrigin_PUCHSEC006) | Czechia |
| Lead Time (LeadTime_PUCHSEC006) | 0 day |
| Made To Order (MadeToOrder_PUCHSEC006) | No |
| Warranty Return (NoWarrantyReturn_PUCHSEC006) | Product under warranty must be returned |
| Product Sales Status (ProductSalesStatus_PUCHSEC006) | Active |
| Quote Only (QuoteOnly_PUCHSEC006) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUCHSEC006) | CHSEC006EXPU |
| Dimension Diagram | GJL1200446F0001 |
| Instructions and Manuals (Part 2) | 2CDC102005M0101 |
| RMRS Certificate | 1SAA938001-0704 |
| Lead Time (LeadTime_PUCZABB004) | 167 day |
| Warranty Return (NoWarrantyReturn_PUCZABB004) | Product under warranty must be returned |
| Stocked At Warehouses (StockedAtWarehouses_PUCZABB004) | CZABB004EXPU |
| Country of Origin (CountryOfOrigin_PUCZABB004) | Czechia |
| Made To Order (MadeToOrder_PUCZABB004) | No |
| Product Sales Status (ProductSalesStatus_PUCZABB004) | Active |
| Quote Only (QuoteOnly_PUCZABB004) | No |
| cULus Certificate | cUL_E48139 |
