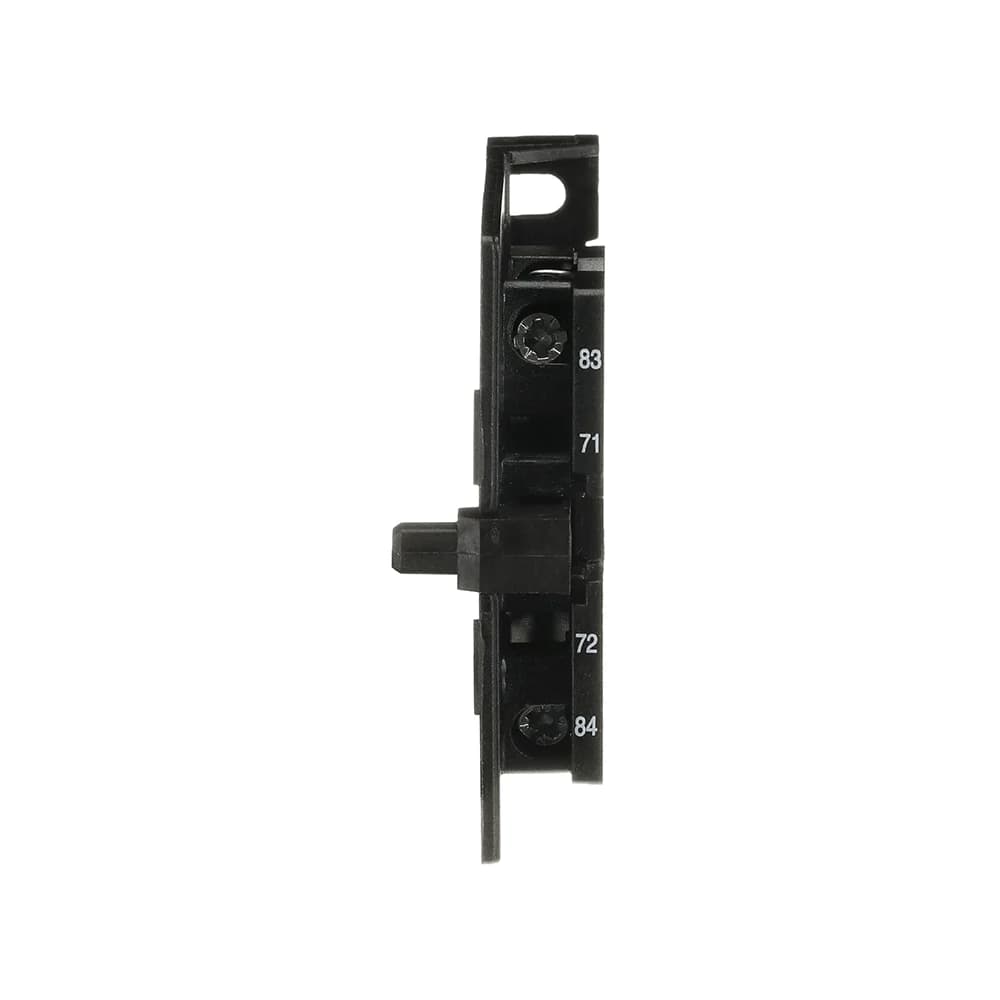

CAL16-11D
رقم القطعة: SK829002-D
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
كتلة ملامسات مساعدة CAL16-11D
المواصفات
| Extended Product Type | CAL16-11D |
|---|---|
| Product ID | SK829002-D |
| EAN | 7320500029695 |
| Catalog Description | CAL16-11D Auxiliary Contact Block |
| Long Description | 2 pole screw type right outer side mounted auxilliary contact block, instantaneous N.O. and N.C. contacts, suitable for standard industrial environments |
| Display Name | CAL16-11D |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 5309660-30 |
| Product Net Width | 12.5 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Height | 68 mm |
| Product Net Weight | 0.05 kg |
| Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 100 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
| Power Loss | at Rated Operating Conditions per Pole 0.2 W |
| Degree of Protection | IP20 |
| Product Name | Auxiliary Contact Block |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Declaration of Conformity - CE | 2CMT2015-005448 |
| Declaration of Conformity - UKCA | 2CMT2020-006119 |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 18 mm |
| Package Level 1 Gross Weight | 0.06 kg |
| Package Level 1 EAN | 7320500029695 |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Finland) | 3846772 |
| Source URL | https://new.abb.com/products/SK829002-D/cal16-11d |
| ABB Taxonomy Path | Low Voltage Products and Systems > Control Products > Contactors > Block Contactors |
| ABB Classification IDs | 9AAC910006, 9AAC100109, 9AAC167263 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 1 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 6 A |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Minimum Switching Capacity | 0.25 VA/ 12 V / 5 mA |
| Suitable For | EH175 |
| Suitable for Product Class | Block Contactors |
| CQC Certificate | CQC2012010304553193 |
| Declaration of Conformity - CCC | 2020980304001516 |
| Lead Time | 35 day |
| Made To Order (MadeToOrder_PUUSINY) | No |
| Product Sales Status (ProductSalesStatus_PUUSINY) | Active |
| Quote Only (QuoteOnly_PUUSINY) | No |
| Stocked At Warehouses (StockedAtWarehouses_PUUSINY) | USSVCEXPU |
| Warranty Return (NoWarrantyReturn_PUUSINY) | Product under warranty must be returned |
| Country of Origin (CountryOfOrigin_PUSGRL4414) | Sweden |
| Product Sales Status (ProductSalesStatus_PUSGRL4414) | Inactive |
