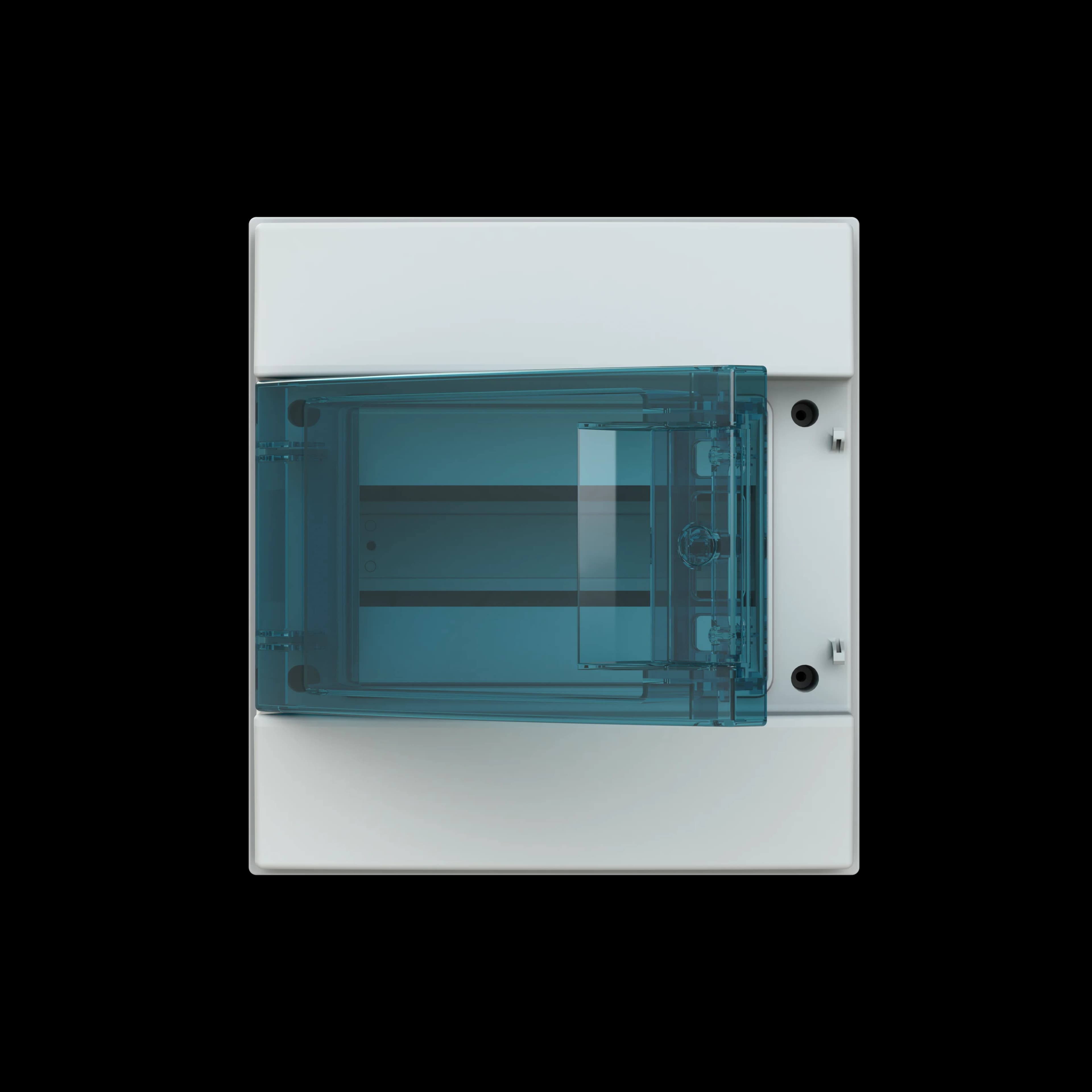

65P08X12A
رقم القطعة: 1SLM006501A1201
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
صندوق توزيع كهربائي 65P08X12A
المواصفات
| Extended Product Type | 65P08X12A |
|---|---|
| Product ID | 1SLM006501A1201 |
| EAN | 8000126107562 |
| Catalog Description | Consumer unit MISTRAL65, Surface mounting, 8 modules, 1 row(s), IP65, Door: Single, Plastic, Transparent, Dimensions: 250 mm x 232 mm x 155 mm |
| Long Description | MISTRAL65 transparent door 8M 12SM;MISTRAL65 transparent door 8M 12SM |
| Display Name | 65P08X12A |
| Data Sheet, Technical Information | 1SLC801013D0201 |
| Instructions and Manuals | 9AKK108468A8244 |
| Product Net Width | 232 mm |
| Product Net Depth / Length | 155 mm |
| Product Net Height | 250 mm |
| Product Net Weight | 1.15 kg |
| Power Loss | Δt = 30K - Enclosures 20 W |
| Degree of Protection | IP65 |
| Terminal Type | Screw Terminals |
| Width in Number of Modular Spacings | 8 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| REACH Declaration | 9AKK108469A7731 |
| RoHS Declaration | 9AKK108468A2430 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Declaration of Conformity - CE | 9AKK108468A2430 |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 13.65 kg |
| Object Classification Code | U |
| ETIM 9 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Source URL | https://new.abb.com/products/1SLM006501A1201/65p08x12a |
| ABB Taxonomy Path | Low Voltage Products and Systems > Enclosures > Consumer Units > Consumer Units > MISTRAL65 |
| ABB Classification IDs | 9AAC910006, 9AAC100241, 9AAC177834 |
| ETIM 10 | EC000214 - Small distribution board |
| Environmental Information | 1SLC801013D0201 |
| ABB Type Designation | Mistral65 |
| Type Designation | Mistral65 |
| Color | Light grey |
| Mounting Type | Surface mounting |
| Enclosure Material | thermoplastic |
| Impact Resistance Rating | IK09 |
| Configuration Type | Assembled with DIN-rail |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20221015 |
| REACH Date | 20240429 |
| Number of Line Terminals | 0 |
| Number of Rows | 1 |
| Closure Type | Snap Function |
| Cover Plate Type | Door |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Accessories Available | Yes |
| DIN Place Units | 8 |
| Housing Material | Plastic |
| Door Material | Plastic |
| Transparent Door | Yes |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Number of Modules | 8 |
| Protection Class | Isolated (Class II) |
| Built-In Depth (<em>t<sub>2</sub></em>) | 98 mm |
| Building Information Modeling – BIM | 9AKK107046A8397 |
