XT2N 160 Ekip Dip LIG In=100A 3p F F

ABB

XT2N 160 Ekip Dip LIG In=100A 3p F F

رقم القطعة: 1SDA100013R1

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

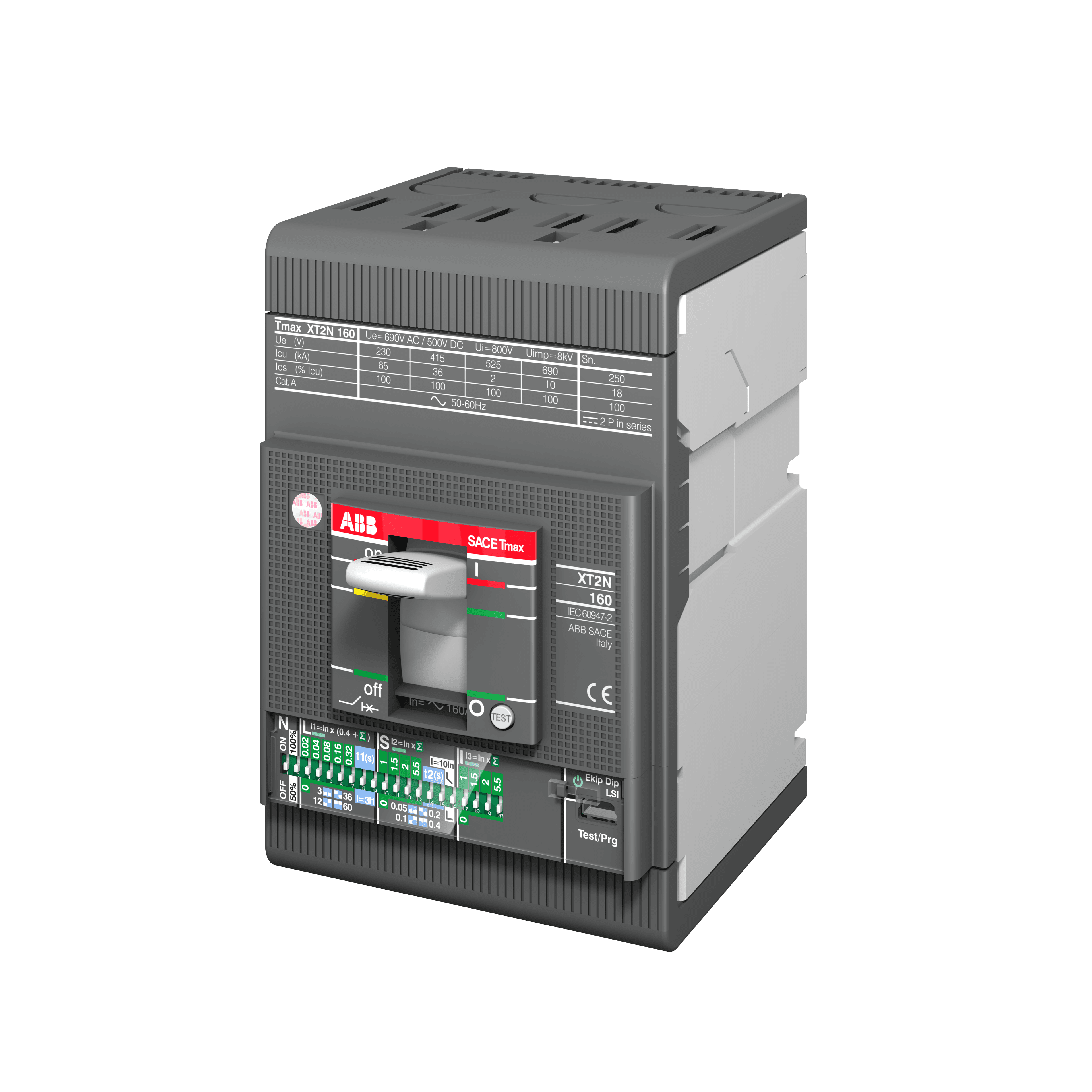

قاطع MCCB من نوع XT2N، إطار 160 أمبير، وحدة فصل Ekip DIP LIG، In=100 أمبير، ثلاثي الأقطاب، ثابت، أطراف أمامية

المواصفات

Extended Product TypeXT2N 160 Ekip Dip LIG In=100A 3p F F
Product ID1SDA100013R1
EAN8056221000680
Catalog DescriptionXT2N 160 Ekip Dip LIG In=100A 3p F F
Long DescriptionC.BREAKER TMAX XT2N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 100 A
Display NameXT2N 160 Ekip Dip LIG In=100A 3p F F
Country of OriginIndia
Made To OrderNo
Warranty ReturnProduct under warranty must be returned
Product Sales StatusActive
Quote OnlyNo
Stocked At WarehousesINABB015EXPU
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Data Sheet, Technical Information1SDC210100D0206
Instructions and Manuals1SDH000721R0001
CAD Dimensional Drawing1SDH002230A1001
Product Net Width90 mm
Product Net Depth / Length82.5 mm
Product Net Height130 mm
Product Net Weight1.12 kg
Number of Poles3P
StandardsIEC60947-2
Rated Operational Voltage690 V AC
Rated Insulation Voltage (U<sub>i</sub>)1000 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)8 kV
Electrical Durability120 cycles per hour
Mechanical Durability240 cycles per hour
Power Lossat Rated Operating Conditions per Pole 8.1 W
Product NameMoulded Case Circuit Breaker
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2349
Environmental Product Declaration - EPD9AKK108469A1855
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 55.70 %
Declaration of Conformity - CE9AKK106713A5901
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Depth / Length145 mm
Package Level 1 Height208 mm
Package Level 1 Gross Weight1.22 kg
Package Level 1 EAN8056221000680
Object Classification CodeQ
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
eClassV11.1 : 27370409
Source URLhttps://new.abb.com/products/1SDA100013R1/xt2n-160-ekip-dip-lig-in-100a-3p-f-f
ABB Taxonomy PathLow Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT
ABB Classification IDs9AAC910006, 9AAC167301, 9AAC167318
SCIP55c06c97-447f-43de-aa29-6bc6b7833250 China
Simplified SCIPd2574bb8-ff45-4060-a418-94b45a7c95c0 Sweden
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>)(220 V AC) 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>)(220 V AC) 65 kA
Environmental Information9AKK108467A6707
Product Main TypeSACE Tmax XT
Mechanical Drawings1SDH000721R0100
Rated Current (I<sub>n</sub>)100 A
Order Multiple1 piece
Product TypeAutomatic Circuit Breaker
Extended Product LifetimeProduct Modularity
Wiring Diagram1SDM000068R0001
EU Data Act Compliance Declaration1SDH002560A1001
Order Code US and CanadaXT2NE3100CFF000XXX
Current TypeAC
VersionF
Rated Uninterrupted Current (I<sub>u</sub>)160 A
ReleaseEkip Dip LIG
Release TypeEL
Short-Circuit Performance LevelN
Sub-typeXT2
Terminal Connection TypeFront
Opening TimeCB with SOR 30 ms
Circuit Breaker Type to be AssociatedPower Distribution
