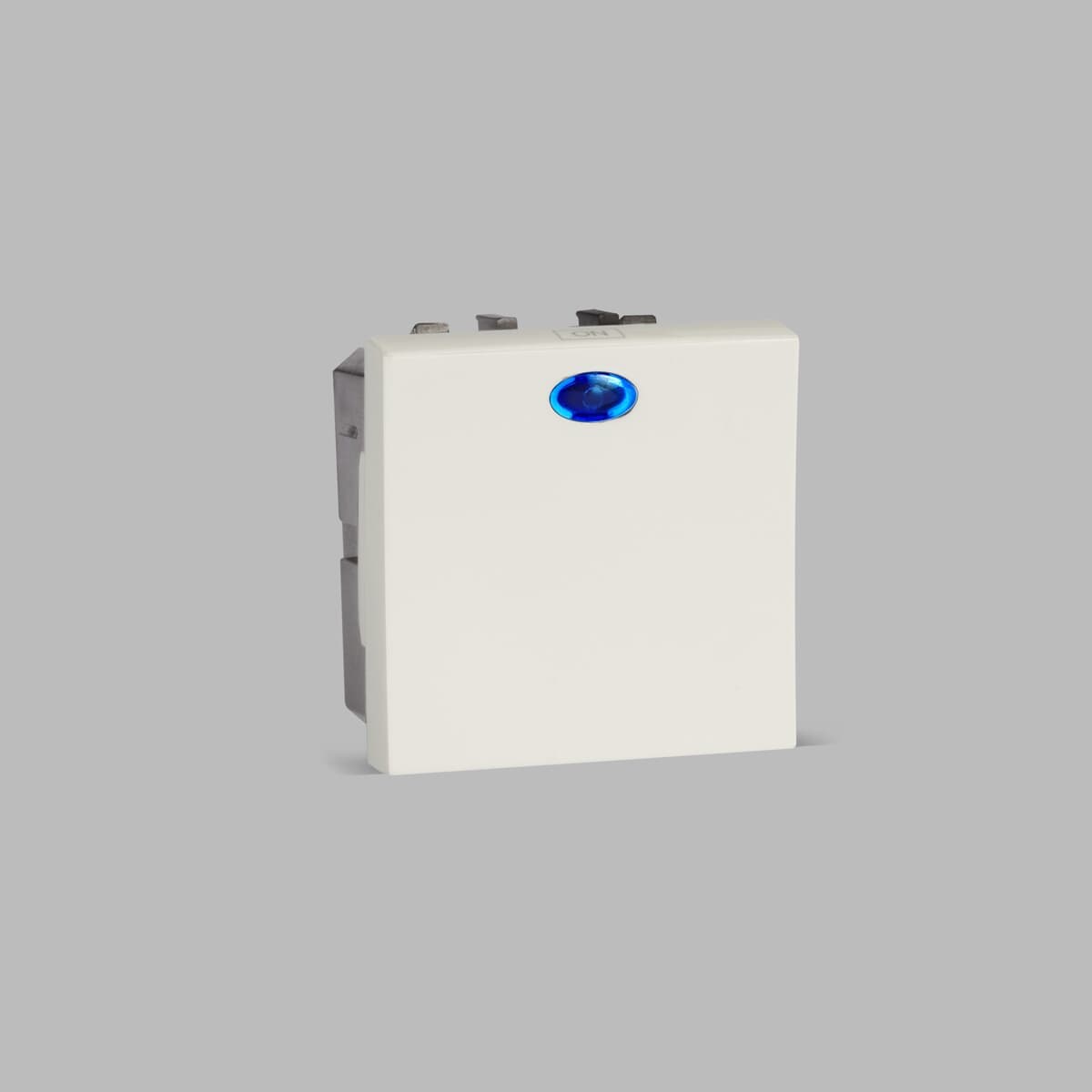

IIS2321L PL 32A, DP Switch
رقم القطعة: 1SYK100001A1108
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
مفتاح إنارة IIS2321L PL 32A, DP Switch
المواصفات
| Extended Product Type | IIS2321L PL 32A, DP Switch |
|---|---|
| Product ID | 1SYK100001A1108 |
| Catalog Description | Switch 2-pole switch with LED not exchangeable Silver - Ivie |
| Long Description | Order Code: 1SYK100001A1108, Description:IIS2321L PL 32A, DP Switch, Ivie,Silver painted |
| Display Name | IIS2321L PL 32A, DP Switch |
| Product Net Width | 0.044 m |
| Product Net Depth / Length | 0.0434 m |
| Product Net Height | 0.0463 m |
| Product Net Weight | 0.0508 kg |
| Degree of Protection | IP20 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| ETIM 9 | EC001590 - Installation switch |
| Source URL | https://new.abb.com/products/1SYK100001A1108/iis2321l-pl-32a-dp-switch |
| ABB Taxonomy Path | Low Voltage Products and Systems > Wiring Accessories - Light Switch Ranges > Cover Plates and Control Elements > Mechanical Controls |
| ABB Classification IDs | 9AAC910006, 9AAF626619, 9AAF628755 |
| ETIM 10 | EC001590 - Installation switch |
| Rated Voltage (U<sub>r</sub>) | 240 V |
| Color | Silver |
| Rated Current (I<sub>n</sub>) | 32 A |
| Mounting Type | Flush Mounted |
| EU Data Act Applicability and Compliance | Not Applicable |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Connection Type | Screw |
| Function | Function lighting: Illuminated (on) |
| RAL Number | RAL 9010 - Pure White |
| Number of Modules | 1 |
| Building Information Modeling – BIM | N |
| Actuator Type | Rocker / PushButton |
| Design Range | Ivie |
| Material | Thermoplastic |
| Type of Fastening | Engage (Snap) |
| Lamp Type | LED not exchangeable |
| Surface Finishing | Lacquered |
| Label Space Provided | Without Label Space |
| Number of Rocker Switches | 1 |
| Wiring Configuration | 2-pole switch |
| Illumination | Non-illuminated |
| Maximum Switching Current | Fluorescent Lamps 32 |
