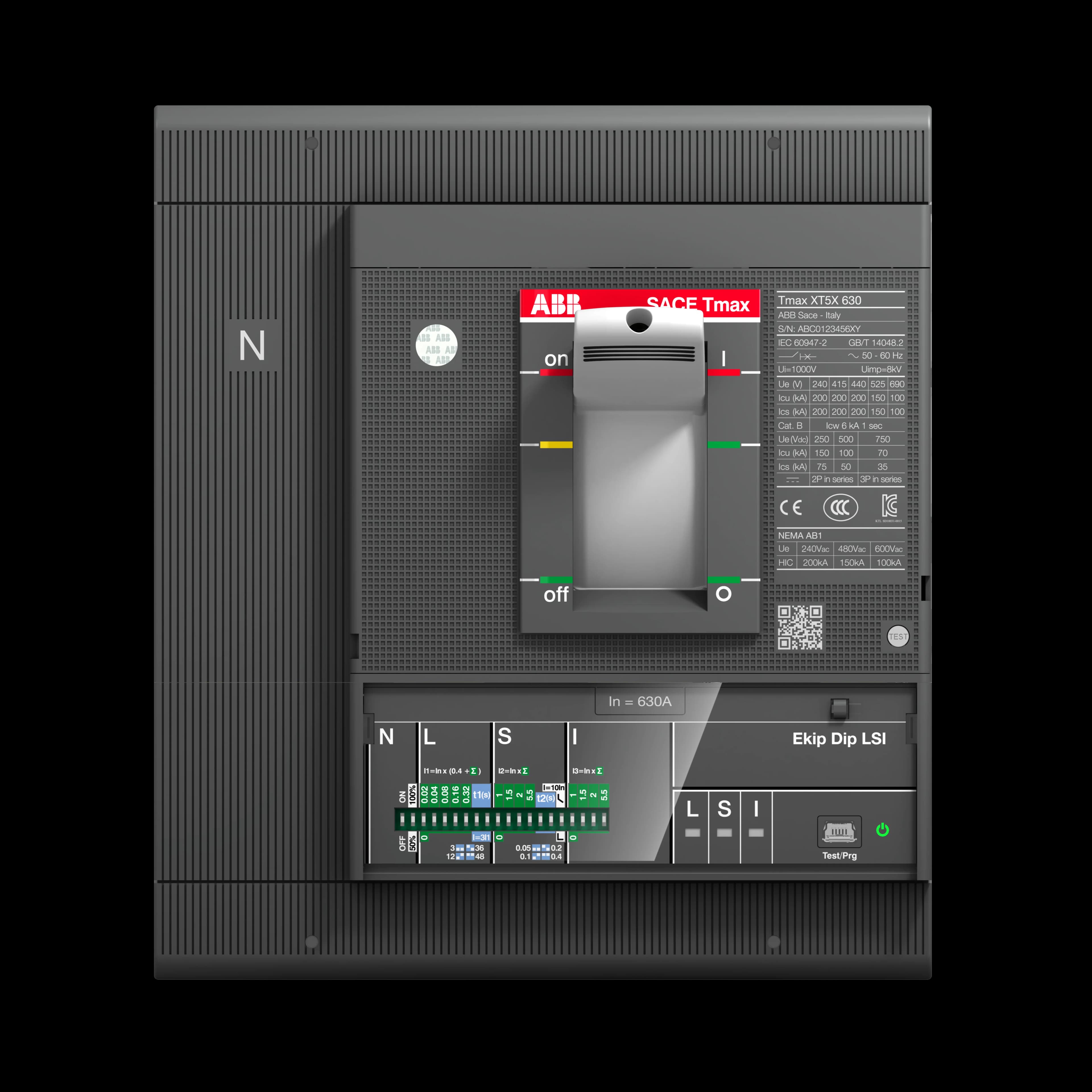

XT5N 400 Ekip Dip LSIG In=320 4p F F
رقم القطعة: 1SDA100403R1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
قاطع MCCB من نوع XT5N، إطار 400 أمبير، وحدة فصل Ekip DIP LSIG، In=320 أمبير، رباعي الأقطاب، ثابت، أطراف أمامية
المواصفات
| Extended Product Type | XT5N 400 Ekip Dip LSIG In=320 4p F F |
|---|---|
| Product ID | 1SDA100403R1 |
| EAN | 8056221004800 |
| Catalog Description | XT5N 400 Ekip Dip LSIG In=320 4p F F |
| Long Description | C.BREAKER TMAX XT5N 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LSIG R 320 |
| Display Name | XT5N 400 Ekip Dip LSIG In=320 4p F F |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Instructions and Manuals | 1SDH002011A1001 |
| CAD Dimensional Drawing | 1SDH002065A1183 |
| Product Net Width | 186 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Height | 205 mm |
| Product Net Weight | 6.4 kg |
| Number of Poles | 4P |
| Standards | IEC60947-2 |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | 5 kA |
| Rated Insulation Voltage (U<sub>i</sub>) | 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Electrical Durability | 7000 cycle |
| Mechanical Durability | 20000 cycle |
| Power Loss | 11.6 W |
| Product Name | Moulded Case Circuit Breaker |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2354 |
| Environmental Product Declaration - EPD | 9AKK108468A1899 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 61.8 % |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Gross Weight | 6.888 kg |
| Package Level 1 EAN | 8056221004800 |
| Object Classification Code | Q |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| eClass | V11.1 : 27370409 |
| Source URL | https://new.abb.com/products/1SDA100403R1/xt5n-400-ekip-dip-lsig-in-320-4p-f-f |
| ABB Taxonomy Path | Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax XT |
| ABB Classification IDs | 9AAC910006, 9AAC167301, 9AAC412848 |
| SCIP | 686ba1e1-577c-4903-a0e5-8f65a1e23ad1 China |
| Simplified SCIP | a39a038d-43a9-4226-b171-97ebe3400d7e Croatia |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>) | (220 V AC) 70 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>) | (220 V AC) 70 kA |
| Environmental Information | 9AKK108467A6707 |
| Product Main Type | SACE Tmax XT |
| Mechanical Drawings | 1SDH002011A1101 |
| Rated Current (I<sub>n</sub>) | 320 A |
| Order Multiple | 1 piece |
| Product Type | Automatic Circuit Breaker |
| Extended Product Lifetime | Product Modularity |
| Wiring Diagram | 1SDM000005A1001 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Order Code US and Canada | XT5NE432AGFF000XXX |
| Current Type | AC |
| Version | F |
| Rated Uninterrupted Current (I<sub>u</sub>) | 400 A |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Circuit Breaker Type to be Associated | Power Distribution |
