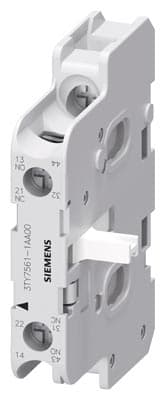

Auxiliary switch block for size 2...14 1st auxiliary switch block left or right
رقم القطعة: 3TY7561-1AA00
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Auxiliary switch block for size 2...14 1st auxiliary switch block left or right
المواصفات
| MLFB | 3TY7561-1AA00 |
|---|---|
| EAN | 4011209363724 |
| UPC | 754554478494 |
| Product Family | For 3TF6 vacuum contactors |
| Catalog Node Id | 10017687 |
| Overview Node Id | 10007509 |
| Product Group | 5805 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | AUXILIARY CONTACT BLOCK 1NO+1NC |
| Classification eClass | 27-37-13-02 (9.1); 27-37-13-02 (9); 27-37-13-02 (8); 27-37-13-02 (7.1); 27-37-13-02 (6); 27-37-13-02 (16); 27-37-13-02 (14); 27-37-13-02 (12) |
| Classification ETIM | EC000041 (9); EC000041 (8); EC000041 (7); EC000041 (10) |
| Net Weight | 0,038 Kg |
| Package Dimensions | 52 x 49 x 73 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 3 Day/Days |
| Country Of Origin | Turkiye |
| Returnable | Yes |
| Commodity Code | 85365080 |
| Export Control | AL : N / ECCN : N |
| WEEE2 Category | 5 |
| RoHS Conformity | Since: 01.07.06 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | Auxiliary switch block for size 2...14 1st auxiliary switch block left or right |
| Description FR | Auxiliary switch block for size 2...14 1st auxiliary switch block left or right |
| Description ES | Auxiliary switch block for size 2...14 1st auxiliary switch block left or right |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3TY7561-1AA00&language=en&caller=SiePortal |
| Classification IDEA | 4743 (4) |
| Classification UNSPSC | 39-12-15-22 (15) |
