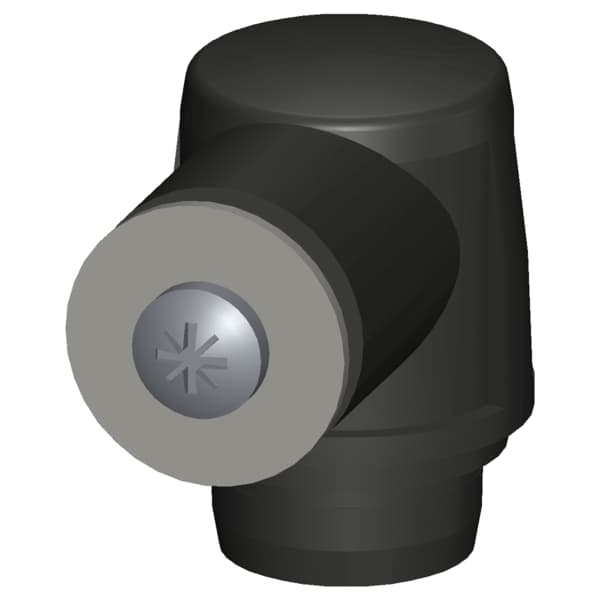

Pivoting lever drive (Please order lever separately) for position switch 3SE52/3SF12 für 31/50 mm, S
رقم القطعة: 3SE5000-0AK00
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Pivoting lever drive (Please order lever separately) for position switch 3SE52/3SF12 für 31/50 mm, Switch points according to EN 50047. The switching direction the lever is on left / right or left only or only to the right. Delivery state ist right / left.
المواصفات
| MLFB | 3SE5000-0AK00 |
|---|---|
| EAN | 4011209696037 |
| Product Family | Enclosure width 31 mm acc. to EN 50047 |
| Catalog Node Id | 10037480 |
| Overview Node Id | 10007509 |
| Product Group | 5318 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | PART-TURN ACTUATOR,FOR 3SE52,EN50047 |
| Classification eClass | 27-27-06-12 (9.1); 27-27-06-12 (9); 27-27-06-05 (8); 27-27-06-05 (7.1); 27-27-06-05 (6); 27-27-06-12 (16); 27-27-06-12 (14); 27-27-06-12 (12) |
| Classification ETIM | EC001487 (9); EC001487 (8); EC001487 (7); EC001487 (10) |
| Net Weight | 0,032 Kg |
| Package Dimensions | 45 x 38 x 23 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 3 Day/Days |
| Country Of Origin | Germany |
| Returnable | No |
| Commodity Code | 85389099 |
| Export Control | AL : N / ECCN : 9N9999 |
| WEEE2 Category | No |
| RoHS Conformity | Since: 01.07.06 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | Pivoting lever drive (Please order lever separately) for position switch 3SE52/3SF12 für 31/50 mm, Switch points according to EN 50047. The switching direction the lever is on left / right or left only or only to the right. Delivery state ist right / left. |
| Description FR | Pivoting lever drive (Please order lever separately) for position switch 3SE52/3SF12 für 31/50 mm, Switch points according to EN 50047. The switching direction the lever is on left / right or left only or only to the right. Delivery state ist right / left. |
| Description ES | Pivoting lever drive (Please order lever separately) for position switch 3SE52/3SF12 für 31/50 mm, Switch points according to EN 50047. The switching direction the lever is on left / right or left only or only to the right. Delivery state ist right / left. |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3SE5000-0AK00&language=en&caller=SiePortal |
| Classification IDEA | 3269 (4) |
| Classification UNSPSC | 31-25-15-16 (15) |
