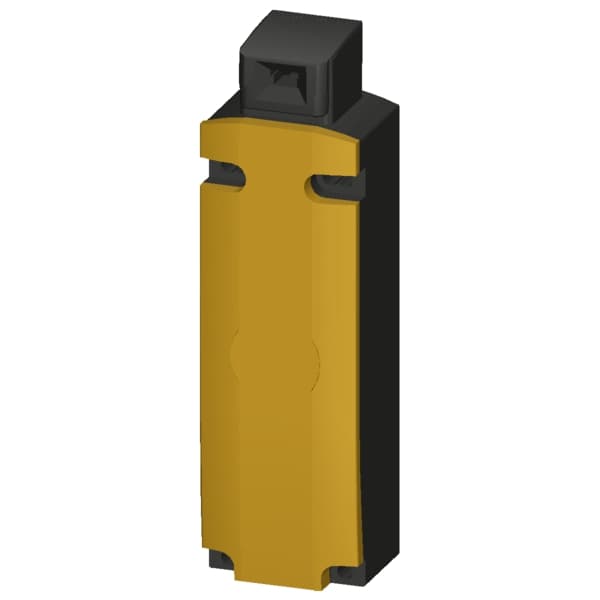

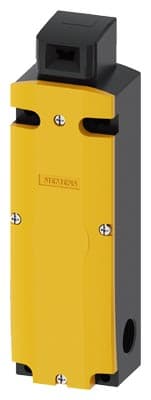

safety position switch with guard lock locking force 1300 N 5 approach directions solenoid-locked ma
رقم القطعة: 3SE5322-0SB21
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
safety position switch with guard lock locking force 1300 N 5 approach directions solenoid-locked magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO matching actuator 3SE5000-0AV0. to be ordered separately
المواصفات
| MLFB | 3SE5322-0SB21 |
|---|---|
| EAN | 4011209683280 |
| Product Family | 3SE5, plastic enclosures with locking force greater than 1 000 N |
| Catalog Node Id | 10036277 |
| Overview Node Id | 10007509 |
| Product Group | 5317 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | POS.SWITCH W.SOL.INTERL.MAGN.FIELD LOCKD |
| Classification eClass | 27-27-06-11 (9.1); 27-27-06-11 (9); 27-27-06-11 (8); 27-27-06-11 (7.1); 27-27-06-11 (6); 27-27-06-11 (16); 27-27-06-11 (14); 27-27-06-11 (12) |
| Classification ETIM | EC002593 (9); EC002593 (8); EC002593 (7); EC002593 (10) |
| Net Weight | 0,495 Kg |
| Package Dimensions | 213 x 61.5 x 84 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 3 Day/Days |
| Country Of Origin | Germany |
| Returnable | Yes |
| Commodity Code | 85365019 |
| Export Control | AL : N / ECCN : N |
| WEEE2 Category | 5 |
| RoHS Conformity | Since: 01.10.11 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | safety position switch with guard lock locking force 1300 N 5 approach directions solenoid-locked magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO matching actuator 3SE5000-0AV0. to be ordered separately |
| Description FR | safety position switch with guard lock locking force 1300 N 5 approach directions solenoid-locked magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO matching actuator 3SE5000-0AV0. to be ordered separately |
| Description ES | safety position switch with guard lock locking force 1300 N 5 approach directions solenoid-locked magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO matching actuator 3SE5000-0AV0. to be ordered separately |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3SE5322-0SB21&language=en&caller=SiePortal |
| Classification IDEA | 5202 (4) |
| Classification UNSPSC | 39-12-22-13 (15) |
