position switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC slow-action con

Siemens

position switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC slow-action con

رقم القطعة: 3SE5242-0BC05

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

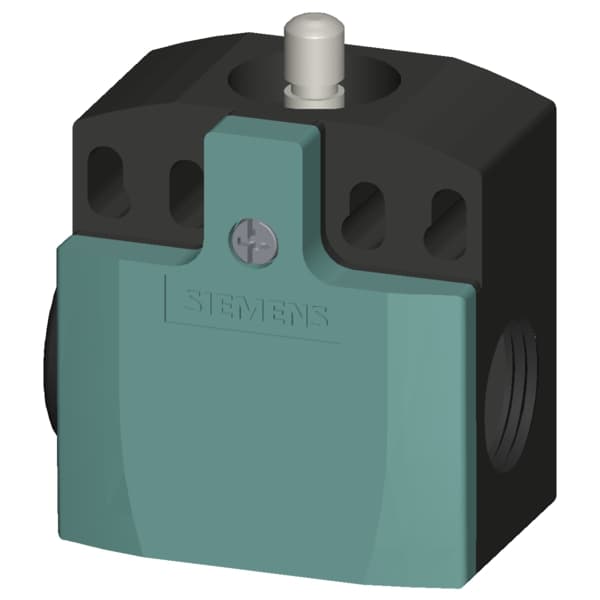

position switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC slow-action contacts, rounded plunger

المواصفات

MLFB3SE5242-0BC05
EAN4011209694859
Product FamilyEnclosure width 50 mm
Catalog Node Id10037483
Overview Node Id10007509
Product Group5317
Group Classification KeyR711
Product ClassStraightforward, can be reused over the short term
Material Short TextSIRIUS POSITION SWITCH
Classification eClass27-27-06-01 (9.1); 27-27-06-01 (9); 27-27-06-01 (8); 27-27-06-01 (7.1); 27-27-06-01 (6); 27-27-06-01 (16); 27-27-06-01 (14); 27-27-06-01 (12)
Classification ETIMEC000030 (9); EC000030 (8); EC000030 (7); EC000030 (10)
Net Weight0,065 Kg
Package Dimensions67 x 43 x 118 MM
Standard Package Quantity1 Piece
Minimum Order Quantity1
Delivery Time3 Day/Days
Country Of OriginGermany
ReturnableYes
Commodity Code85365080
Export ControlAL : N / ECCN : N
WEEE2 Category5
RoHS ConformitySince: 01.07.06
Lifecycle MilestoneP.M300
Phased Out Since0001-01-01T00:00:00
Available In CatalogYes
SaleableYes
Description DEposition switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC slow-action contacts, rounded plunger
Description FRposition switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC slow-action contacts, rounded plunger
Description ESposition switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC slow-action contacts, rounded plunger
Datasheet URLhttps://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3SE5242-0BC05&language=en&caller=SiePortal
Classification IDEA5202 (4)
Classification UNSPSC39-12-22-13 (15)
