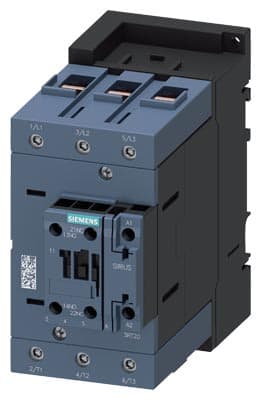

power contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 24 V DC, 0.8-1.2* Uc, with integrated vari
رقم القطعة: 3RT2046-1KB40
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
power contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 24 V DC, 0.8-1.2* Uc, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, frame size: S3, suitable for PLC outputs
المواصفات
| MLFB | 3RT2046-1KB40 |
|---|---|
| EAN | 4047621018423 |
| UPC | 804766406904 |
| Product Family | SIRIUS 3RT contactors, 3-pole, up to 250 kW |
| Catalog Node Id | 10046385 |
| Overview Node Id | 10007509 |
| Product Group | 5370 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | COUPL. CONT., AC3:45KW, 1NO+1NC, 24 V DC |
| Classification eClass | 27-37-10-03 (9.1); 27-37-10-03 (9); 27-37-10-03 (8); 27-37-10-03 (7.1); 27-37-10-03 (6); 27-37-10-03 (16); 27-37-10-03 (14); 27-37-10-03 (12) |
| Classification ETIM | EC000066 (9); EC000066 (8); EC000066 (7); EC000066 (10) |
| Net Weight | 1,773 Kg |
| Package Dimensions | 168 x 161 x 80 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 3 Day/Days |
| Country Of Origin | Germany |
| Returnable | Yes |
| Commodity Code | 85364190 |
| Export Control | AL : N / ECCN : N |
| WEEE2 Category | 5 |
| RoHS Conformity | Since: 01.03.17 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | power contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 24 V DC, 0.8-1.2* Uc, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, frame size: S3, suitable for PLC outputs |
| Description FR | power contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 24 V DC, 0.8-1.2* Uc, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, frame size: S3, suitable for PLC outputs |
| Description ES | power contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 24 V DC, 0.8-1.2* Uc, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, frame size: S3, suitable for PLC outputs |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3RT2046-1KB40&language=en&caller=SiePortal |
| Classification IDEA | 4755 (4) |
| Classification UNSPSC | 39-12-15-29 (15) |
