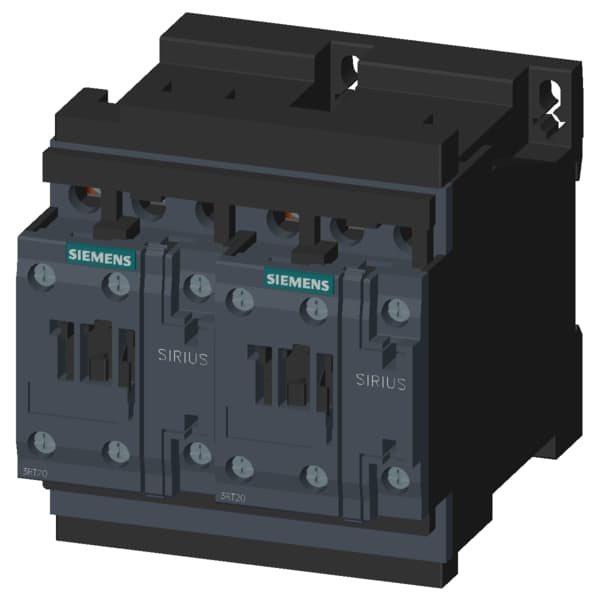

reversing contactor assembly, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole, 24 V DC, screw terminal, elec
رقم القطعة: 3RA2326-8XB30-1BB4
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
reversing contactor assembly, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole, 24 V DC, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1 NO
المواصفات
| MLFB | 3RA2326-8XB30-1BB4 |
|---|---|
| EAN | 4011209836297 |
| Product Family | SIRIUS 3RA23 reversing contactor assemblies, up to 55 kW |
| Catalog Node Id | 10046387 |
| Overview Node Id | 10007509 |
| Product Group | 5337 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | REV.COMB.,11KW, DC24V |
| Classification eClass | 27-37-10-09 (9.1); 27-37-10-09 (9); 27-37-10-09 (8); 27-37-10-09 (7.1); 27-37-10-09 (6); 27-37-10-09 (16); 27-37-10-09 (14); 27-37-10-09 (12) |
| Classification ETIM | EC000010 (9); EC000010 (8); EC000010 (7); EC000010 (10) |
| Net Weight | 1,202 Kg |
| Package Dimensions | 125 x 110 x 172 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 3 Day/Days |
| Country Of Origin | Germany |
| Returnable | Yes |
| Commodity Code | 85364900 |
| Export Control | AL : N / ECCN : N |
| WEEE2 Category | 5 |
| RoHS Conformity | Since: 01.10.09 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | reversing contactor assembly, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole, 24 V DC, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1 NO |
| Description FR | reversing contactor assembly, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole, 24 V DC, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1 NO |
| Description ES | reversing contactor assembly, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole, 24 V DC, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1 NO |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3RA2326-8XB30-1BB4&language=en&caller=SiePortal |
| Classification IDEA | 4755 (4) |
| Classification UNSPSC | 39-12-15-29 (15) |
