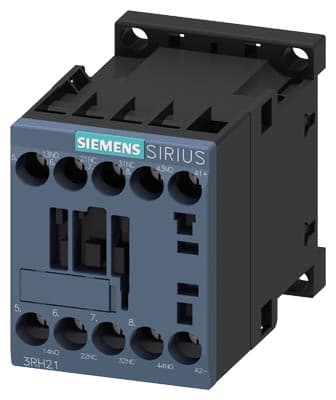

coupling contactor relay, 2 NO + 2 NC, 24 V DC, 0.85-1.85*Us, with integrated suppressor diode, scre
رقم القطعة: 3RH2122-1SB40
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
coupling contactor relay, 2 NO + 2 NC, 24 V DC, 0.85-1.85*Us, with integrated suppressor diode, screw terminal, frame size S00, suitable for PLC outputs, not expandable with auxiliary switch
المواصفات
| MLFB | 3RH2122-1SB40 |
|---|---|
| EAN | 4011209846739 |
| UPC | 662643903539 |
| Product Family | SIRIUS 3RH2 contactor relays, 4- and 8-pole |
| Catalog Node Id | 10046398 |
| Overview Node Id | 10007509 |
| Product Group | 5331 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | COUPL.CONT.RELAY,2NO+2NC,DC24V,SUPDIO |
| Classification eClass | 27-37-10-01 (9.1); 27-37-10-01 (9); 27-37-10-01 (8); 27-37-10-01 (7.1); 27-37-10-01 (6); 27-37-10-01 (16); 27-37-10-01 (14); 27-37-10-01 (12) |
| Classification ETIM | EC000196 (9); EC000196 (8); EC000196 (7); EC000196 (10) |
| Net Weight | 0,282 Kg |
| Package Dimensions | 61.5 x 50 x 77.5 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 20 Day/Days |
| Country Of Origin | Germany |
| Returnable | Yes |
| Commodity Code | 85364190 |
| Export Control | AL : N / ECCN : N |
| WEEE2 Category | 5 |
| RoHS Conformity | Since: 01.10.09 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | coupling contactor relay, 2 NO + 2 NC, 24 V DC, 0.85-1.85*Us, with integrated suppressor diode, screw terminal, frame size S00, suitable for PLC outputs, not expandable with auxiliary switch |
| Description FR | coupling contactor relay, 2 NO + 2 NC, 24 V DC, 0.85-1.85*Us, with integrated suppressor diode, screw terminal, frame size S00, suitable for PLC outputs, not expandable with auxiliary switch |
| Description ES | coupling contactor relay, 2 NO + 2 NC, 24 V DC, 0.85-1.85*Us, with integrated suppressor diode, screw terminal, frame size S00, suitable for PLC outputs, not expandable with auxiliary switch |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3RH2122-1SB40&language=en&caller=SiePortal |
| Classification IDEA | 4755 (4) |
| Classification UNSPSC | 39-12-15-29 (15) |
