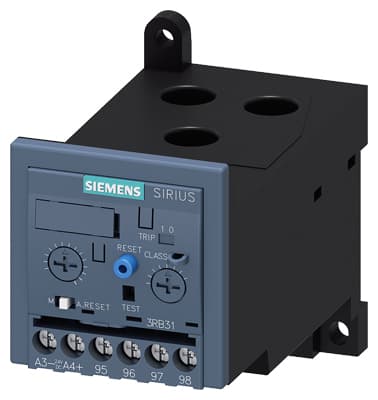

Overload relay 12.5...50 A Electronic For motor protection Size S2, Class 5E...30E Stand-alone insta
رقم القطعة: 3RB3133-4UW1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Overload relay 12.5...50 A Electronic For motor protection Size S2, Class 5E...30E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Screw Manual-Automatic-Reset Internal ground fault detection
المواصفات
| MLFB | 3RB3133-4UW1 |
|---|---|
| EAN | 4011209936584 |
| UPC | 887621914721 |
| Product Family | SIRIUS 3RB electronic overload relays |
| Catalog Node Id | 10047452 |
| Overview Node Id | 10007509 |
| Product Group | 5350 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | Electronic overload relay 12.5..50 A |
| Classification eClass | 27-37-15-02 (9.1); 27-37-15-02 (9); 27-37-15-02 (8); 27-37-15-02 (7.1); 27-37-15-02 (6); 27-37-15-02 (16); 27-37-15-02 (14); 27-37-15-02 (12) |
| Classification ETIM | EC001080 (9); EC001080 (8); EC001080 (7); EC001080 (10) |
| Net Weight | 0,266 Kg |
| Package Dimensions | 123 x 121 x 65 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 3 Day/Days |
| Country Of Origin | Czech Republic |
| Returnable | Yes |
| Commodity Code | 85364900 |
| Export Control | AL : N / ECCN : EAR99 |
| WEEE2 Category | 5 |
| RoHS Conformity | Since: 15.10.14 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | Overload relay 12.5...50 A Electronic For motor protection Size S2, Class 5E...30E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Screw Manual-Automatic-Reset Internal ground fault detection |
| Description FR | Overload relay 12.5...50 A Electronic For motor protection Size S2, Class 5E...30E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Screw Manual-Automatic-Reset Internal ground fault detection |
| Description ES | Overload relay 12.5...50 A Electronic For motor protection Size S2, Class 5E...30E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Screw Manual-Automatic-Reset Internal ground fault detection |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3RB3133-4UW1&language=en&caller=SiePortal |
| Classification IDEA | 5365 (4) |
| Classification UNSPSC | 39-12-23-30 (15) |
