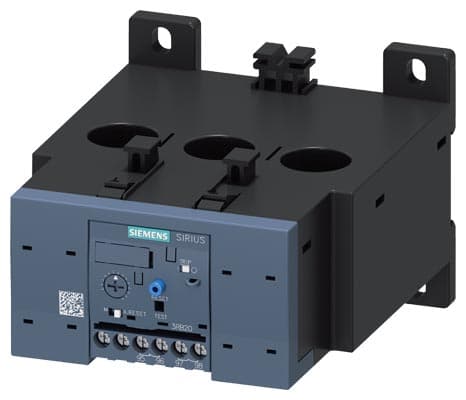

Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone ins
رقم القطعة: 3RB2056-1FW2
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: Screw terminal Manual-Automatic-Reset
المواصفات
| MLFB | 3RB2056-1FW2 |
|---|---|
| EAN | 4011209638297 |
| Product Family | SIRIUS 3RB electronic overload relays |
| Catalog Node Id | 10047452 |
| Overview Node Id | 10007509 |
| Product Group | 5808 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | OVERLOAD RELAY 50...200 A |
| Classification eClass | 27-37-15-02 (9.1); 27-37-15-02 (9); 27-37-15-02 (8); 27-37-15-02 (7.1); 27-37-15-02 (6); 27-37-15-02 (16); 27-37-15-02 (14); 27-37-15-02 (12) |
| Classification ETIM | EC001080 (9); EC001080 (8); EC001080 (7); EC001080 (10) |
| Net Weight | 0,5709 Kg |
| Package Dimensions | 147 x 135 x 175 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 3 Day/Days |
| Country Of Origin | Germany |
| Returnable | Yes |
| Commodity Code | 85364900 |
| Export Control | AL : N / ECCN : N |
| WEEE2 Category | 5 |
| RoHS Conformity | Since: 01.07.06 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: Screw terminal Manual-Automatic-Reset |
| Description FR | Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: Screw terminal Manual-Automatic-Reset |
| Description ES | Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: Screw terminal Manual-Automatic-Reset |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3RB2056-1FW2&language=en&caller=SiePortal |
| Classification IDEA | 5365 (4) |
| Classification UNSPSC | 39-12-23-30 (15) |
