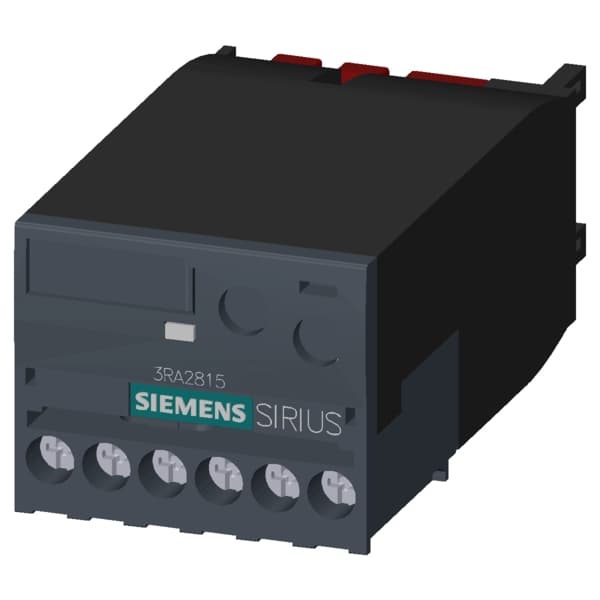

solid-state time-delayed auxiliary switch, off delayed, without control signal, relay: 1 CO, time ra
رقم القطعة: 3RA2815-1AW10
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
solid-state time-delayed auxiliary switch, off delayed, without control signal, relay: 1 CO, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, screw terminal, can be snapped onto the front on contactors 3RT20 and contactor relays 3RH2
المواصفات
| MLFB | 3RA2815-1AW10 |
|---|---|
| EAN | 4011209789951 |
| Product Family | Delayed |
| Catalog Node Id | 10049984 |
| Overview Node Id | 10007509 |
| Product Group | 5347 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | AUX SWITCH OFF-DELAY UC24-240V 0.05-100S |
| Classification eClass | 27-37-13-08 (9.1); 27-37-13-08 (9); 27-37-13-08 (8); 27-37-13-08 (7.1); 27-37-13-08 (6); 27-37-13-08 (16); 27-37-13-08 (14); 27-37-13-08 (12) |
| Classification ETIM | EC002060 (9); EC002060 (8); EC002060 (7); EC002060 (10) |
| Net Weight | 0,09438 Kg |
| Package Dimensions | 107 x 52 x 46 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 3 Day/Days |
| Country Of Origin | Czech Republic |
| Returnable | Yes |
| Commodity Code | 85364900 |
| Export Control | AL : N / ECCN : N |
| WEEE2 Category | 5 |
| RoHS Conformity | Since: 01.10.09 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | solid-state time-delayed auxiliary switch, off delayed, without control signal, relay: 1 CO, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, screw terminal, can be snapped onto the front on contactors 3RT20 and contactor relays 3RH2 |
| Description FR | solid-state time-delayed auxiliary switch, off delayed, without control signal, relay: 1 CO, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, screw terminal, can be snapped onto the front on contactors 3RT20 and contactor relays 3RH2 |
| Description ES | solid-state time-delayed auxiliary switch, off delayed, without control signal, relay: 1 CO, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, screw terminal, can be snapped onto the front on contactors 3RT20 and contactor relays 3RH2 |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3RA2815-1AW10&language=en&caller=SiePortal |
| Classification IDEA | 5363 (4) |
| Classification UNSPSC | 39-12-23-29 (15) |
