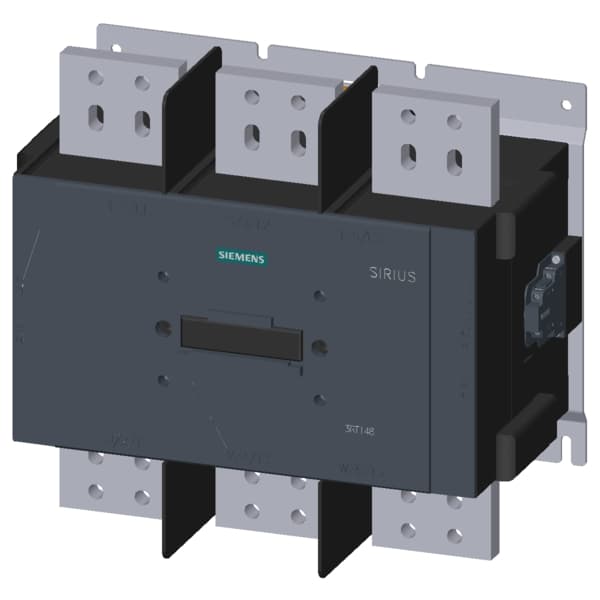

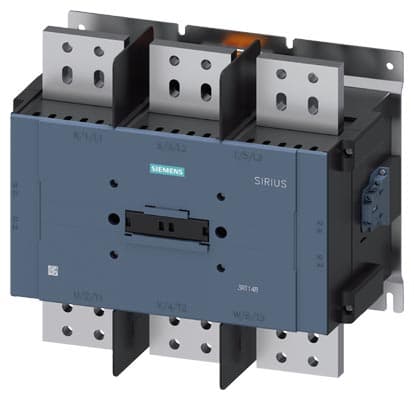

power contactor AC-1 2650 A / 690 V / 40 °C 3-pole, Uc: 100-240 V AC(50-60 Hz) / 100-220 V DC, drive
رقم القطعة: 3RT1487-6AP36
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
power contactor AC-1 2650 A / 690 V / 40 °C 3-pole, Uc: 100-240 V AC(50-60 Hz) / 100-220 V DC, drive: conventional auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal
المواصفات
| MLFB | 3RT1487-6AP36 |
|---|---|
| EAN | 4047621054780 |
| UPC | 195125049543 |
| Product Family | SIRIUS 3RT.4 contactors for weak or non-inductive loads (AC-1), 3-pole up to 2 650 A |
| Catalog Node Id | 10313988 |
| Overview Node Id | 10007509 |
| Product Group | 2234 |
| Group Classification Key | R711 |
| Product Class | Straightforward, can be reused over the short term |
| Material Short Text | Contactor, 2650A/AC-1 |
| Classification eClass | 27-37-10-03 (9.1); 27-37-10-03 (9); 27-37-10-03 (8); 27-37-10-03 (7.1); 27-37-10-03 (6); 27-37-10-03 (16); 27-37-10-03 (14); 27-37-10-03 (12) |
| Classification ETIM | EC000066 (9); EC000066 (8); EC000066 (7); EC000066 (10) |
| Net Weight | 53,12 Kg |
| Package Dimensions | 510 x 460 x 320 MM |
| Standard Package Quantity | 1 Piece |
| Minimum Order Quantity | 1 |
| Delivery Time | 35 Day/Days |
| Country Of Origin | Republic of Korea |
| Returnable | Yes |
| Commodity Code | 85364900 |
| Export Control | AL : N / ECCN : EAR99 |
| WEEE2 Category | - |
| RoHS Conformity | Since: 15.05.19 |
| Lifecycle Milestone | P.M300 |
| Phased Out Since | 0001-01-01T00:00:00 |
| Available In Catalog | Yes |
| Saleable | Yes |
| Description DE | power contactor AC-1 2650 A / 690 V / 40 °C 3-pole, Uc: 100-240 V AC(50-60 Hz) / 100-220 V DC, drive: conventional auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal |
| Description FR | power contactor AC-1 2650 A / 690 V / 40 °C 3-pole, Uc: 100-240 V AC(50-60 Hz) / 100-220 V DC, drive: conventional auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal |
| Description ES | power contactor AC-1 2650 A / 690 V / 40 °C 3-pole, Uc: 100-240 V AC(50-60 Hz) / 100-220 V DC, drive: conventional auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal |
| Datasheet URL | https://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3RT1487-6AP36&language=en&caller=SiePortal |
| Classification IDEA | 4755 (4) |
| Classification UNSPSC | 39-12-15-29 (15) |
