Basic switch for position switch 3SE5112 Metal enclosure 56 mm 3x (M20x 1.5) 2 NO/1 NC slow-action c

Siemens

Basic switch for position switch 3SE5112 Metal enclosure 56 mm 3x (M20x 1.5) 2 NO/1 NC slow-action c

رقم القطعة: 3SE5122-0PA00

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

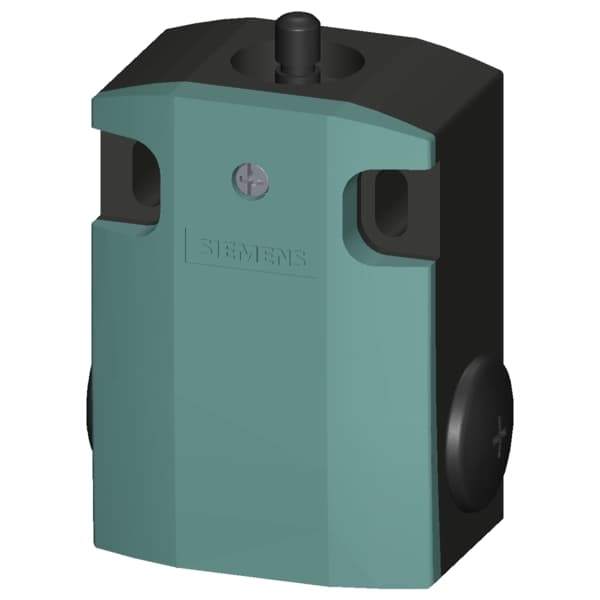

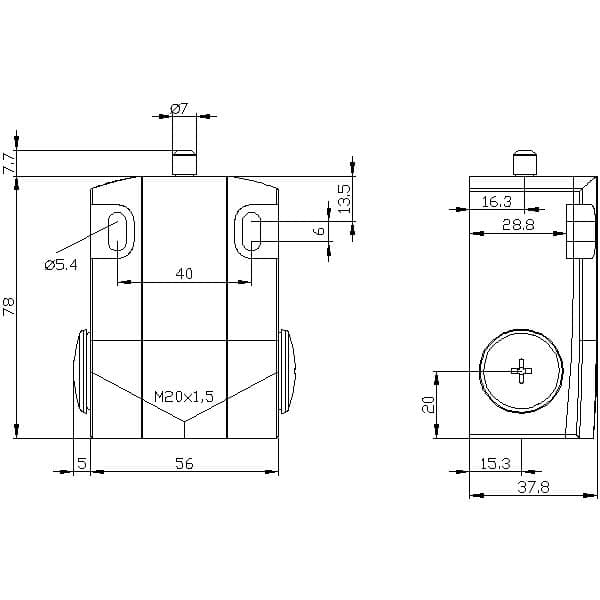

Basic switch for position switch 3SE5112 Metal enclosure 56 mm 3x (M20x 1.5) 2 NO/1 NC slow-action contacts without actuator head

المواصفات

MLFB3SE5122-0PA00
EAN4011209856387
Product FamilyEnclosure width 56 mm
Catalog Node Id10037482
Overview Node Id10007509
Product Group5317
Group Classification KeyR711
Product ClassStraightforward, can be reused over the short term
Material Short TextBASIC SWITCH FOR
Classification eClass27-27-06-01 (9.1); 27-27-06-01 (9); 27-27-06-01 (8); 27-27-06-01 (7.1); 27-27-06-01 (6); 27-27-06-01 (16); 27-27-06-01 (14); 27-27-06-01 (12)
Classification ETIMEC000030 (9); EC000030 (8); EC000030 (7); EC000030 (10)
Net Weight0,352 Kg
Package Dimensions67 x 43 x 118 MM
Standard Package Quantity1 Piece
Minimum Order Quantity1
Delivery Time3 Day/Days
Country Of OriginGermany
ReturnableYes
Commodity Code85365080
Export ControlAL : N / ECCN : N
WEEE2 Category5
RoHS ConformitySince: 01.07.06
Lifecycle MilestoneP.M300
Phased Out Since0001-01-01T00:00:00Z
Available In CatalogYes
SaleableYes
Description DEBasic switch for position switch 3SE5112 Metal enclosure 56 mm 3x (M20x 1.5) 2 NO/1 NC slow-action contacts without actuator head
Description FRBasic switch for position switch 3SE5112 Metal enclosure 56 mm 3x (M20x 1.5) 2 NO/1 NC slow-action contacts without actuator head
Description ESBasic switch for position switch 3SE5112 Metal enclosure 56 mm 3x (M20x 1.5) 2 NO/1 NC slow-action contacts without actuator head
Datasheet URLhttps://mall.industry.siemens.com/teddatasheet/?format=PDF&mlfbs=3SE5122-0PA00&language=en&caller=SiePortal
Classification IDEA5202 (4)
Classification UNSPSC39-12-22-13 (15)
