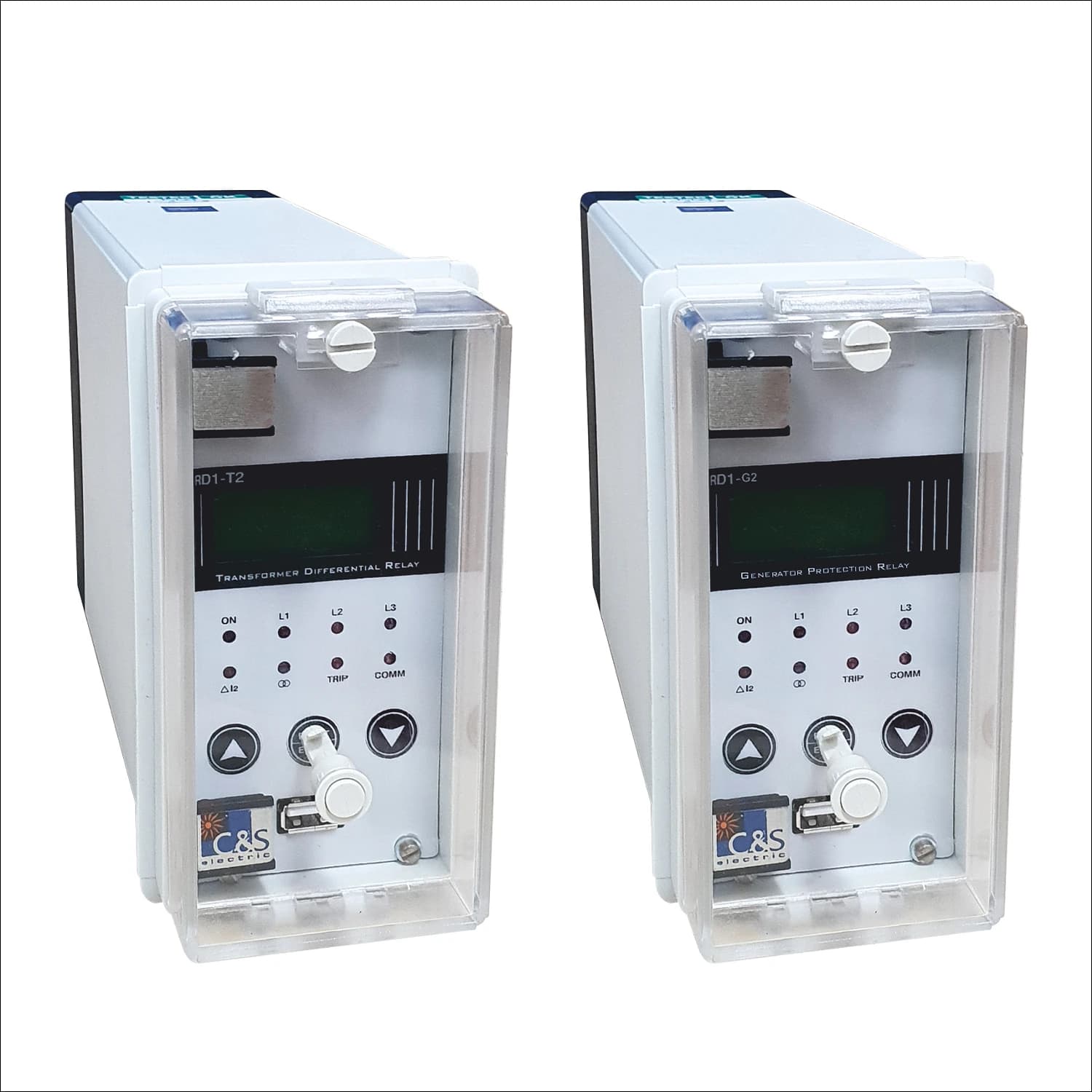

Numerical Transformer Differential Relay : IRD1-T2-G2
رقم القطعة: CS-IRD1-T2-G2-TRANSFORMER-DIFFERENTIAL-PROTECTION-RELAY
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Numerical Transformer Differential Relay : IRD1-T2-G2
المواصفات
| Feature 1 | Numerical Relay |
|---|---|
| Feature 2 | Very low CT burden |
| Feature 3 | Built in provision for CT ratio and phase angle corrections without external imposing of CTs |
| Feature 4 | Dual slope characteristics |
| Feature 5 | Stabilization against Inrush |
| Feature 6 | Prevention of nuisance tripping during transient CT saturation |
| Feature 7 | Stabilization against transient over fluxing |
| Feature 8 | High set tripping threshold |
| Source URL | https://cselectric.co.in/products-solutions/protectionandmeasurementdevices/transformer-protection/ird1-t2-g2-transformer-differential-protection-relay/ |
| C&S Taxonomy Path | products-solutions > protectionandmeasurementdevices > transformer-protection > ird1-t2-g2-transformer-differential-protection-relay |
| C&S Category | protectionandmeasurementdevices |
| Datasheet URL | https://cselectric.co.in/wp-content/uploads/2025/10/IRD1-T2-G2-Catalog.pdf |
| Presentation | The Transformer Differential Numeric Relay type IRD1T2-WG is built around a powerful 32-bit Digital Signal Processor. It provides fast and selective tripping for two winding transformers. It quickly discriminates between faults that occur in the protected zone and those occurring outside this zone and thus provides selective and fast tripping. The faults within protected zone are short circuit between turns, windings and cables and earth faults inside transformer housing and protected zone. IRD1T2-WG discriminates between above internal faults and the operational conditions like inrush, over-fluxing and faults external to protected zone using numerical algorithms. |
| Benefits | A transformer protection relay offers important benefits by detecting faults and abnormal conditions, preventing damage to transformers, extending their lifespan and ensuring the safety and stability of the system. They reduce costly downtime by enabling quick fault isolation, save on repair and replacement expenses and help meet regulatory compliance requirements for electrical reliability. They also contribute to the integrity of the overall power system by providing vital data for maintenance. |
| Download Brochure | Download Brochure <!-- |
| Feature 9 | Universal auxiliary supply |
| Feature 10 | Galvanic isolation between independent inputs |
| Feature 11 | Wide setting range |
| Feature 12 | Presentation |
| Feature 13 | Benefits |
| Feature 14 | Contact Our Experts |
| Feature 15 | Download Brochure |
| Summary | C&S Electric numerical transformer differential relay provides fast and selective tripping for internal and external faults in 2 winding transformers |
| C&S Subcategory | transformer-protection |
| Numerical Transformer Differential Relay : IRD1-T2-G2 | FEATURES Numerical Relay Very low CT burden Built in provision for CT ratio and phase angle corrections without external imposing of CTs Dual slope characteristics Stabilization against Inrush Prevention of nuisance tripping during transient CT saturation Stabilization against transient over fluxing High set tripping threshold Universal auxiliary supply Galvanic isolation between independent inputs Wide setting range Presentation Benefits Contact Our Experts Download Brochure The Transformer Differential Numeric Relay type IRD1T2-WG is built around a powerful 32-bit Digital Signal Processor. It provides fast and selective tripping for two winding transformers. It quickly discriminates between faults that occur in the protected zone and those occurring outside this zone and thus provides selective and fast tripping. The faults within protected zone are short circuit between turns, windings and cables and earth faults inside transformer housing and protected zone. IRD1T2-WG discriminates between above internal faults and the operational conditions like inrush, over-fluxing and faults external to protected zone using numerical algorithms. A transformer protection relay offers important benefits by detecting faults and abnormal conditions, preventing damage to transformers, extending their lifespan and ensuring the safety and stability of the system. They reduce costly downtime by enabling quick fault isolation, save on repair and replacement expenses and help meet regulatory compliance requirements for electrical reliability. They also contribute to the integrity of the overall power system by providing vital data for maintenance. < |
