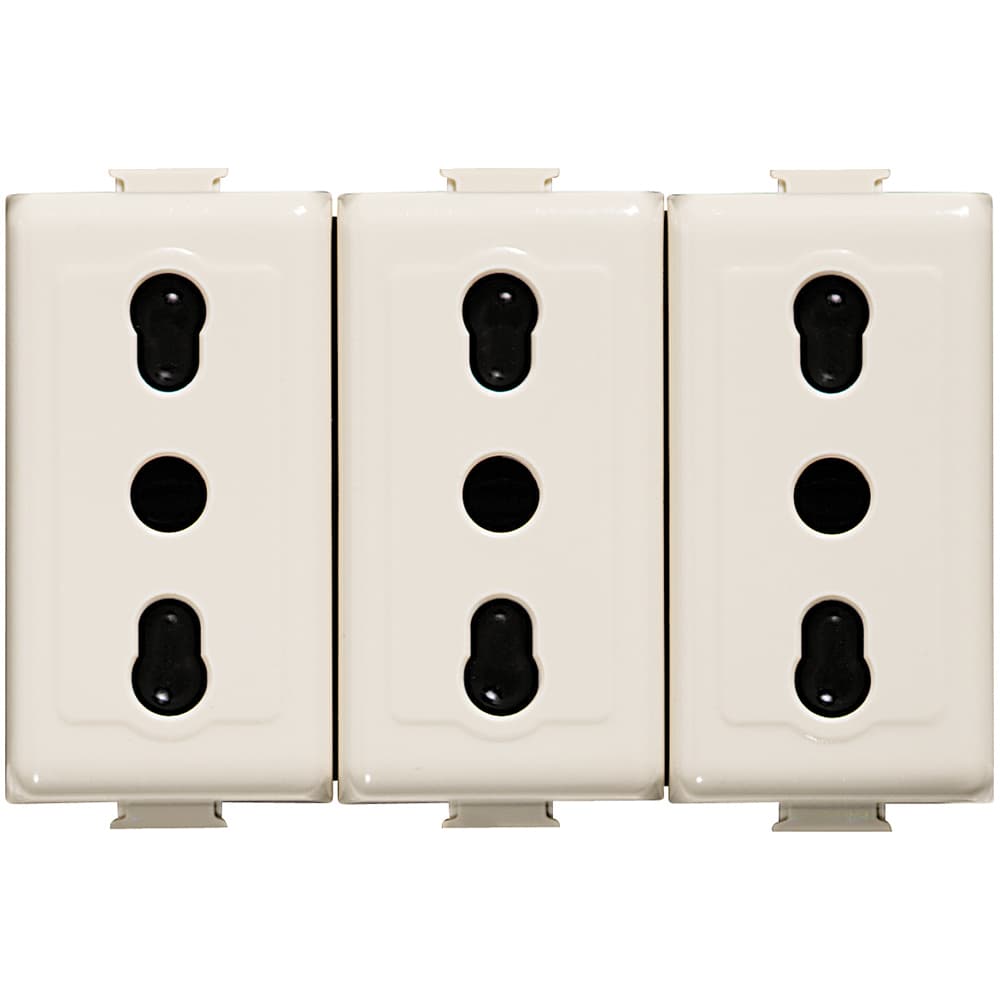

Socket triplex 2P+T 10/16A centre distance 19 and 26 mm
رقم القطعة: BT-A5180/3
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Socket triplex 2P+T 10/16A centre distance 19 and 26 mm
المواصفات
| Built-in depth | 30.9 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | White |
| degree of impact strength (IK) | IK00 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -5-35 °C |
| Voltage type | AC |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable nature for connection | Flexible or rigid |
| Cable section (Min-Max) | 2.5-2.5 mm² |
| Label space/information surface | No |
| With complemantary luminous signal | No |
| Connected object | No |
| Source URL | https://www.bticino.com/products/bt-a5180-3 |
| Part Number | A5180/3 |
| BTicino Category | Ivory Italian standard sockets with screw terminals |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Matix spare parts > Ivory colour devices > Ivory Italian standard sockets with screw terminals |
| BTicino Series | Matix |
| Obsolete | No |
| New | No |
| Nominal current | 16 A |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Transparent | No |
| With hinged lid | No |
| Type of fastening | Snap mounting (engagement) |
| Model | Italian type Bipasso |
| With on/off switch | No |
| Overvoltage protection | No |
| Nominal voltage | 250 V |
| Connection type | Screwed terminal |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| RAL-number (similar) | 9001 |
| Cable support | Other |
| Assembly arrangement | Basic element with central cover plate |
| Number of modules (module system) | 3 |
| Colour of switch operator | White |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70.7 mm |
| Device height | 47 mm |
| Device depth | 38.9 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Imprint/indication | None |
| Concurrently switching neutral conductor | No |
| Protective contact | Round |
| Number of active contacts (round) | 12 |
| Number of active contacts (flat) | 0 |
| Number of active contacts (square) | 0 |
| Number of socket outlets | 3 |
| Number of socket outlets switchable | 0 |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| Metallic colour | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | None |
| With loop through function | Yes |
| Rotated central insert | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| Power Delivery | No |
| For heavy conditions according to VDE | No |
