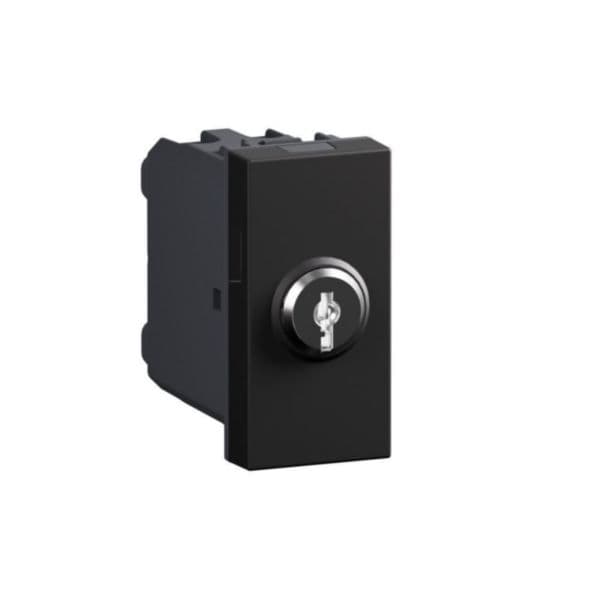

Switch with key. 1-way switch 2P 16 AX - 250 Va.c.
رقم القطعة: BT-JB4012OFF
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Switch with key. 1-way switch 2P 16 AX - 250 Va.c.
المواصفات
| Built-in depth | 34 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Black |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Voltage type | AC |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Source URL | https://www.bticino.com/products/bt-jb4012off |
| Part Number | JB4012OFF |
| BTicino Category | Switches with key and two-pole switches |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > MatixGO standard range > Other control devices > Switches with key and two-pole switches |
| BTicino Series | MatixGO |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/IDP002087_01-EN.pdf |
| Antimicrobial treatment | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Type of fastening | Engage (snap) |
| Nominal voltage | 250 V |
| Terminal marking indication | No |
| Connection type | Screwed terminal |
| Terminals capacity (Min-Max) | 1.5-2.5 mm² |
| RAL-number (similar) | 9011 |
| Assembly arrangement | Modular device for domestic switching devices |
| Number of modules (module system) | 1 |
| Tube diameter for wall mounted product (Min-Max) | 1.5-2.5 mm |
| Wiring system | Switch 2-pole |
| Method of operation | Key |
| Push button switch | Yes |
| Number of rockers | 2 |
| With mounting plate | No |
| Colour of switch operator | Black |
| Lighting | No |
| Function lighting | Other |
| Suitable for degree of protection (IP) | IP20 |
| Rated current | 16 A |
| Switching current for fluorescent lamps | 16 AX |
| Monitoring contact | No |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device depth | 44 mm |
| Min. depth of built-in installation box | 44 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Mandatory neutral | No |
| Imprint/indication | Other |
| Compliant with UK Building Regulations Part M | No |
