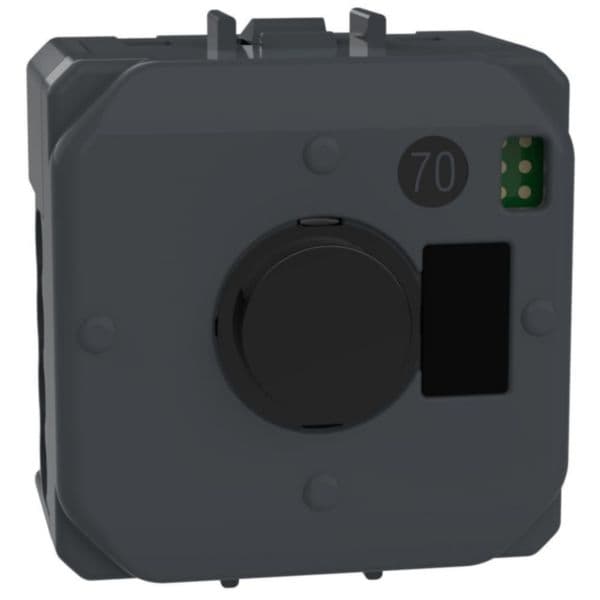

Touchless switch for doors, electric and electromagnetic door locks
رقم القطعة: BT-K4005TL
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Touchless switch for doors, electric and electromagnetic door locks
المواصفات
| Built-in depth | 33 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Black |
| Degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Voltage type | AC |
| Nominal voltage (Min-Max) | 230-230 V |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Horizontal fixing center distance (Min-Max) | 3.5-3.7 mm |
| Source URL | https://www.bticino.com/products/bt-k4005tl |
| Part Number | K4005TL |
| BTicino Category | IR switches |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Living Now premium range > IR switches |
| BTicino Series | Living NOW |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/IDP001902_01-EN.pdf |
| Antimicrobial treatment | No |
| Width | 40 mm |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Transparent | No |
| Model | Other |
| Depth | 43 mm |
| Height | 40 mm |
| Suitable for ceiling mounting | No |
| Terminal marking indication | No |
| Connection type | Screwed terminal |
| Terminals capacity (Min-Max) | 1-1.5 mm² |
| RAL-number (similar) | 9011 |
| Built-in width | 40 mm |
| Entry membrane gland type | Flexible to cut |
| Min. depth of built-in installation box | 43 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Ambient temperature (Min-Max) | 5-40 °C |
| Connection cable length | 0 mm |
| Suitable for wall mounting | No |
| Suitable for C-load | No |
| Mandatory neutral | Yes |
| Substation input | No |
| Creep-under protection | No |
| Background monitoring | No |
| Animal zone | No |
| Staircase light controller | No |
| Response value luminosity adjustable | No |
| Teach-function for response value luminosity | No |
| Optimum mounting height | 1.2 m |
| With connection cable | No |
| Constant light control | Yes |
| HVAC-control | No |
| Forced switch off | No |
| Networkable | Yes |
| Bridging switch | Yes |
| Suitable for wireless transmission | No |
| Remote operation | No |
| Supplied remote control | No |
| With signal unit | No |
| Dim function with dimmer basic element | No |
| With alarm function | No |
| With acoustic sensor | No |
| Movement sensor/presence detector technology | Other |
| Auto switch | No |
| Response value sensitivity adjustable | Yes |
| With DALI interface | No |
| Max. starting current | 2 A |
| Built-in length | 40 mm |
| Number of switching zones | 0 |
| Forced switch on | No |
| Min. starting current | 0.5 A |
