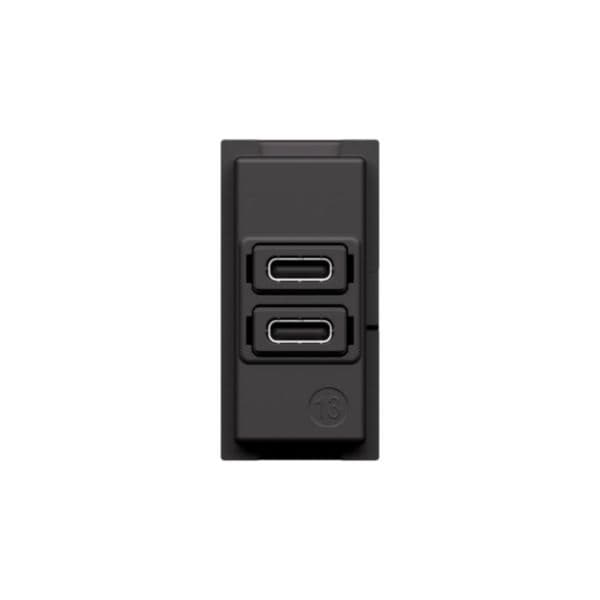

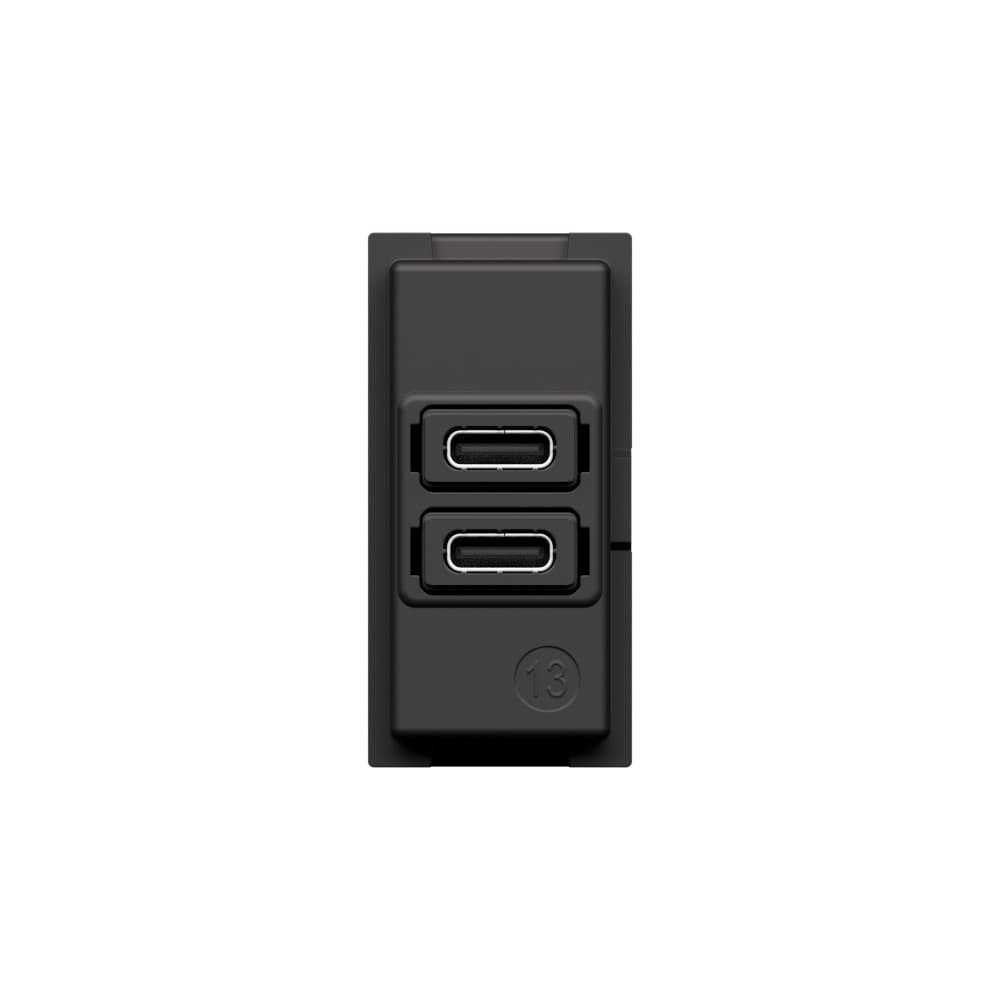

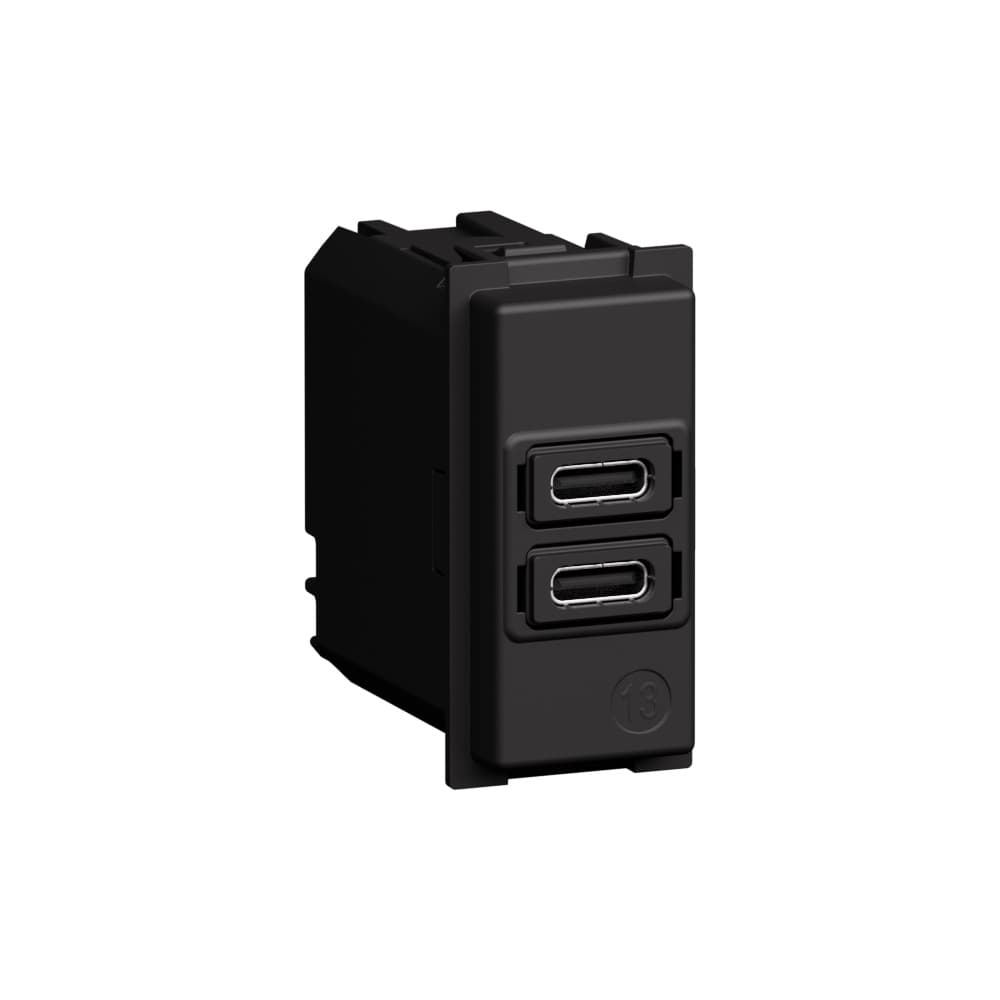

USB charger with 2 type C - 20W
رقم القطعة: BT-K4192CC
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
USB charger with 2 type C - 20W
المواصفات
| Built-in depth | 33 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Black |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature (Min-Max) | -5-35 °C |
| Storage temperature (Min-Max) | -10-70 °C |
| Voltage type | AC |
| Supply current (Min-Max) | 0.5-0.5 A |
| Frequency (Min-Max) | 50-60 Hz |
| Halogen free | Yes |
| Cable nature for connection | Flexible or rigid |
| Cable section (Min-Max) | 1.5-2.5 mm² |
| Source URL | https://www.bticino.com/products/bt-k4192cc |
| Part Number | K4192CC |
| BTicino Category | USB chargers and USB chargers with sockets |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Living Now premium range > USB chargers and USB chargers with sockets |
| BTicino Series | Living NOW |
| Obsolete | No |
| New | Yes |
| Antimicrobial treatment | No |
| Model | Other |
| Terminal marking indication | Yes |
| RAL-number | 7015 |
| Connection type | Screwed terminal |
| Terminals capacity (Min-Max) | 1.5-2.5 mm² |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 1 |
| Number of modules (module system) | 1 |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 22 mm |
| Device height | 45 mm |
| Device depth | 41 mm |
| Min. depth of built-in installation box | 40 mm |
| Power consumption | 0.048 W |
| Wireless | No |
| Operating voltage (Min-Max) | 100-240 V |
| Number of terminals | 2 |
| Mandatory neutral | Yes |
| Stress test conformity (1000V) | No |
| Max. output current | 3000 mA |
| Power Delivery | Yes |
| Output voltage (Min-Max) | 5-12 V |
| USB Output Power | 20 |
